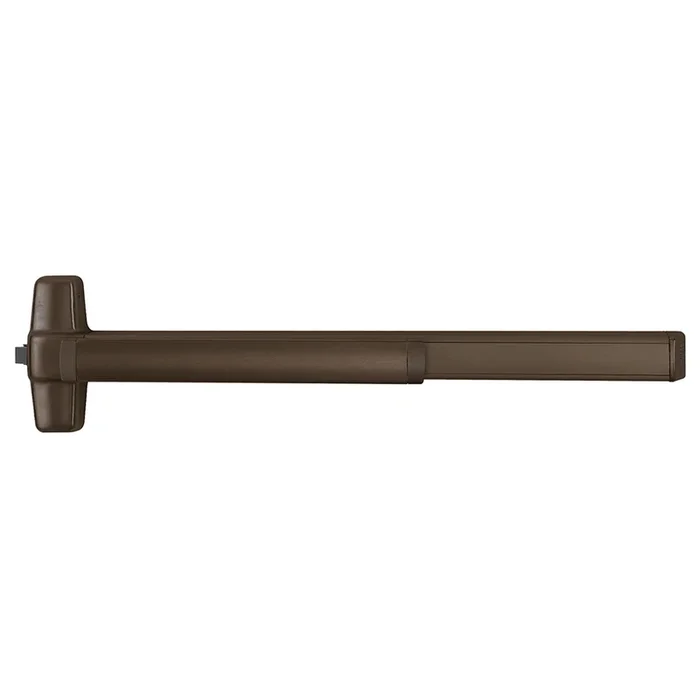

Von Duprin QEL98L-17 3 US10B RHR Grade 1 Rim Exit Device 613

Von Duprin QEL98L-17 3 US10B RHR Grade 1 Rim Exit Device 613 is engineered for maximum security and durability, making it an ideal choice for high-traffic environments such as schools, hospitals, and government buildings. This Grade 1 rim exit device features a robust 36-inch length with motorized latch retraction, allowing for smooth and efficient operation. The device is designed with a classroom function and is less dogging, providing enhanced security while maintaining ease of access. Constructed from high-quality materials, the QEL98L-17 is finished in a dark oxidized satin bronze, ensuring both aesthetic appeal and resistance to wear. Its right-hand reverse handing makes installation straightforward, accommodating door sizes from 28 inches to 36 inches wide and door thicknesses ranging from 1-3/4 inches to 2-1/4 inches.The device features ANSI A156.3-2014 certification, ensuring compliance with industry standards. With deadlocking latch bolts offering a 3/4-inch throw, this exit device guarantees reliable performance. Furthermore, it comes with a screw pack for easy installation on both metal and wood doors. Choose the Von Duprin QEL98L-17 for a dependable, high-performance exit solution that prioritizes safety and accessibility.

Grade 1 Rim Exit Device 613

Grade 1 Rim Exit Device, 36″, Classroom, Less Dogging, Motorized Latch Retraction, 17 Lever, 1-1/4″ Mortise & Rim, Dark Oxidized Satin Bronze Oil Rubbed Finish, Right-Hand Reverse

98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1

Heavy-duty high-performance exit devices with many customizable options.

Von Duprin’s 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.

Specifications:

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking, 3/4″ (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3 2014

Baa Qualified: Yes

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: 1-1/4″ Mortise & Rim

Device Length: 36″

Device Type: Rim

Dogging Options: Less Dogging

Door Material: Wood or Metal

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 28″ to 36″

Electric Options: Motorized Latch Retraction

Finish: 613/US10B

Finish Family: Dark Bronze

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Right-Hand Reverse

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 1 Year

Mechanical Function: Classroom

Minimum Stile Size: 4-1/2″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 37″

Pack Length 2: 41″

Pack Qty: 1

Pack Volume: 1942.5 in³

Pack Volume 2: 7708 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Product Height: 8″

Product Length: 33″

Product Width: 3.75″

Reversible: Yes

Series: 98 Series Rim Exit Device

Ship Weight: 19 lbs.

Strike Standard: 299

Subtype: Rim Exit Devices

Trim Design: Lever with Escutcheon

Trim Part No: 996L-17-R/V US10B RHR

Trim Type: Lever

Type: Exit Devices

Ul Listing: UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
