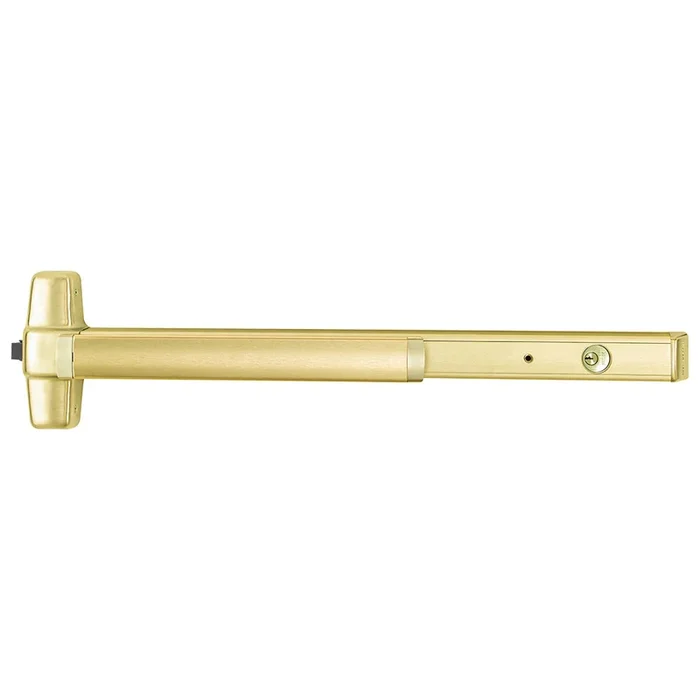

Grade 1 Rim Exit Device 606 – Von Duprin Delayed Egress Solution

Description

Von Duprin CXA98EO 3 4 Grade 1 Rim Exit Device 606

Von Duprin CXA98EO 3 4 Grade 1 Rim Exit Device 606 offers a robust solution for emergency egress needs with its Grade 1 Delayed Egress functionality. Designed for exit-only applications, this heavy-duty exit device features a sleek satin brass finish that seamlessly integrates with various door materials, including wood and metal. Measuring 36 inches in length, it is suitable for doors ranging from 28 to 36 inches wide. This model is part of the renowned 98 Series, known for its wide stile, high-performance push pads that cater to demanding environments such as schools, hospitals, and government buildings. The device is UL listed and meets ANSI A156.3 standards, ensuring reliability and safety. The CXA98EO is designed for non-handed installation and includes field-selectable functions for versatile usability. Its deadlocking latch bolt offers a secure 3/4-inch throw, while the device’s center case dimensions of 8″ x 2 3/4″ x 2 3/8″ ensure compatibility with a variety of door setups. This model is also reversible and ships with a comprehensive screw pack for easy installation. With a limited one-year warranty, the Von Duprin CXA98EO delivers both quality and peace of mind, making it an ideal choice for commercial settings.

Grade 1 Rim Exit Device 606

Grade 1 Delayed Egress Exit Device, 36″ Length, Exit Only, Less Dogging, Delayed Egress, Satin Brass Finish, Non-Handed

98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 _ 2008 Grade 1

Heavy-duty high-performance exit devices with many customizable options.

Von Duprin’s 98 Series Exit Devices are wide stile, heavy-duty push pads. They are certified to the maximum industry standards and ideal for use in schools, hospitals and government buildings.

Specifications:

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
• Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking, 3/4″ (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3 2014

Baa Qualified: Yes

Commercial Residential: Commercial

Country of origin: USA

Device Length: 36″

Device Type: Rim

Dogging Options: Less Dogging

Door Material: Wood or Metal

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 28″ to 36″

Electric Options: Delayed Egress

Finish: 606/US4

Finish Family: Matte Brass

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Non-Handed

Includes Trim: No

Installation: Commercial

Limited Warranty: 1 Year

Mechanical Function: Exit Only

Minimum Stile Size: 4-1/2″

Origin: USA

Pack Qty: 1

Physical Appearance: Wide Stile Pushpad

Reversible: Yes

Series: 98 Series Rim Exit Device

Strike Standard: 299

Subtype: Delayed Egress Exit Devices

Trim Design: Blank Plate

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
