Description

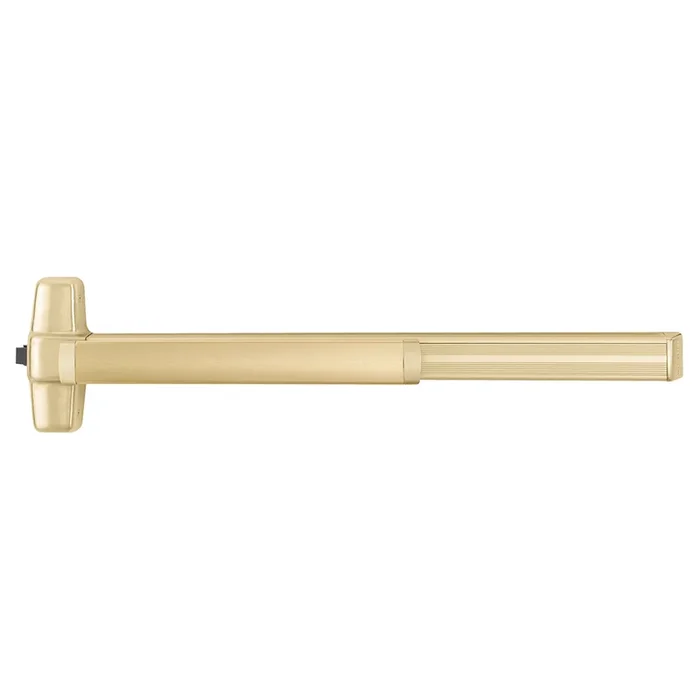

Von Duprin 99NL-F 3 US4 Grade 1 Rim Exit Device 606
Von Duprin 99NL-F 3 US4 Grade 1 Rim Exit Device 606 combines robust security with reliable functionality, making it an ideal choice for commercial applications. This Grade 1 rim exit device features a wide stile pushpad and a night latch function, ensuring easy access and secure locking for both single and double doors. With a device length of 36 inches, it is designed to fit door sizes ranging from 2’10” to 4′, accommodating various installations. Constructed with heavy-duty materials, the device’s grooved mechanism case enhances durability, while the satin brass finish (606) adds a touch of elegance to any entryway. It is UL listed for panic exit hardware, meeting ANSI A156.3 – 2008 standards, and is fire-rated, providing peace of mind in emergency situations. The non-handed design simplifies installation, allowing it to adapt seamlessly to any door orientation. The Von Duprin 99NL-F is equipped with a deadlocking latch bolt with a 3/4″ throw, ensuring secure closure. Additionally, it includes an escutcheon pull for added convenience. This exit device is backed by a 3-year limited warranty, reflecting Von Duprin’s commitment to quality and reliability. Upgrade your security with this dependable and stylish solution.
Grade 1 Rim Exit Device 606
Grade 1 Rim Exit Bar, Wide Stile Pushpad, 36″ Device, Night Latch Function, Escutcheon Pull, Less Dogging, Satin Brass Finish, Non-handed
98 and 99 Rim exit devices for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking, 3/4″ (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) and 2 1/4″ (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Rim
Device Length: 36″
Device Type: Rim
Dogging Options: Less Dogging
Door Material: Metal or Wood
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ – 36″
Finish: 606/US4
Finish Family: Matte Brass
Fire Rated: Yes
Fire Rating: Yes {Variable}
Grade: Grade 1
Handing: Non-handed
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: No
Series: 99 Series Rim Exit Device
Ship Weight: 14 lbs.
Strike Standard: 299F
Subtype: Rim Exit Devices
Trim Design: Escutcheon Pull
Trim Part No: 990NL-R/V US4
Trim Type: Pull
Type: Exit Devices
Ul Listing: UL 10C
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
