Grade 1 Rim Exit Bar US19 by Von Duprin – Reliable Security Solution

Description

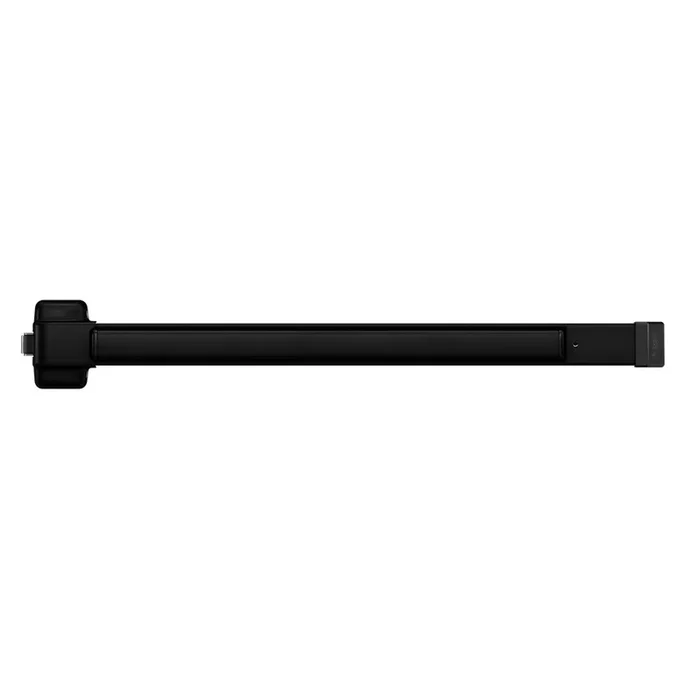

Von Duprin 22EO 3 622 Grade 1 Rim Exit Bar, US19 Finish

Von Duprin 22EO 3 622 Grade 1 Rim Exit Bar US19 is engineered for reliability and performance in commercial settings. This Grade 1 rim exit device features a wide stile pushpad, measuring 36 inches in length and designed for exit-only applications. It is compatible with various trim options, although it ships with less trim, making it adaptable to different door styles and configurations. This UL-listed device is perfect for both single and double doors with mullions, meeting ANSI A156.3, 2008 Grade 1 standards. The rim exit device fits door stiles as narrow as 3 13/16 inches (97 mm) and is non-handed, ensuring quick and easy installation regardless of door orientation. The deadlocking latch bolt features a 3/4-inch (19 mm) throw for enhanced security. With hex key dogging as a standard feature, the Von Duprin 22EO provides convenient operation, while the flat black coated finish offers a sleek look that complements modern architectural designs. This exit bar is suitable for metal or wood doors with a thickness of 1-3/4 inches to 2-1/4 inches, making it a versatile choice for various applications. For added functionality, consider options such as electric monitoring switches or accessible device kits to enhance your security solution.

Grade 1 Rim Exit Bar US19

Grade 1 Rim Exit Device, Wide Stile Pushpad, 36″, Exit Only, Accepts Various Trim, Less Trim, Hex Dogging, Flat Black Coated Finish, Non-Handed

22 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3, 2008 Grade 1. Covers stock hollow metal doors with 161* cutouts. Fits door stiles as narrow as 3 13/16″ (97 mm). The device is non-handed.

Rim exit device for all types of single and double doors with mullion.

Grade 1 Rim exit device for all types of single and double doors with mullion, UL listed for Panic Exit Hardware.

• Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
• Device lengths: 3′ (914 mm),4′ (1219 mm)
• Device centerline from finished floor: 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with mullion
• Center case dimensions: 4 1/4″ (108 mm) x 1 3/8″ (41 mm) x 2 3/8″ (60 mm)
• Mechanism case dimensions: 2″ (51 mm) x 3 3/4″ (95 mm)
• Projection push bar: Push bar neutral – 3 3/4″ (95 mm) push bar depressed – 3″ (76 mm)
• Latch bolt: Deadlocking, 3 /4″ (19 mm) throw
• Fasteners & sex bolts (SNB): Includes 1 3/4″ (44 mm) and 2 1/4″ (57 mm) wood & metal doors optional SNB available for device
• Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
• Mechanical options: GBK glass bead kit AX accessible device
• Dogging feature:Hex key dogging standard
• Dogging options: LD less dogging
• Strikes: 299 – Dull black

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3 2008

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: Metal or Wood

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 26-1/2″ to 36″

Finish: 622/US19

Finish B Base Material: 622/US19

Finish Family: Black

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Non-Handed

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Exit Only, Accepts Various Trim

Minimum Stile Size: 3-13/16″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 36.75″

Pack Length 2: 41″

Pack Qty: 1

Pack Volume: 1929.38 in³

Pack Volume 2: 7708 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Product Height: 4.25″

Product Length: 33.13″

Product Width: 3.75″

Restrictions: No

Reversible: Yes

Series: 22 Series Rim Exit Device

Ship Weight: 11 lbs.

Strike Standard: 299

Subtype: Rim Exit Devices

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3

Resources

• 22 Rim Exit Device Service Manual
• 22 Series Rim Exit Device Cut Sheet
• 22 Series Wood Door Template
• EL for Exit Devices Data Sheet
• Exit Device Fire Label Specifications
• Von Duprin 22 ALK Alarm Kit Installation Instructions
• Von Duprin 22 Rim Device Installation Instructions
• Von Duprin 22 Rim Device Installation Instructions (French)
• Von Duprin 22/98/99 Series Device with Active Trim Cylinder Tailpiece Guide Retrofit Installation Instructions
• Von Duprin Finishes Chart
