Grade 1 Privacy Lock with Indicator – Arrow Electrical Door Hardware

Description

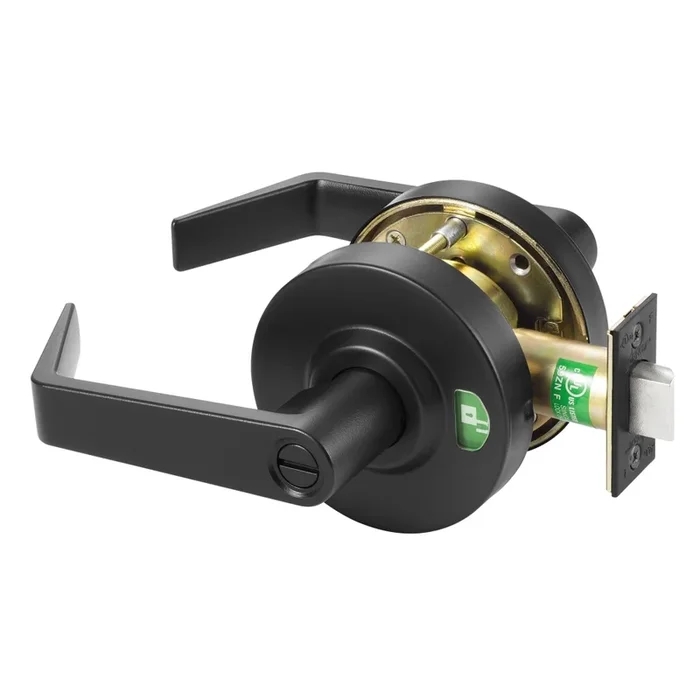

Arrow Lock APL02-ST-BSP Grade 1 Privacy Lock with Indicator

Arrow Lock APL02-ST-BSP Grade 1 Privacy with Indicator combines security and convenience in one sleek package. Designed for commercial use, this Grade 1 cylindrical lock features a non-keyed configuration, making it ideal for environments where enhanced privacy is essential. The lock’s status indicator visually communicates whether the door is locked or unlocked, alleviating the potential for awkward situations. With a robust black suede powder coat finish, the APL02-ST-BSP not only looks professional but is also built to withstand the rigors of daily use. The 3-1/2″ diameter rose and Sierra lever design offer a stylish yet functional aesthetic, while the adjustable latch accommodates backsets of 2-3/8″ and 2-3/4″. Designed for doors with a thickness between 1-3/8″ to 1-3/4″, it ensures a secure fit in various applications. This lock is ADA compliant and UL/cUL listed, ensuring safety and accessibility for all users. Additionally, it features a 3-hour fire rating, providing peace of mind in emergency situations. Backed by a 3-year limited warranty, the Arrow APL02-ST-BSP promises reliability and durability for your locking needs. Enjoy the blend of functionality and style that this privacy lock delivers.

Grade 1 Privacy with Indicator

Grade 1 Privacy Cylindrical Lock, Non-Keyed, Sierra, 3-1/2″ Diameter Rose, Indicator with Icons, Black Suede Powder Coat Finish, Non-Handed

Eliminate potentially embarrassing situations and provide peace of mind with the APL Series Grade 1 cylindrical lock with status indicator. With a visual display of the occupancy status, the indicator notifies individuals if the door is locked or unlocked, providing an increased level of privacy.

Attributes

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA A156.2, Series 4000

Application: Indicator with Icons

Bolt Projection: 1/2″

Bore Hole Diameter: 2-1/8″

Commercial Residential: Commercial

Cylinder Type: Non-Keyed

Door Thickness: 1-3/8″ – 1-3/4″

Finish: BSP

Finish Family: Black

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 02-Privacy

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Leverknob Design: ST – Sierra Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 3 Years

Pack Qty: 1

Projection: 2-5/8″

Roseescutcheon Design: 3-1/2″ Diameter Rose

Roseescutcheon Dimensions: 3-1/2″

Series: APL Series Grade 1 Indicator Locks

Std Latch Backset Dim: Adjustable 2-3/8″ and 2-3/4″

Std Latch Type: Spring Latch (Unguarded)

Std Strike Height: 4-7/8″

Std Strike Number: 306

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL Listed

Unit of Measure: Each

Resources

• APL Series Cut Sheet
• APL Series Installation Instructions
• APL Series Sell Sheet
• Video: APL Series Cylindrical Indicator Lock Installation
