Grade 1 Privacy Lock with Deadbolt – Schlage

Description

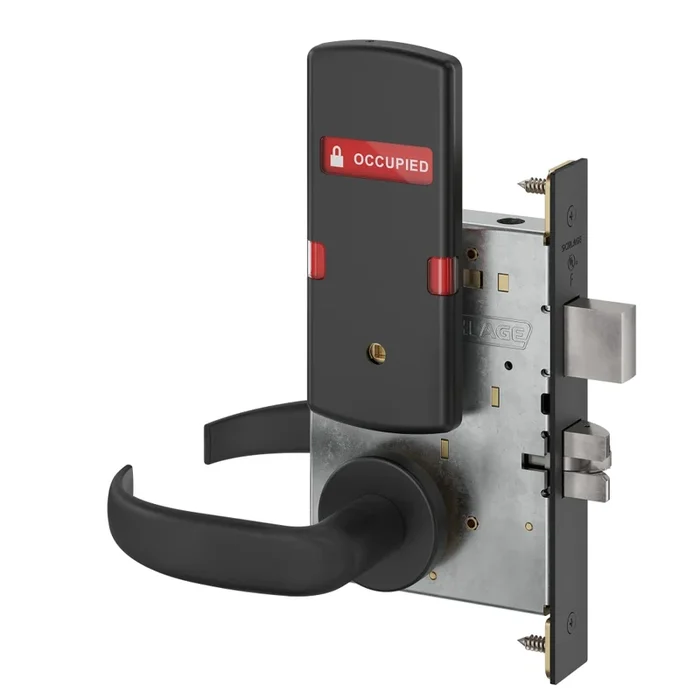

Schlage L9440 17A 622 OS-OCC Grade 1 Privacy Lock with Deadbolt

Schlage L9440 17A 622 OS-OCC Grade 1 Privacy W/Deadbolt offers exceptional security and durability for commercial applications. This Grade 1 mortise lock features a 17 lever design and an A rose, complemented by a flat black coated finish that adds a sleek touch to any door. The exterior indicator clearly displays “Vacant/Occupied,” making it ideal for restrooms, private offices, and other spaces requiring privacy. Engineered for heavy-duty use, the L9440 is constructed with an all-metal, heavy-gauge steel case to withstand constant wear and tear. Its robust design includes zinc dichromate-plated working parts and a two-piece anti-friction tongue, significantly reducing maintenance needs. Security is paramount; features such as a break-away spindle and a hub blocking plate prevent unauthorized access and allow for easy repairs. Designed for adaptability, this lock features a universal case accommodating ten functions, and its field-reversible handing allows for easy installation without opening the lock case. The locking thumb-turn indicates door status, while independent lever rotation enhances user convenience. With a fire rating of up to three hours and UL listing, the Schlage L9440 is the perfect solution for demanding environments like schools, hospitals, and factories, ensuring both safety and style.

Grade 1 Privacy W/Deadbolt

Grade 1 Privacy with Deadbolt Mortise Lock, 17 Lever, A Rose, Exterior Indicator Displays “Vacant/Occupied”, Flat Black Coated Finish, Field Reversible

Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.

Extra heavy duty mortise lock protected by all metal heavy-gauge steel.

Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.

Durability and Strength

• Heavy-gauge, fully wrapped steel case protects against door edge attacks
• All-metal zinc dichromate-plated working parts
• Electronic components protected by inside lock case
• Wear and tear reduced by two-piece anti-friction tongue
• Outside and inside trim thru-bolted together and through the door

Built-in Security

• Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
• Spindle manipulation discouraged by hub blocking plate
• Spring-loaded fusible link provides fail secure mode in case of fire
• Inside lever applied by screwless shank mounting – no exposed trim mount screws

Adaptable to your application

• Universal lock case featuring ten functions in one case
• Floating mounting tabs adjust to fit a beveled door edge
• Field-reversible handing without opening lock case
• Simple trim retrofit made possible by external spring cages
• Locking thumb-turn on the inside of door shows when the door is unlocked and locked
• Lever rotation in both directions for ease of use
• Independent lever rotation

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.13-2017 Series 1000, Grade 1

Ansi Function: F19 – Privacy/Bed/Bath

Application: Indicator with Text

Baa Qualified: Yes

Bolt Projection: 3/4″ Latch, 1″ Deadbolt

Commercial Residential: Commercial

Country of origin: Mexico

Door Thickness: 1-3/4″

Finish: 622/US19

Finish Family: Black

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9440-Privacy with Deadbolt

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Latch Bore Diameter: 2-3/4″

Leverknob Design: 17 Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 3 Years

Lock Face Size: 8″ x 1-1/4″

Origin: Mexico

Pack Height: 5.5″

Pack Length: 10.25″

Pack Qty: 1

Pack Volume: 295.97 in³

Pack Width: 5.25″

Projection: 3″

Roseescutcheon Design: A Rose

Roseescutcheon Dimensions: 2-1/8″

Series: L9000 Series Mortise Lock

Ship Weight: 6 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Type: Combination Latch and Bolt

Std Strike Height: 4-7/8″

Std Strike Number: 10-072 1316 622

Std Strike Type: ANSI Strike

Std Strike Width: 1-3/16″

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL Listed

Unit of Measure: Each

Resources

• L Series Mounting Plate Installation Instructions
• L400 Installation Instructions
• L9000 Indicator Handing Instructions
• L9000 Indicator Lever w/ Escutcheon Installation Instructions
• L9000 Indicator Lever w/ Sectional Installation Instructions
• L9000 Installation Instructions
• L9000 Knob Installation Instructions
• L9000 Series Mortise Lock Cut Sheet
• Schlage L Indicator Data Sheet
• Schlage L Series Parts Diagram
• Schlage L Series Service Manual
• Schlage L9000 Gen 2 Indicator Pricing Addendum
• Video: AL Lock Installation
• Von Duprin Finishes Chart
