Grade 1 Passage Latch by Sargent

Description

Sargent 8215 LNF 26D Manufacturing Mortise Lock

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability

Attributes

Ansi Function: F01 – Passage

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Bolt Projection: 3/4 In. Latch

Bolt Protection: 3/4 In. Latch

Country of Origin: Usa

Country of origin: USA

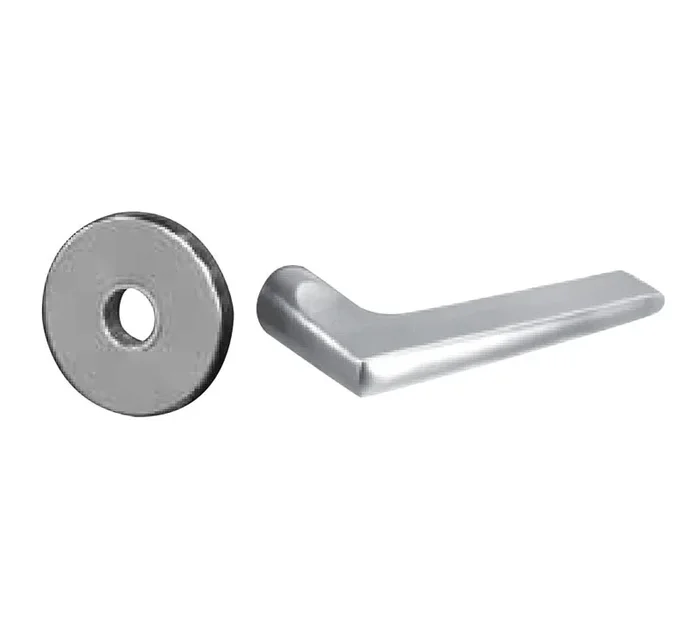

Design: F Lever and LN Rose

Door Thickness: 1-3/4 In.

Finish: 626/US26D

Finish : Satin Chrome

Fire Rated: 2 Hours {B}

Fire Rating: 2 Hours {B}

Function: 15-Passage or Closet

Grade: Grade 1

Hand: Field Reversible

Handing: Field Reversible

Latch Backset Dim: 2-3/4 In.

Latch Type: Spring Latch (Unguarded)

Lever Knob Design: F – Lever

Leverknob Design: F – Lever

Limited Warranty: 10 Years

Lock Face Size: 8 In. x 1-1/4 In.

Origin: USA

Pack Height: 4.38″

Pack Length: 9.25″

Pack Qty: 1

Pack Volume: 227.64 in³

Pack Width: 5.63″

Rose Escutcheon Design: LN – Rose

Roseescutcheon Design: LN – Rose

Screws: Combination

Series: 8200 Line Lever Mortise Locks

Ship Weight: 6.1 lbs.

Std Latch Backset Dim: 2-3/4 In.

Std Latch Type: Spring Latch (Unguarded)

Std Strike Height: 4-7/8 In.

Std Strike Number: 82-0110

Std Strike Type: ASA Strike

Std Strike Width: 1-1/4 In.

Strike: ASA Strike

Strike Height: 4-7/8 In.

Strike Number: 82-0110

Strike Type: ASA Strike

Strike Width: 1-1/4 In.

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each

Resources

• 2019 Sargent Price Book
• 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Locks Installation Instructions
• 7900/8200 Series Mortise Locks Installation Instructions
• 8200 Line Lever Mortise Locks Cut Sheet
• 8200 Mortise Sectional Indicator Trim Template
• Sargent 7800/8200 Series Mortise Locks Catalog
• Sargent 7800/8200 Series Mortise Locks Installation Manual
• Sargent 7800/8200 Series Mortise Locks Instruction Sheet
• Sargent 7900/8200 Series Mortise Locks Installation Manual
• Sargent 8200 Series Environmental Product Declaration (EPD)
• Sargent 8200 Series Environmental Product Declaration (EPD)
• Sargent 8200 Series Mortise Locks Sell Sheet
• Sargent 8200 Series Mortise Locks Sell Sheet
• Video: 8200 Series Mortise Lock Installation
