Grade 1 Narrow SVR Exit 711 by Von Duprin – Reliable Exit Device

Description

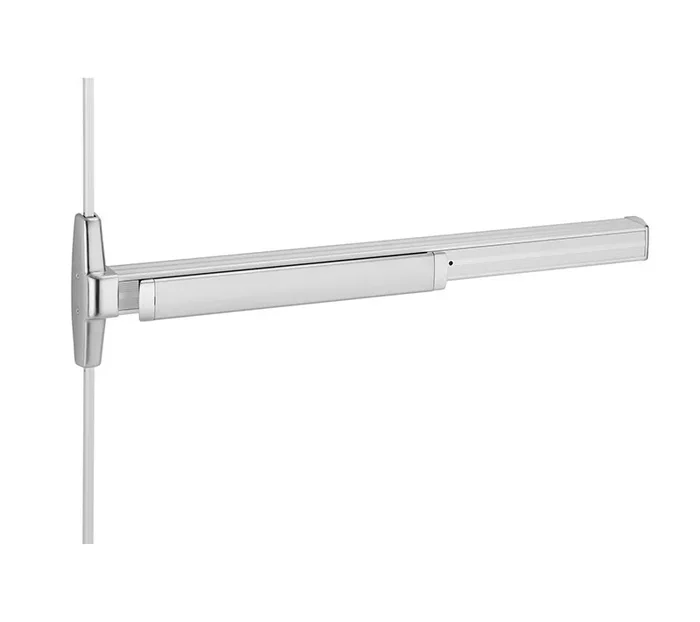

Von Duprin 3527AEO 3 315 Grade 1 Narrow SVR Exit Device 711

Von Duprin 3527AEO 3 315 Grade 1 Narrow SVR Exit 711 is a top-tier surface vertical rod exit device designed for maximum functionality and reliability. This Grade 1 exit device features a narrow stile pushpad and is suitable for both single and double doors, making it versatile for various applications. The exit-only function ensures quick egress while maintaining security, and the black anodized aluminum finish adds a sleek, professional look to any doorway. With dimensions tailored for standard door sizes, this device accommodates doors from 28″ to 36″ in width and up to 84″ in height. The non-handed design simplifies installation, while the hex key dogging feature enhances security and user access. The deadlocking anti-friction top and bottom bolts provide robust protection, ensuring safety during emergencies. This model is UL listed for panic exit hardware, meeting ANSI A156.3 – 2008 Grade 1 standards for durability and performance. The mechanism case boasts smooth construction with precise dimensions, and the vertical rods can be extended for doors exceeding 7 feet in height. Designed for commercial use, the Von Duprin 3527AEO combines practicality with durability, making it an excellent choice for professionals seeking reliable exit solutions.

Grade 1 Narrow SVR Exit 711

Grade 1 Surface Vertical Rod Exit Device, Narrow Stile Pushpad, 36″, Exit Only, Less Trim, Hex Key Dogging, Black Anodized Aluminum Finish, Non-Handed

3327A and 3527A for all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 ñ 2008 Grade 1. The 3527A has a smooth mechanism case and the 3327A has grooved case. The surface vertical rod device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

For all types of single and double doors, UL listed for panic exit hardware.

The surface vertical rod device is non-handed except when the SS (signal switch) option is used.

• Device lengths: 2′ 2′ (610 mm) Door size 3′ 2’4″ to 3′ (660mm to 914 mm) door size 4′ 2’8″ to 4′ (813 mm to 1219 mm) door size
• Device centerline from finished floor: 39 13/16″ (1006mm) Center case dimensions 8 13/16″ x 2 13/32″ x 1 9/16″ (208mm x 62mm x 40mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8″ (16mm) throw
• Door undercut: 1 /4″ (7mm)
• Top & bottom latch: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
• Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′(2134mm) door Top rod length is 34 15/16″ (887mm) Bottom rod length is 31 1/4″ (794mm) Extension rods available 1′ (205mm) or 3′ (914mm) for doors over 7′ One piece top rod available for 8′ (2438mm) -10′ (3048mm) door
• Fasteners & sex bolts (SNB): Includes 1 3/4″ (44mm) – 2 1/4″ (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device) #325 SNB furnished for top and bottom latches

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3 2008

Base Material: Aluminum

Commercial Residential: Commercial

Device Length: 36″

Device Type: Surface Vertical Rod

Dogging Options: Hex Key Dogging

Door Height: 84″

Door Material: Metal or Wood

Door Thickness: 1-3/4″

Door Width: 28″ to 36″

Finish: 315/335

Finish Family: Black

Fire Rated: No

Grade: Grade 1

Handing: Non-Handed

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Exit Only

Minimum Stile Size: 1-3/4″

Pack Qty: 1

Physical Appearance: Narrow Stile Pushpad

Reversible: Yes

Series: 3527A Series Surface Vertical Rod Exit Device

Ship Weight: 16 lbs.

Strike Bottom: 248L4/304L

Subtype: Surface Vertical Rod Exit Devices

Top Strike: 266

Trim Type: Less Trim

Type: Exit Devices

Ul Listing: UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3

Resources

• 33/3527A & 33/3527A-F Series Wood Door Template
• 33/3527A-F-LBR Series Wood Door Template
• EL for Exit Devices Data Sheet
• SS333NL/TP Trim for 33/3527 Device Metal Door Installation Instructions
• Von Duprin Finishes Chart
