Grade 1 Narrow Rim Exit Device – PHI

Description

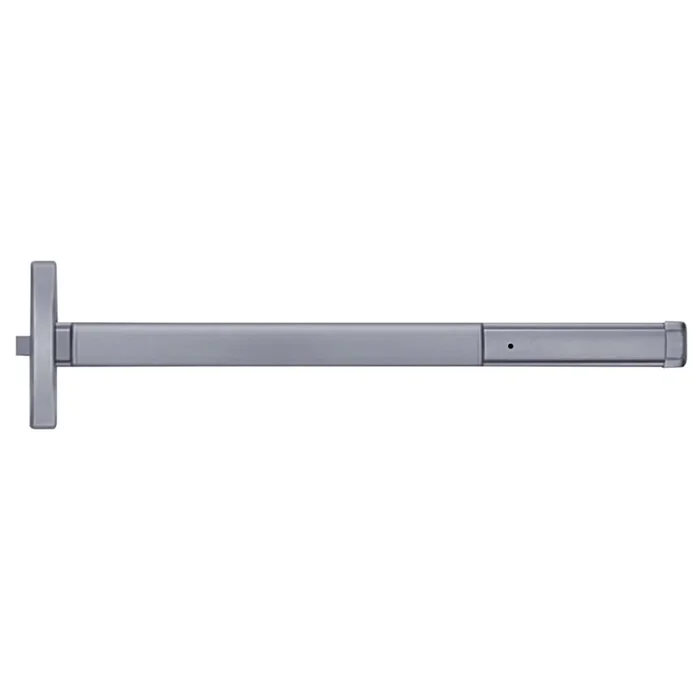

PHI 2401 628 36 Grade 1 Narrow Rim Exit Device

PHI 2401 628 36 Grade 1 Narrow Rim Exit Device is designed for commercial applications requiring reliable and efficient exit solutions. This Grade 1 rim exit device features a narrow stile pushpad and is suitable for exit-only functions, making it an ideal choice for various building environments, including healthcare and educational facilities. With its satin aluminum clear anodized finish, this device not only provides durability but also enhances the aesthetic appeal of your doors. The Apex 2000 Series is UL listed for panic and fire hardware, ensuring it meets the highest safety standards. It is also certified to ANSI A156.3 Grade 1, which signals its superior quality. The device accommodates door thicknesses from 1-3/4″ to 2-1/4″ and supports openings up to 4′-0″ wide, making it versatile for different door types, including single and double doors with a mullion. Installation is straightforward due to its field-reversible design, and the hex key dogging feature allows for easy locking and unlocking. The device includes a stainless steel latchbolt with a 3/4″ throw, providing enhanced security. With a limited 5-year warranty, the PHI 2401 is a dependable choice for any commercial setting.

Grade 1 Narrow Rim Exit Device

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 36″ Device, Exit Only Function, Hex Key Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

For all types of single and double doors with a mullion.

Available for 1-3/4″ to 2-1/4″ thick, up to 4′-0″ wide opening. For thicker door, consult factory. Furnished standard for 1-3/4″ thick, 3′-0″ wide opening.

• FUNCTIONS – A universal exit device. Add trim for desired function.
• BASE MATERIAL – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought brass, bronze or stainless steel. US28 devices are furnished with aluminum, brass, bronze and stainless steel components.
• CHASSIS – Investment cast steel, zinc dichromated.
• LATCHBOLT – Stainless steel, deadlocking, 3/4″ throw.
• STRIKES – No. S988, for (single) aluminum door applications, Black Powder Coated Stainless Steel Roller Strike. No. S458, for (paired) mullion applications, please specify when ordering.
• DOGGING – 1/4″ turn hex key dogging standard. NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT – 39-15/16″ from floor standard. May be varied as situation dictates.
• UL LISTED – Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.

Attributes

Manufacturer surcharge: 7.0%

Ansi: A156.3

Baa Qualified: Yes

Base Material: Aluminum

Commercial Residential: Commercial

Country of origin: USA

Device Length: 36″

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: All Types

Door Thickness: 1-3/4″ to 2-1/4″

Door Width: 3′

Finish: 628/US28

Finish Family: Matte Silver

Fire Rated: No

Grade: Grade 1

Handing: Field Reversible

Includes Trim: No

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Exit Only

Minimum Stile Size: 4-3/8″

Origin: USA

Pack Qty: 1

Physical Appearance: Narrow Stile Pushpad

Reversible: Yes

Series: 2400 Series Apex Narrow Stile Rim Exit Devices

Strike Standard: S988

Subtype: Rim Exit Devices

Type: Exit Devices

Ul Listing: UL10C

Unit of Measure: Each

Resources

• 2000 Trim Instruction
• 2400 Narrow Stile Rim Device Installation Instructions
• Apex 2000 Exit Device and Trim Illustrated Parts Catalog
• Apex 2000 Series Device with MLR Option FAQ
• Apex 2000 Series Exit Devices
• Apex 2000 Series Sell Sheet
• Exit Devices
• Filler Plate Installation Instructions
• MLR Exit Device
• Precision 2000 Series Catalog
