Grade 1 Narrow Rim Exit 626 – Von Duprin | Reliable Exit Device for Safety

Description

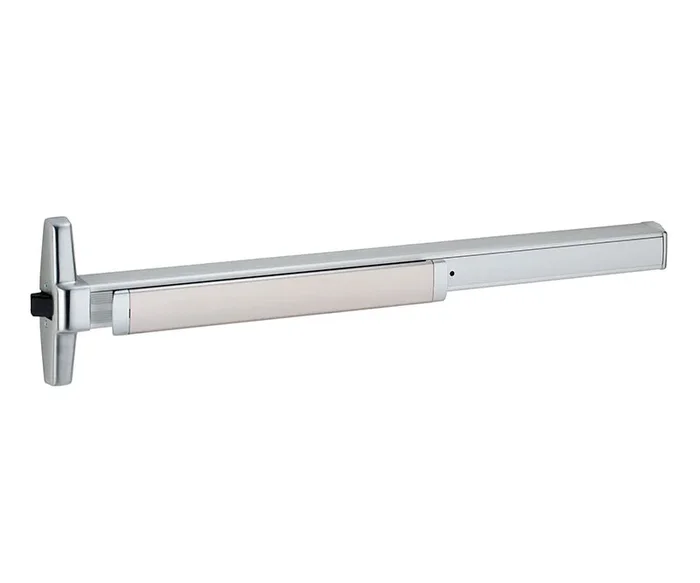

Von Duprin 35AL-07 3 26D LHR Grade 1 Narrow Rim Exit Device – 626

Von Duprin 35AL-07 3 26D LHR Grade 1 Narrow Rim Exit 626 offers a reliable solution for ensuring safe exits in commercial environments. Designed specifically for narrow stile doors, this rim exit device is equipped with lever trim and finished in elegant satin chrome. It is UL listed for panic exit hardware, guaranteeing compliance with safety standards. This device is ANSI A156.3 – 2001 Grade 1, indicating exceptional durability and performance. The mechanism features a smooth case, while the rim device is non-handed, simplifying installation and adaptability. It accommodates door sizes ranging from 26″ to 36″ in width and supports door thicknesses of 1-3/4″. The deadlocking latch bolt boasts a 3/4″ throw, providing secure closure. With hex key dogging as a standard feature, the 35AL-07 ensures ease of operation for users. The device’s center case measures 8 3/16″ x 1 9/16″ x 2 13/32″, ensuring a compact fit. Designed for both metal and wood doors, this exit device is perfect for various commercial applications. Backed by a three-year limited warranty, the Von Duprin 35AL-07 is a trusted choice for enhancing safety and security in your building’s exit strategy.

Grade 1 Narrow Rim Exit 626

Narrow Style, Rim Exit Device, with Lever Trim, Satin Chrome

33A and 35A for all types of single and double doors with mullion, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (Signal Switch) option is used. 33A/35A fits door stiles as narrow as 1 3/4″. Hex key dogging standard. Device Lengths: 3′ 2’4″ to 3′, 4′ 2’10” to 4′.

Devices are ANSI A156.3 – 2001 Grade 1.

The 35A has a smooth mechanism case andrim device is non-handed except when the SS (signal switch) option is used.

• Device lengths: 3′ 2′ 4″ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm)
• Door size: Device centerline from finished floor 39 13/16″ (1011 mm) 39 11/16″ (1008 mm) with Mullion
• Center case dimensions: 8 3/16″ x 1 9/16″ x 2 13/32″ (208mm x 40mm x 62mm)
• Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection: Pushbar Neutral – 3 13/16″ (97 mm) Pushbar Depressed – 3 1/16″ (78 mm)
• Latch bolt: Deadlocking, 3 /4″ (19mm) throw
• Fasteners & sex bolts (SNB): Includes 13 /4″ (44mm) – 2 1/4″ (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)

Attributes

Manufacturer surcharge: 4.5%

Base Material: Brass or Bronze

Commercial Residential: Commercial

Cylinder Type: 1-1/4″ Mortise

Device Length: 36″

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: Metal or Wood

Door Thickness: 1-3/4″

Door Width: 26″ to 36″

Finish: 626/US26D

Fire Rated: No

Grade: Grade 1

Handing: Left Hand Reverse

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Lever Classroom

Minimum Stile Size: Narrow

Pack Qty: 1

Physical Appearance: Narrow Stile Pushpad

Reversible: Yes

Series: 35A Series Rim Exit Device

Ship Weight: 17 lbs.

Strike Standard: 1439

Subtype: Rim Exit Devices

Trim Design: 07 Lever

Trim Part No: 360L

Trim Type: Classroom Lever

Type: Exit Devices

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
