Grade 1 Narrow Rim Exit 626 – Von Duprin Exit Device

Description

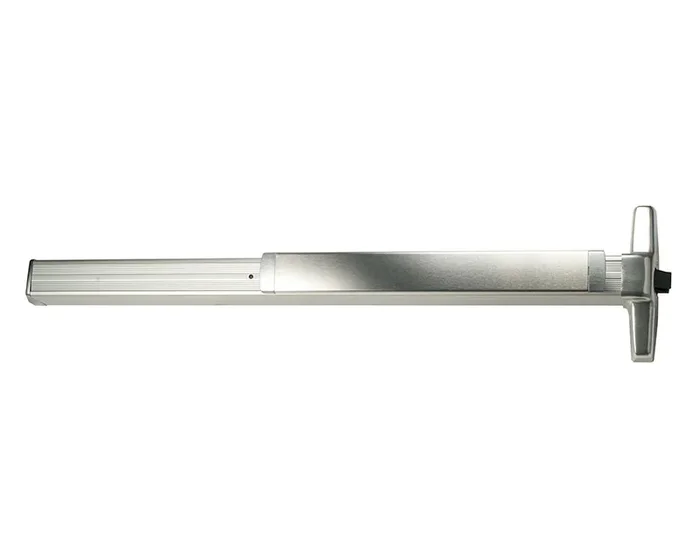

Von Duprin 33ANL 4 26D RHR Grade 1 Narrow Rim Exit Device – 626

Von Duprin 33ANL 4 26D RHR Grade 1 Narrow Rim Exit 626 is engineered for exceptional security and ease of use in commercial settings. This Grade 1 rim exit device features a narrow stile pushpad measuring 48 inches, designed to accommodate both single and double doors, including those with a mullion. It is UL listed for panic exit hardware, ensuring compliance with safety regulations. The device incorporates a deadlocking latchbolt that prevents forced latchbolt retraction, enhancing security for your openings. The standard hex key dogging provides convenient operation, while options such as electric latch retraction and various monitor switches offer flexibility for advanced access control needs. Finished in a sleek satin chrome, this exit device not only meets aesthetic demands but also withstands daily usage in high-traffic environments. Designed for doors with a thickness of 1-3/4 inches and widths ranging from 34 to 48 inches, the Von Duprin 33A is versatile and reliable. The grooved mechanism case adds to the robustness of the device, while the escutcheon pull trim allows for easy access. With a limited three-year warranty, this exit device is a sound investment for any commercial property, ensuring safety and functionality without compromise.

Grade 1 Narrow Rim Exit 626

Grade 1 Rim Exit Device, Narrow Stile Pushpad, 48″, Night Latch, Escutcheon Pull, Hex Key Dogging, Satin Chrome Finish, Right-Hand Reverse

33A and 35A for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 ñ 2014 Grade 1. The 35A has a smooth mechanism case and the 33A has grooved case. The rim device is non-handed except when the SS (signal switch) option is used. See opposite page for available outside trim and device functions.

The 33A Series features a grooved mechanism case and is for all types of single and double doors.

The 33A Series is UL listed for Panic Exit Device Hardware and has a deadlocking latchbolt that prevents forced latchbolt retraction providing higher security for your openings.

• Device Lengths:3’ 2’4″ to 3’ (711mm to 914 mm) door size; 4’ 2’10″ to 4’ (864 mm to 1219 mm) door size
• Strikes:1439 – Dull Black
• Dogging Feature:Hex key dogging standard
• Dogging Options:CD Cylinder Dogging; LD Less Dogging
• Electric Options:LX Latchbolt Monitor Switch; RX Pushpad Monitor Switch; RX2 Double Pushpad Monitor Switch; SS Signal Switch; EL Electric Latch Retraction; ALK Alarm Exit Kit
• Miscellaneous Options:PN Pneumatic Latch Retraction; GBK Glass Bead Kit
• Fasteners & IncludesSex Bolts (SNB):1 3/4″ (44mm) – 2 1/4″ (57mm) Wood & Metal Doors; #425 SNB furnished standard for end case; #325 SNB furnished standard for EO (exit only device)
• Latch Bolt:Deadlocking, 3/4″ (19mm) throw
• Device Centerline from Finished Floor:39 13/16″ (1011 mm); 39 11/16″ (1008 mm) with Mullion
• Center Case Dimensions:8 3/16″ x 2 13/32″ x 1 9/16″ (208mm x 62mm x 40mm)
• Mechanism Case Dimensions:2 1/4″ x 2 1/4″ (57mm x 57mm)
• Projection:Pushbar Neutral – 3 13/16″ (97 mm); Pushbar Depressed – 3 1/16″ (78 mm)

Attributes

Manufacturer surcharge: 4.5%

Ansi: A156.3 2014

Base Material: Brass or Bronze

Commercial Residential: Commercial

Cylinder Type: Rim

Device Length: 48″

Device Type: Rim

Dogging Options: Hex Key Dogging

Door Material: Metal or Wood

Door Thickness: 1-3/4″

Door Width: 34″ to 48″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: No

Grade: Grade 1

Handing: RHR

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Night Latch

Minimum Stile Size: Narrow

Pack Qty: 1

Physical Appearance: Narrow Stile Pushpad

Reversible: Yes

Series: 33A Series Rim Exit Device

Ship Weight: 18 lbs.

Strike Standard: 1439

Subtype: Rim Exit Devices

Trim Design: Escutcheon Pull

Trim Part No: 386NL

Trim Type: Pull

Type: Exit Devices

Ul Listing: UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
