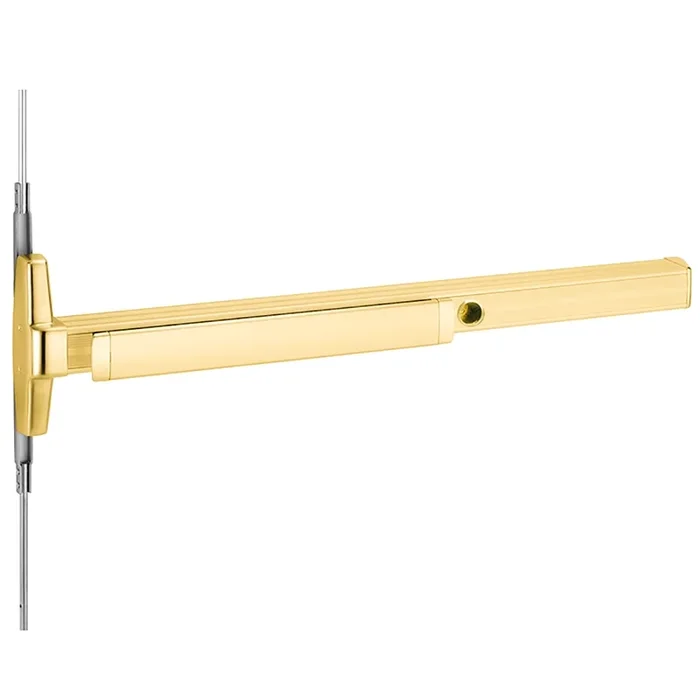

Von Duprin CD3347AEO 3 US3 Grade 1 Narrow CVR Exit Device 605
Von Duprin CD3347AEO 3 US3 Grade 1 Narrow CVR Exit 605 delivers a robust solution for your exit hardware needs with its Grade 1 Concealed Vertical Rod design. This exit device features a narrow stile pushpad and is specifically engineered for exit-only applications, making it ideal for both single and double doors. The unit is UL listed for Panic Exit Hardware, ensuring compliance with safety standards. With a bright brass finish, the CD3347AEO not only enhances durability but also adds an elegant touch to your doorway. Designed to fit door stiles as narrow as 1 3/4 inches and wood door stiles as narrow as 4 inches, it offers versatility in installation. The mechanism is non-handed, simplifying installation without the need for specific handing. Featuring cylinder dogging, the device allows for easy access control while maintaining security with its deadlocking anti-friction latch bolts. The adjustable vertical rods cater to various door heights, accommodating top rods adjustable from 6’8″ to 8’4″. The device’s centerline from the finished floor is set at 39 13/16 inches, ensuring ergonomic usability. Overall, the Von Duprin CD3347AEO is a reliable and aesthetically pleasing choice for commercial applications, backed by a three-year limited warranty.
Grade 1 Narrow CVR Exit 605
Grade 1 Concealed Vertical Rod Exit Device, Narrow Stile Pushpad, Exit Only, Less Trim, 36″, Cylinder Dogging, Bright Brass Finish, Non-Handed
3347A and 3547A for all types of single and double doors, UL listed for Panic Exit Hardware. Devices are ANSI A156.3 – 2001 Grade 1. The 3547A has a smooth mechanism case and the 3347A has grooved case. The concealed vertical rod device is non-handed except when the SS (Signal Switch) option is used. 3347A/3547A fits door stiles as narrow as 1 3/4″(44 mm), wood door stiles as narrow as 4″(102mm). Newly designed device has a one piece center case cover. Device Lengths: 3′ 2’4″ to 3′,4′ 2’10” to 4′. Hex key dogging standard. Vertical Rods: Round 2 piece adjustable rods; Top rod adjustable from 6’8″ to 8’4″.
3347A fits door stiles as narrow as 2-1/8″ (44 mm), wood door stiles as narrow as 4″ (102mm).
3347A isfor all types of single and double doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2001 Grade 1 and the3347A has a grooved case. The concealed vertical rod device is non-handed except when the SS (signal switch) option is used.
Device lengths: 2′ 2′ (610 mm) Door size 3′ 2’4″ to 3′ (660mm to 914 mm) door size 4′ 2’8″ to 4′ (813 mm to 1219 mm) door size
Device centerline from finished floor: 39 13/16″ (1006mm)
Center case dimensions: 8 13/16″ x 2 13/32″ x 1 9/16″ (208mm x 62mm x 40mm)
Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
Latch bolt: Deadlocking anti-friction top & bottom bolt 5 /8″ (16mm) throw
Door undercut: 1 /4″ (7mm)
Top & bottom latch: 3 3/4″ x 1 1/2″ x 1″ (89mm x 38mm x 25mm)
Vertical rods: Round 2 piece adjustable rods Top rod adjustable from 6’8″ (2027mm) to 8’4″ (2533mm) Bottom rod adjustable from 35 5/8″ (905mm) to 49 5/8″ (1260mm) Extension rod kits available for doors over 8’4″ (2533mm)
Fasteners & sex bolts (SNB): Includes 1 3/4″ (44mm) – 2 1/4″ (57mm) wood & metal doors #425 SNB furnished standard for end case #325 SNB furnished standard for EO (exit only device)
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.3 2008
Base Material: Brass
Commercial Residential: Commercial
Device Length: 36″
Device Type: Concealed Vertical Rod
Dogging Options: Cylinder Dogging
Door Height: 100″
Door Material: Hollow Metal
Door Thickness: 1-3/4″
Door Width: 28″ to 36″
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only
Minimum Stile Size: Narrow
Pack Qty: 1
Physical Appearance: Narrow Stile Pushpad
Reversible: Yes
Series: 3347A Series Concealed Vertical Rod Exit Device
Strike Bottom: 385A
Subtype: Concealed Vertical Rod Exit Devices
Top Strike: 338
Trim Type: Less Trim
Type: Exit Devices
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
