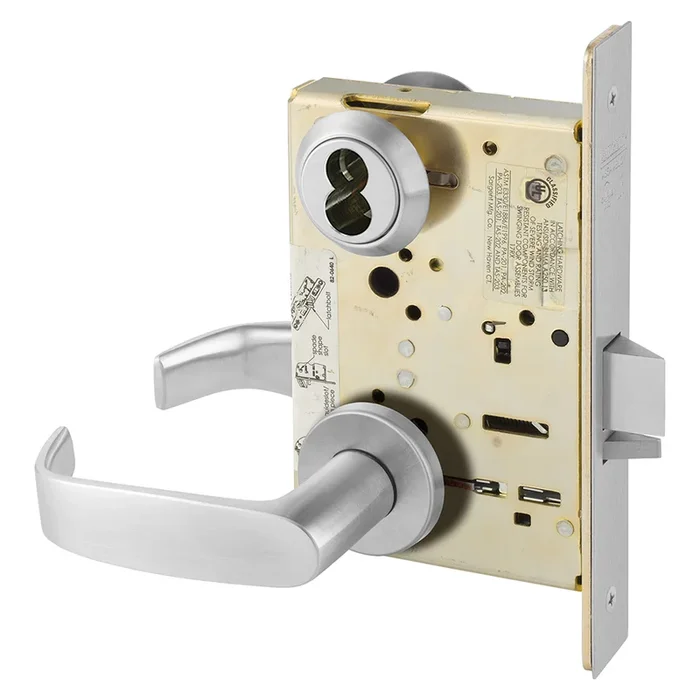

Grade 1 Institutional Mortise Lock by Sargent

Description

Sargent 608217LNL26D Mortise Lock

Sargent 608217LNL26D Asylum or Institutional Mortise Lock with L Lever and LN Rose with Sargent Large Format IC Plastic Disposable Construction Core Satin Chrome Finish

Attributes

Ansi Function: F30 – Asylum

Application: Complete Lock

Baa Qualified: Yes

Base Material: Brass or Bronze

Bolt Projection: 3/4″ Latch

Bolt Protection: 3/4″ Latch

Country of Origin: Usa

Country of origin: USA

Cylinder Type: Sargent LFIC Less Core

Design: L Lever and LN Rose

Door Thickness: 1-3/4″

Finish: Satin Chrome

Finish : Satin Chrome

Fire Rated: 2 Hours {B}

Fire Rating: 2 Hours {B}

Function: 17-Asylum or Institution

Grade: Grade 1

Hand: Field Reversible

Handing: Field Reversible

Lever Knob Design: L – Lever

Leverknob Design: L – Lever

Limited Warranty: 10 Years

Lock Face Size: 8″ x 1-1/4″

Origin: USA

Pack Height: 4.38″

Pack Length: 9.25″

Pack Qty: 1

Pack Volume: 227.64 in³

Pack Width: 5.63″

Rose Escutcheon Design: LN – Rose

Roseescutcheon Design: LN – Rose

Screws: Combination

Series: 8200 Series

Ship Weight: 6.1 lbs.

Std Strike Height: 4-7/8″

Std Strike Number: 82-0110

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Strike: ASA Strike

Strike Height: 4-7/8″

Strike Number: 82-0110

Strike Type: ASA

Strike Width: 1-1/4″

Subtype: Mortise

Type: Mechanical Commercial Locksets

Unit of Measure: Each

Resources

• 2019 Sargent Price Book
• 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Locks Installation Instructions
• 7800/8200 Series Mortise Locks Installation Instructions
• 7900/8200 Series Mortise Locks Installation Instructions
• 7900/8200 Series Mortise Locks Installation Instructions
• 8200 Line Lever Mortise Locks Cut Sheet
• 8200 Mortise Sectional Indicator Trim Template
• Sargent 7800/8200 Series Mortise Locks Catalog
• Sargent 7800/8200 Series Mortise Locks Catalog
• Sargent 7800/8200 Series Mortise Locks Installation Manual
• Sargent 7800/8200 Series Mortise Locks Instruction Sheet
• Sargent 7900/8200 Series Mortise Locks Installation Manual
• Sargent 8200 Series Environmental Product Declaration (EPD)
• Sargent 8200 Series Environmental Product Declaration (EPD)
• Sargent 8200 Series Mortise Locks Sell Sheet
• Sargent 8200 Series Mortise Locks Sell Sheet
• Sargent Healthcare Hardware Catalog
• Video: 8200 Series Mortise Lock Installation
