Grade 1 Institution Lock – Schlage Heavy-Duty Security Solution

Description

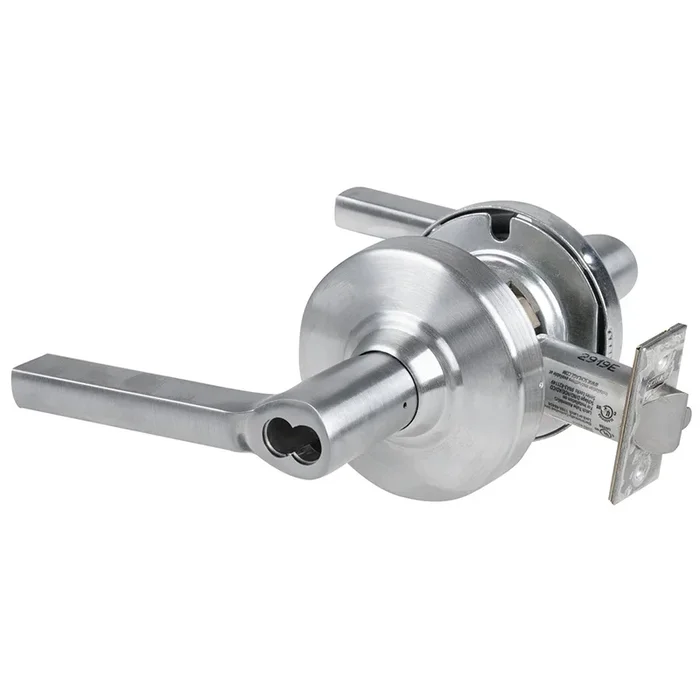

Schlage ND82JD LAT 626 Lock Cylindrical Lock

The Schlage ND Series is a Grade 1 Cylindrical Lock that is easy to service and maintain. The ND Series Vandlgard is ideal for areas subject to abuse or anywhere vandalism is likely to be present. All ND Levers are reversible and ADA Compliant.

• Institution, Both Levers Fixed, Entrance By Key in Either Lever
• ANSI/BHMA Certified A156.2-2011
• 1-5/8″ to 2-1/8″ Door Range
• Commercial Grade 1
• UL Listed for 3 Hour Fire Door

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI A156.2 Series 4000, Grade 1

Ansi Function: F87 – Asylum

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Bolt Projection: 1/2 In.

Bore Hole Diameter: 2-1/8 In.

Box Depth Fraction: 9-1/2 In.

Box Height Fraction: 4-3/4 In.

Box Width Fraction: 8-1/4 In.

Commercial Residential: Commercial

Country of Origin: Mexico

Country of origin: Mexico

Cylinder Type: Schlage FSIC Prep Less Core

Cylinders Present: Double Cylinder

Design: Latitude

Door Thickness: 1-5/8 In. to 2-1/8 In.

Finish: 626/US26D

Finish : Satin Chromium Plated

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 82-Institution Lock

Function Family: Institutional

Grade: Grade 1

Handing: Non-handed

Installation: Commercial

Latch Bore Diameter: 1 In.

Lever Knob: Lever

Lever Knob Design Name: Latitude

Leverknob Design: LAT – Latitude Lever

Leverknob Design Family: Straight Lever

Limited Warranty: 10 Years

Lock Face Size: 1-1/8 In. x 2-1/4 In.

Manufacturer Function: Institutional Lock

Maximum Door Thickness: 2-1/8 In.

Minimum Door Thickness: 1-5/8 In.

Origin: Mexico

Pack Height: 4.75″

Pack Height 2: 10″

Pack Length: 9.5″

Pack Length 2: 16.38″

Pack Qty: 1

Pack Volume: 372.28 in³

Pack Volume 2: 2394.84 in³

Pack Width: 8.25″

Pack Width 2: 14.63″

Pbs Options: ‘4540298,4541421

Pins: 6

Product Height: 3.44″

Projection: 3-1/8 In.

Rose Escutcheon: Rose

Roseescutcheon Design: 3-7/16″ Rose Diameter

Roseescutcheon Dimensions: 3-7/16″

Screws: Wood/Machine Screws

Series: ND Series Lever Locks

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4 In.

Std Latch Number: 13-247

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8 In.

Std Strike Number: 10-025

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4 In.

Strike: ASA Strike

Strike Dimensions: 1-1/4 In. x 4-7/8 In.

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL/cUL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
