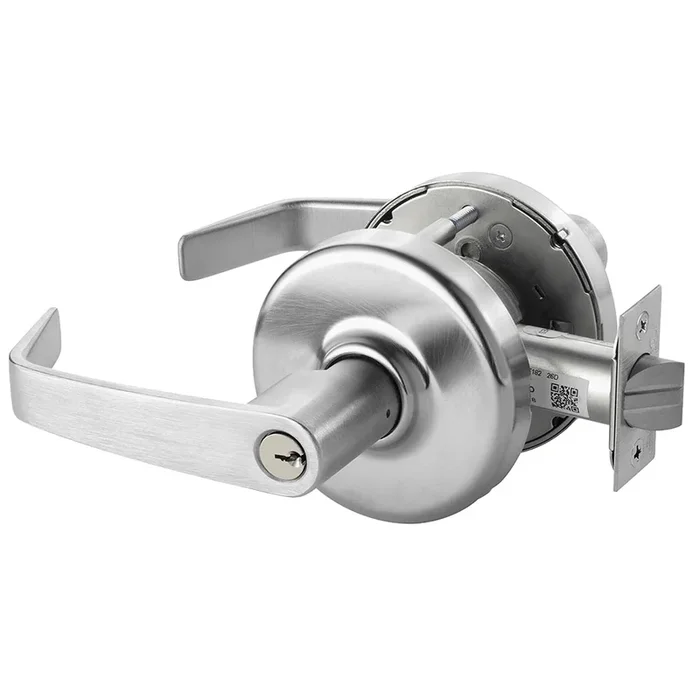

Corbin Russwin CLX3332 NZD 626 Grade 1 Institutional Lock
Corbin Russwin CLX3332 NZD 626 Grade 1 Institution Lock offers a robust solution for securing high-traffic areas while maintaining a stylish appearance. This Grade 1 institutional cylindrical lock features the elegant Newport lever design, complemented by a durable satin chrome finish. Its non-handed configuration provides flexibility for installation in various door orientations, making it an ideal choice for both new constructions and retrofits. Engineered for durability, the CLX3300 Series lock is crafted from high-quality brass and bronze materials, ensuring reliable performance in demanding environments. With a fire rating of 3 hours and compatibility with all cylinder formats, including conventional cylinders and double cylinder options, this lock meets stringent safety standards while supporting a range of locking needs.The lock is designed to fit doors with thicknesses ranging from 1-3/4″ to 2″ and features a standard 2-3/4″ backset for easy installation. With a 10-year limited warranty, you can trust in its long-lasting quality. Additionally, the lock’s ANSI/BHMA certification (F87 – Asylum) further underscores its reliability and security capabilities. Enhance your building’s security with the Corbin Russwin CLX3332, where style meets strength.
Grade 1 Institution Lock
Grade 1 Institutional/Utility Cylindrical Lock, Newport Lever, D Rose, Conventional Cylinder, Satin Chrome Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designedto secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you’ll never have to sacrifice style for strength. It supports all cylinder formats – from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F87
Ansi Function: F87 – Asylum
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 10″
Box Height Fraction: 4-1/2″
Box Width Fraction: 8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: Conventional Cylinder
Cylinders Present: Double Cylinder
Door Thickness: 1-3/4″ to 2″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 32-Institutional or Utility
Function Family: Institutional
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: Newport
Leverknob Design: NZ – Newport Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Institutional/Utility
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Of Keys: 2
Origin: United States
Pack Height: 4.5″
Pack Length: 10″
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8″
Pins: 6
Product Height: 4.5″
Product Length: 10″
Product Width: 8″
Projection: 2-15/16″
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
