Grade 1 Exit Security Lock by Falcon – High-Quality Door Hardware

Description

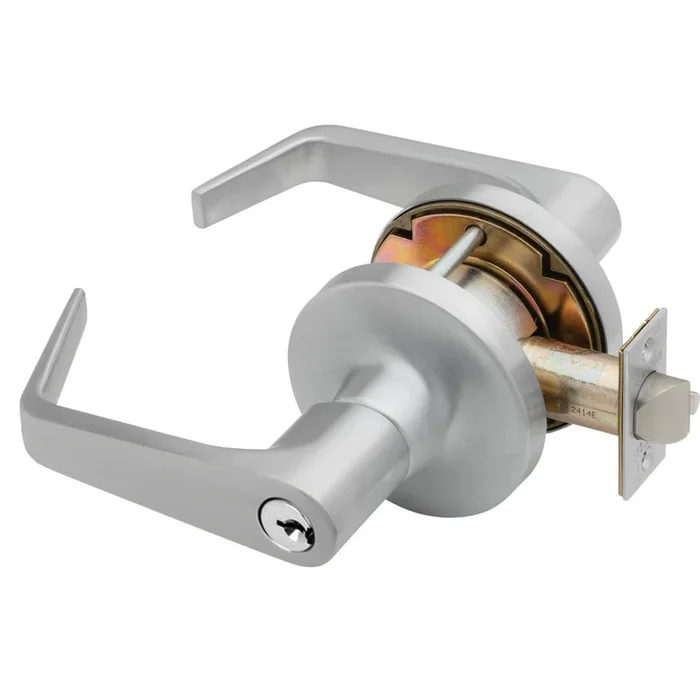

Falcon Lock T381CP6D D 626 Grade 1 Exit Security Lock

Falcon Lock T381CP6D D 626 Grade 1 Exit Security Lock offers robust security and durability, making it ideal for high-traffic environments. This Grade 1 classroom security cylindrical lock features a key-in-lever cylinder and a stylish Dane lever design, finished in satin chrome for a modern look. Its non-handed construction allows for easy installation on doors ranging from 1-3/4″ to 2-1/8″ thick, with an optional adapter for thinner doors. Engineered to exceed ANSI/BHMA Grade 1 testing, the T Series lock is perfect for institutional applications where reliability is paramount. The lock’s heavy-duty construction includes brass or cold-formed steel components, zinc plating, and stainless steel springs for enhanced rust resistance. With a 9/16″ bolt projection and UL-listed latch faceplates, the T381 provides peace of mind alongside functionality. Designed for easy re-keying, the lock accepts cylinders from any manufacturer and features a removable 6-pin cylinder for quick adjustments. The lock is compliant with ADA standards, ensuring accessibility for all users. Backed by a 10-year limited warranty, the Falcon T381CP6D is a solid investment for commercial environments seeking security without sacrificing style.

Grade 1 Exit Security Lock

Grade 1 Classroom Security Cylindrical Lock, Key in Lever Cylinder, Dane Lever, Standard Rose, Satin Chrome Finish, Non-Handed

The T Series extra heavy-duty Grade 1 cylindrical lock is designed to stand up to high-traffic and heavy-abuse applications. The lock can accept any manufacturer√¢¬ÃšÂ¢Â¬Ã„¬ôs cylinder, and the cylinder can easily be removed for quick, easy re-keying, so retrofitting a current building is simple. The T Series is constructed with a compression spring that allows the lock to exceed ANSI/BHMA Grade 1 testing requirements. Perfect for high-use institutional applications, the T Series lock delivers by providing a solid product at a solid price.

Can accept any manufacturer’s cylinder, and the cylinder can easily be removed for quick, easy re-keying.

• Door Thickness: 1-3/4” to 2-1/8” standard. Thin door adapter kit (A30775-000-00) available for doors thinner than 1-3/4”, please specify door thickness.
• Backset: 2-3/4” standard. 2-3/8” also available. Link (A22161-005-10) available for 5” backset.
• Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by threaded mounting nuts. Completely preassembled outer trim and inner spindle assembly are through-bolted over chassis using (2) 10-32 screws. Adding rose and lever to inner spindle assembly completes installation.
• Handing: Locks are non-handed.
• Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders also available. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard. Interchangeable core design is available for small format (SFIC) and large format for most manufacturers.
• Keyways: “G” keyway standard on conventional cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
• Trim: Roses are heavy wrought brass or bronze, installed over pressure cast rose inserts which are through-bolted through door. Levers are pressure cast (solid levers–no inserts) material finished to match mating parts.
• Latches: 9/16” bolt projection, UL listed with latch faceplates 2-1/4” x 1-1/8” with square corners standard. 3/4” projection, UL listed latch with 2-3/4” backset also available. Adjustable front standard.
• Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard.
• Screws: Furnished with combination screws for use in wood or metal doors and frames.
• Electrified Functions: Available in 24 VDC .185 AMP.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Ansi: ANSI/BHMA A156.2, Series 4000, Grade 1

Ansi Function: F88 – Entry/Restroom

Baa Qualified: Yes

Bolt Projection: 1/2″ Latch

Bore Hole Diameter: 2-1/8″

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: Mexico

Cylinder Type: Key in Lever Cylinder

Door Thickness: 1-3/4″ – 2-1/4″

Dust Box: None

Finish: 626/US26D

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: T381-Classroom Security

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Latch Bore Diameter: 1″

Leverknob Design: D – Dane Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 10 Years

Lock Face Size: 2-1/4″ x 1-1/8″

Origin: Mexico

Pack Height: 3.75″

Pack Length: 9.25″

Pack Qty: 1

Pack Volume: 242.81 in³

Pack Width: 7″

Pbs Options: 20162057

Pins: 6

Projection: 3-1/2″

Restrictions: None

Roseescutcheon Design: Standard Rose

Roseescutcheon Dimensions: 3-1/2″ Rose Diameter

Screws: Combination

Series: T Series Grade 1 Cylindrical Lever Locks

Ship Weight: 5.5 lbs.

Std Keyway: Schlage C

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 23981145

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 4-7/8″

Std Strike Number: 5164

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: A Label

Unit of Measure: Each

Resources

• Falcon Cylindrical Lock Guide
• T Series Data sheet
• T-Series Installation Instructions
• T-Series Installation Instructions – Electrical
• T-Series Sell Sheet
• T-Series Service Manual
• T/W Series Data Sheet
• Von Duprin Finishes Chart
