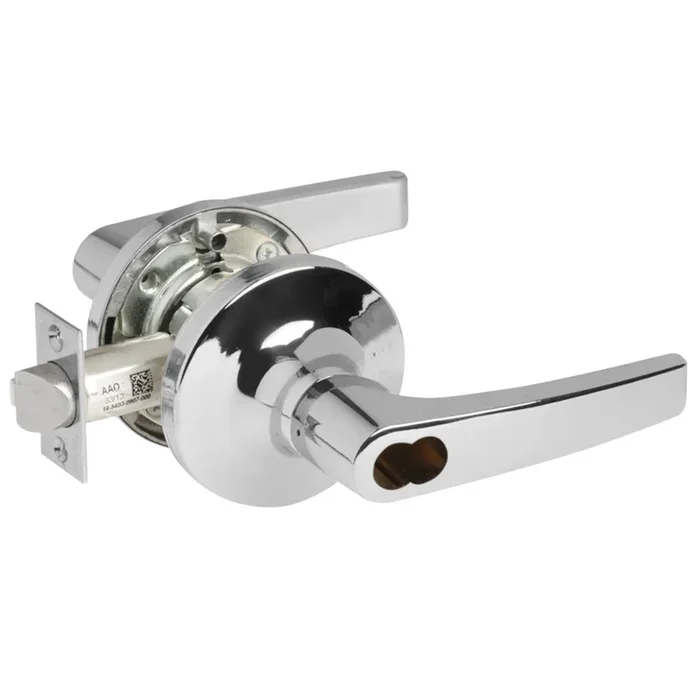

Yale MO5407LN ICLC 625 Grade 1 Entry Lockset
Yale MO5407LN ICLC 625 Grade 1 Entry Lockset delivers unmatched durability and performance, making it an excellent choice for industrial, commercial, and institutional environments. This Grade 1 cylindrical lockset features the stylish Monroe lever and a bright chrome finish, ensuring both aesthetics and functionality. Designed for heavy-duty use, the MO5407LN boasts a Free Wheeling lever mechanism that enhances vandal resistance while reducing maintenance needs. The stainless steel latchbolt provides added strength with a standard 1/2″ throw, while the wear-resistant chassis plates contribute to smoother operation and extended product life. With a non-handed design, this lockset accommodates various door applications seamlessly. Installation is simplified with patented adjustable rose support plates, allowing it to fit doors from 1-3/4″ to 2″ thick. Yale’s diverse cylinder and keying options include 6- and 7-pin standard and interchangeable core cylinders, providing flexibility for various security needs. The lockset features a lifetime warranty on heavy-duty lever return springs to prevent sagging and ensure reliable operation. With 24 available functions and multiple finish options, the Yale MO5407LN ICLC 625 meets the highest standards of quality, making it a favored choice among architects and building owners alike.
Grade 1 Entry Lockset
Grade 1 Entry Cylindrical Lock, Monroe Lever, LFIC 6-Pin Less Core, Bright Chrome Finish, Non-handed
Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it’s the favorite among architects and building owners who demand the highest standard of product quality.
Designed for industrial, commercial, and institutional settings.
Designed for industrial, commercial and institutional use, this heavy-duty grade 1 cylindrical lockset offers no compromise when it comes to rugged reliability and performance.
• Free Wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.
• 13 finish options.
• 3 lever designs.
• 24 functions including electrified.
• Stainless steel latchbolt provides added strength and wear resistance. Direct 1/2″ throw is standard.
• A 3/4″ latch throw for fire-rated or pairs of doors is available.
• Wear-resistant plates in the chassis help extend the life of the lockbody and provide smoother lock operation.
• Longer thread locking through-bolts through the chassis provide greater stability and prevent rotation.
• Lifetime warranted heavy-duty lever return springs prevent lever sag and provide positive return of lever to horizontal position.
• Patented (patent no. 6,131,970) door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4″ to 2″. Rose spacers available for 1-3/8″ thick doors.
• Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.
• Expanded cylinder and keying options: – Yale® 6- and 7-pin standard and interchangeable core cylinders including Yale® KeyMark® protected keyway cylinders. – Standard cylinders with Schlage® C and Sargent® LA keyways. Small format interchangeable cores with Best® keyways. – Levers which accept interchangeable core cylinders by Best®, Schlage®, ASSA® and Medeco®.
• 3-1/2″ roses cover ANSI/BHMA hollow metal door cutout.
Attributes
Ansi: F109
Ansi Function: F109 – Entry/Office
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 10″
Box Height Fraction: 4″
Box Width Fraction: 7-1/2″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: 6-Pin LFIC 6-Pin Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4″ to 2″
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 07-Entry Lock
Function Family: Entrance/Office
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: Monroe
Leverknob Design: MO – Monroe Lever
Leverknob Design Family: Curved Lever
Limited Warranty: 7 Year Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Entry
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Origin: United States
Pack Height: 4″
Pack Length: 10″
Pack Qty: 1
Pack Volume: 300 in³
Pack Width: 7.5″
Pins: 6
Product Height: 4″
Product Length: 10″
Product Width: 7.5″
Projection: 3-1/8″
Rose Escutcheon: Rose
Roseescutcheon Design: 3-1/2″ Rose Diameter
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: 5400LN Grade 1 Cylindrical Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 694
Std Latch Type: Beveled Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 497
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
