Description

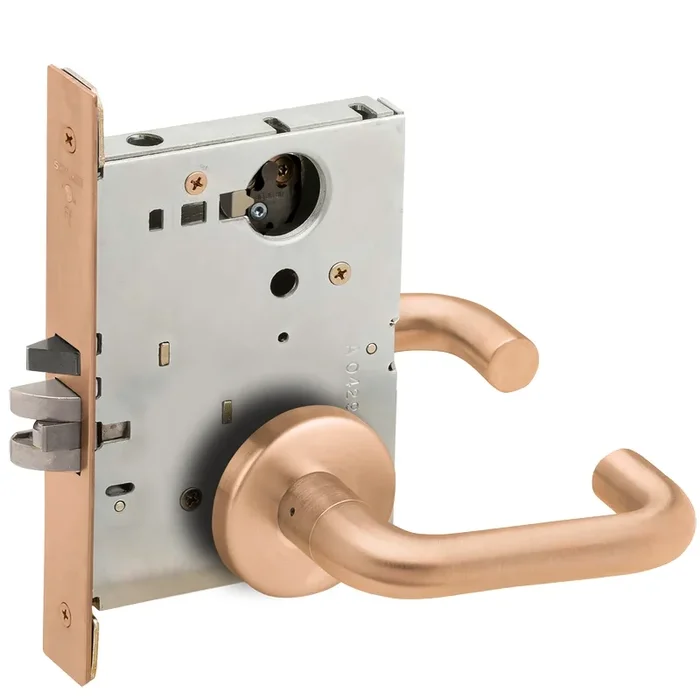

Schlage L9050L 03B 612 Grade 1 Entrance/Office Lock
Schlage L9050L 03B 612 Grade 1 Entrance/Office Lock offers unparalleled durability and security for high-traffic environments. Designed as a Grade 1 mortise lock, it features a robust, heavy-gauge steel case that withstands door edge attacks, making it ideal for use in schools, hospitals, and factories. The satin bronze clear-coated finish not only enhances its aesthetic appeal but also ensures longevity against wear and tear. This lock is engineered for dependable operation, meeting ANSI Grade 1 standards for safety. The L9050L model includes a field-reversible handing feature, allowing for easy installation and adaptability to various door configurations without opening the lock case. Its two-piece anti-friction tongue reduces wear, while the break-away spindle prevents unsecured failures, ensuring peace of mind in security. Additional features such as a spring-loaded fusible link provide a fail-secure mode in case of fire, and the independent lever rotation enhances usability. With a 3/4″ latch bolt projection and a universal lock case accommodating ten functions, the Schlage L9050L is versatile enough to meet diverse security needs. Trust in Schlage’s commitment to quality and performance, knowing that this lock is built to last while maintaining the functionality and style your clients expect.
Grade 1 Entrance/Office Lock
Grade 1 Mortise Entrance Office Lock, Less Conventional Cylinder, 03 Lever, B Rose, Satin Bronze Clear Coated Finish, Field Reversible
Schlage L-Series Extra Heavy Duty Mortise Locks are built to withstand the rigors of daily use without fail. Our L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse. We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our L-Series locks meets ANSI Grade 1 standards for safety. A multitude of functions, finishes and trim designs are available to meet virtually every security and aesthetic requirement.
Extra heavy duty mortise lock protected by all metal heavy-gauge steel.
Schlage L9000 Series locks are ideal for use in schools, hospitals and factories, where the finest hardware must also deliver consistent, dependable operation and stand up to constant use and abuse.
Durability and Strength
- Heavy-gauge, fully wrapped steel case protects against door edge attacks
- All-metal zinc dichromate-plated working parts
- Electronic components protected by inside lock case
- Wear and tear reduced by two-piece anti-friction tongue
- Outside and inside trim thru-bolted together and through the door
Built-in Security
- Unsecured failures prevented by break-away spindle, also providing easy spindle replacement
- Spindle manipulation discouraged by hub blocking plate
- Spring-loaded fusible link provides fail secure mode in case of fire
- Inside lever applied by screwless shank mounting – no exposed trim mount screws
Adaptable to your application
- Universal lock case featuring ten functions in one case
- Floating mounting tabs adjust to fit a beveled door edge
- Field-reversible handing without opening lock case
- Simple trim retrofit made possible by external spring cages
- Locking thumb-turn on the inside of door shows when the door is unlocked and locked
- Lever rotation in both directions for ease of use
- Independent lever rotation
Attributes
Manufacturer surcharge: 4.5%
Ansi: A156.13-2017 Series 1000
Ansi Function: F04 – Entry/Office
Baa Qualified: Yes
Bolt Projection: 3/4″ Latch
Burglar Rated: No
Cam Number: L583-474
Cam Type: Schlage L
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Length: 1-1/8″
Cylinder Type: Less Conventional Cylinder
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 9050-Entrance Office
Function Family: Entrance/Office
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Latch Bore Diameter: 2-3/4″
Leverknob Design: 03 Lever
Leverknob Design Family: Tubular Return Lever
Limited Warranty: 3 Years
Lock Face Size: 6-5/8″ x 4-1/2″
Origin: Mexico
Pack Height: 5.63″
Pack Height 2: 5.63″
Pack Length: 10.38″
Pack Length 2: 10.38″
Pack Qty: 1
Pack Volume: 313.68 in³
Pack Volume 2: 313.68 in³
Pack Width: 5.38″
Pack Width 2: 5.38″
Pins: 6
Projection: 2-13/16″
Rose Number: 09-404 B 612, 09-403 B 612
Roseescutcheon Design: B Rose
Roseescutcheon Dimensions: 2-9/16″ Diameter, 13/32″ Projection
Screws: Combination
Series: L9000 Series Mortise Lock
Ship Weight: 6.3 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: L283-008, L283-006
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8″
Std Strike Number: 10-072 1316 612
Std Strike Type: ANSI Strike
Std Strike Width: 1-3/16″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
Resources
- L Series Mounting Plate Installation Instructions
- L400 Installation Instructions
- L9000 Indicator Handing Instructions
- L9000 Indicator Lever w/ Escutcheon Installation Instructions
- L9000 Indicator Lever w/ Sectional Installation Instructions
- L9000 Installation Instructions
- L9000 Knob Installation Instructions
- L9000 Series Mortise Lock Cut Sheet
- Schlage L Indicator Data Sheet
- Schlage L Series Parts Diagram
- Schlage L Series Service Manual
- Schlage L9000 Gen 2 Indicator Pricing Addendum
- Video: AL Lock Installation
- Von Duprin Finishes Chart
