Grade 1 Entrance Lock by Arrow | Durable and Secure Door Hardware

Description

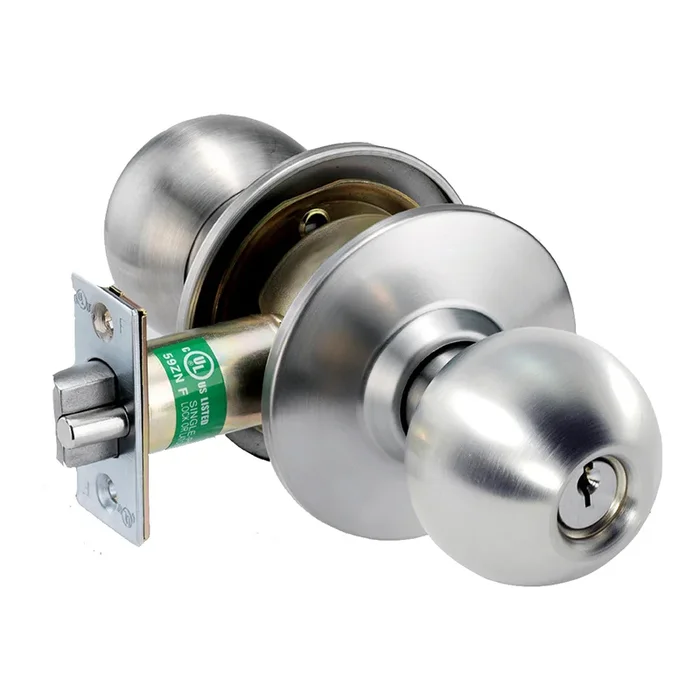

Arrow Lock HK11-BB-630 Grade 1 Entrance Lock

Arrow HK11-BB-630 Grade 1 Entrance Lock is a robust and reliable choice for both commercial and residential applications. This Grade 1 Turn-Pushbutton entrance lock features a durable ball knob design and a conventional cylinder, making it ideal for high-traffic areas. Constructed from cold-rolled steel with a corrosion-resistant zinc dichromate finish, this lock ensures longevity and resilience against wear and tear. Designed to accommodate door thicknesses ranging from 1-3/8″ to 2″, the HK11-BB-630 offers a stainless steel latch with a 1/2″ throw, paired with a latch housing that meets stringent standards. The non-handed design allows for easy and flexible installation, while the precision-engineered components guarantee smooth operation.This lock comes with a standard solid brass 6-pin cylinder and two nickel-plated brass keys, available in either Arrow AR or Schlage CS keyway options. Additionally, the lock offers interchangeable core capabilities for enhanced security adaptability. Certified to BHMA Grade 1, it comes with a 10-year warranty, ensuring peace of mind for users.With its matte silver finish and ANSI A115.2 strike dimensions, the Arrow HK11-BB-630 Grade 1 Entrance Lock is an excellent option for those seeking durability and ease of use in door hardware.

Grade 1 Entrance Lock

Grade 1 Turn-Pushbutton Entrance Cylindrical Lock, Ball Knob, Conventional Cylinder, Satin Stainless Steel Finish, Non-handed

The HK series Grade 1 Cylindrical Knob lock is designed and tested for the most robust applications for Grade 1 knob locksets. Backed by the Arrow 10 year warranty and Certified to BHMA Grade 1 it is the worry free solution when a Grade 1 knob lock is needed.

The Arrow HK Series is a Grade 1 Knob Lock that comes in a variety of finishes and functions.

• Lock Chassis – Cold rolled steel with zinc dichromate finish for corrosion resistance. Latch retractor is precision stainless steel. Requires standard 2-1/8″ (53.97mm) bore through door.
• Door Thickness – 1-3/8″ (35mm) to 2″ (50.80mm)
• Latch – Stainless steel with 1/2″ (12.7mm) throw. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1″ (25.4mm) bore in edge of door required.
• Latch Front – Brass or stainless steel, 2-1/4″ (57.15mm) x 1-1/8″ (28.57mm), beveled 1/8″ (3.17mm) in 2″ (50.8mm)
• Handing – Reversible.
• Strike – Brass or stainless steel. ANSI A115.2,4-7/8″ (123.82mm) x 1-1/4″ (31.75mm) curved lip standard with a 1-1/4″ (31.75mm) lip to center dimension.
• Cylinder, Standard – Solid brass 6 pin cylinder supplied with two 6 pin nickel plated brass keys. Available in Arrow AR or Schlage CS keyway.
• Cylinder Options – Interchangeable core-lockset prepared for use with 6 or 7 pin interchangeable core available. SFIC format. Supplied less core. Suffix “IC” to design.

Attributes

Base Material: Stainless Steel

Bolt Projection: 1/2″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 7-5/8″

Box Height Fraction: 3-1/2″

Box Width Fraction: 5″

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: China

Cylinder Type: Conventional Cylinder

Cylinders Present: Single Cylinder

Door Thickness: 1-3/8″ to 2″

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 11-Entrance

Function Family: Entrance

Grade: Grade 1

Handing: Non-handed

Installation: Commercial

Keys: Cut

Latch Bore Diameter: 1″

Lever Knob: Knob

Lever Knob Design Name: Ball

Leverknob Design: BB – Ball Knob

Leverknob Design Family: Ball Knob

Limited Warranty: 10 Year Warranty

Lock Face Size: 1-1/8″ x 2-1/4″

Manufacturer Function: Entrance

Maximum Door Thickness: 2″

Minimum Door Thickness: 1-3/8″

Of Keys: 2

Origin: China

Pack Height: 3.5″

Pack Length: 7.63″

Pack Qty: 1

Pack Volume: 133.44 in³

Pack Width: 5″

Pins: 6

Product Height: 3.25″

Product Length: 7.5″

Product Width: 4.88″

Projection: 3-1/8″

Rose Escutcheon: Rose

Roseescutcheon Design: 3-1/4″ Rose Diameter

Roseescutcheon Dimensions: 3-1/4″

Screws: Wood/Machine Screws

Series: HK Series Grade 1 Cylindrical Knob Locks

Ship Weight: 5 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: Q71

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: 306

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4″

Strike Dimensions: 1-1/4″ x 4-7/8″

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed

Unit of Measure: Each

Resources

• HK Series Cylindrical Lock Cut Sheet
• HK Series Grade 1 Cylindrical Knob Locks Cut Sheet
