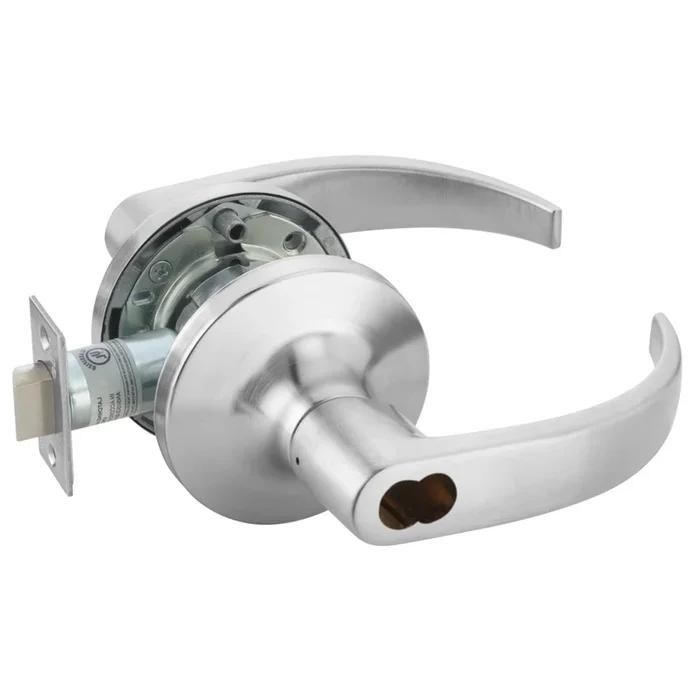

Grade 1 Electrified Lockset by Yale – High Security Electric Lock

Description

Yale PB5491LN 1210 LC 626 12V Grade 1 Electrified Lockset Instructions

Yale PB5491LN 1210 LC 626 12V Grade 1 Electrified Lockset combines durability with advanced security, making it an ideal choice for industrial, commercial, and institutional applications. This fail-secure, 12V electrified cylindrical lock features a sleek PB lever design and a robust 6-pin LFIC, all finished in an elegant satin chrome. Built to meet the stringent demands of high-traffic environments, this lockset boasts a Free Wheeling lever mechanism that enhances vandal resistance and minimizes maintenance needs. The stainless steel latchbolt ensures added strength and wear resistance, while the wear-resistant chassis plates facilitate smoother operation and extend the lock’s lifespan. With a direct 1/2″ throw and the option for a 3/4″ latch throw for fire-rated doors, this lockset is adaptable to various door requirements. The Yale PB5491LN also offers extensive customization with 13 finish options, three lever designs, and expanded cylinder choices, including compatibility with Best, Schlage, and Medeco keyways. Its non-handed design and ADA-compliant levers ensure ease of use for all. With a robust lifetime warranty on the heavy-duty lever return springs and a fire rating of three hours, this lockset delivers both reliability and peace of mind for any facility.

Grade 1 Electrified Lockset

Fail Secure, 12V, Electrified Cylindrical Lock, PB Lever Design, 6-Pin LFIC, Less Core, Satin Chrome

Designed for industrial, commercial and institutional use, the Yale 5400LN Series heavy duty cylindrical lockset offers no compromises when it comes to rugged reliability and performance. With key construction features such as our Free Wheeling lever mechanism, wear resistant chassis plates, heavy duty lever return springs and through bolting, this Grade 1 trendsetter proves time and again why it’s the favorite among architects and building owners who demand the highest standard of product quality.

Designed for industrial, commercial, and institutional settings.

Designed for industrial, commercial and institutional use, this heavy-duty grade 1 cylindrical lockset offers no compromise when it comes to rugged reliability and performance.

• Free Wheeling lever mechanism increases vandal resistance and reduces the amount of maintenance typically required of locksets with rigid levers.

• 13 finish options.

• 3 lever designs.

• 24 functions including electrified.

• Stainless steel latchbolt provides added strength and wear resistance. Direct 1/2″ throw is standard.

• A 3/4″ latch throw for fire-rated or pairs of doors is available.

• Wear-resistant plates in the chassis help extend the life of the lockbody and provide smoother lock operation.

• Longer thread locking through-bolts through the chassis provide greater stability and prevent rotation.

• Lifetime warranted heavy-duty lever return springs prevent lever sag and provide positive return of lever to horizontal position.

• Patented (patent no. 6,131,970) door adjustable rose support plates allow for easy adjustment of lockset to fit doors ranging in thickness from 1-3/4″ to 2″. Rose spacers available for 1-3/8″ thick doors.

• Three non-handed lever options (Augusta, Monroe, and Pacific Beach) comply with ADA requirements for easy gripping and operation.

• Expanded cylinder and keying options: – Yale® 6- and 7-pin standard and interchangeable core cylinders including Yale® KeyMark® protected keyway cylinders. – Standard cylinders with Schlage® C and Sargent® LA keyways. Small format interchangeable cores with Best® keyways. – Levers which accept interchangeable core cylinders by Best®, Schlage®, ASSA® and Medeco®.

• 3-1/2″ roses cover ANSI/BHMA hollow metal door cutout.

Attributes

Amp Draw: 300mA

Base Material: Brass or Bronze

Bolt Projection: 1/2″

Cylinder Type: Yale 6-Pin LFIC Prep Less Core

Door Thickness: 1-3/4″ to 2″

Finish: 626/US26D

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 91-Fail Secure

Grade: Grade 1

Handing: Not Handed

Latch Backset Dim: 2-3/4″

Leverknob Design: PB – Pacific Beach

Limited Warranty: 2 Years

Lock Face Size: 2-1/4″ X 1-1/8″

Operating Voltage: 12VDC

Pack Qty: 1

Power: Hard Wired

Roseescutcheon Design: 3-1/2″ Diameter

Screws: Combination

Series: 5400LN Grade 1 Cylindrical Lever Locks

Std Latch Number: 694

Std Latch Type: Guarded Latch

Std Strike Height: 4-7/8″

Std Strike Number: 497

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Electric Cylindrical Lock

Type: Electric Locks

Unit of Measure: Each

Resources

• 5400LN Grade 1 Cylindrical Lever Locks Cut Sheet
• 5400LN Series Grade 1 Cylindrical Lever Locks Catalog
• 5400LN Series Grade 1 Cylindrical Lever Lockset Installation Instructions
• Electrified Wiring and Request to Exit (REX) Instructions 5490LN/5491LN
• Replacing Push Button on a Yale 5400 Series Cylindrical Lock
