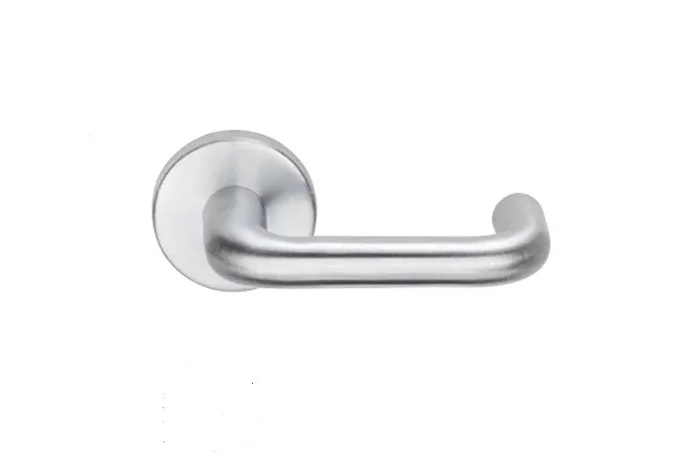

Grade 1 Electric Mortise Lock w/ Fail Safe by Schlage

Description

Schlage L9492ELP 03A 630 Grade 1 Electric Lock with Fail Safe Instructions

Schlage L9492ELP 03A 630 Grade 1 Electric Mortise Lock is designed for superior security and flexibility in commercial applications. This Grade 1 Fail Safe electric lock features a conventional cylinder and a sleek satin stainless steel finish that complements any doorway. Its field-reversible design allows for easy installation, accommodating various door configurations. The Schlage L909x Series represents the next generation of electrified mortise locks, accommodating universal input voltages of 12 or 24VDC. The fail safe and fail secure functions can be conveniently selected in the field with a simple switch, ensuring adaptability to your security needs. Enhanced security is provided through the innovative RX switch, which monitors the inside lever and balances security with user sensitivity, easily added without opening the lock case. With a robust 3/4″ bolt projection and a fire rating of up to three hours, this electric lock is built to withstand challenging conditions. It meets ADA compliance standards, ensuring accessibility for all users. Each lock comes with two keys, is hardwired for reliability, and is backed by a one-year limited warranty. The Schlage L9492ELP is the ideal choice for those seeking a durable, secure, and stylish locking solution for their commercial spaces.

Grade 1 Elec wDB, Fail Safe

Grade 1 Fail Safe Electric Mortise Lock, Conventional Cylinder, 03 Lever, A Rose, Satin Stainless Steel Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 400mA

Base Material: Stainless Steel

Bolt Projection: 3/4″

Commercial Residential: Commercial

Cylinder Type: Conventional Cylinder

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9492EL-Fail Safe

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Keying: Keyed Different

Keys: Included

Leverknob Design: 03 Lever

Limited Warranty: 1 Year

Lock Face Size: 8″ x 1-1/4″

Of Keys: 2

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Pins: 6

Power: Hard Wired

Roseescutcheon Design: A Rose

Screws: Combination

Series: L9090 Series Electrified Mortise Lock

Std Keyway: C

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Electric Mortise Lock

Type: Electric Locks

Unit of Measure: Each
