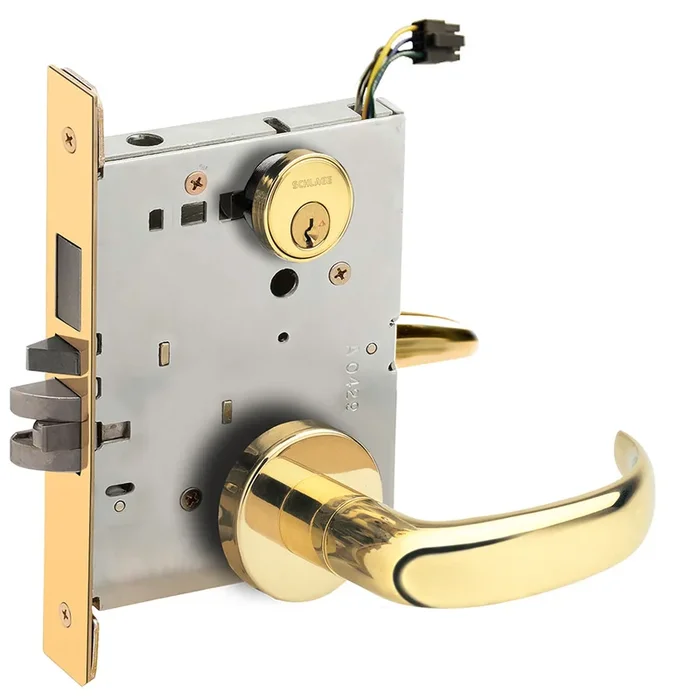

Grade 1 Electric Mortise Lock by Schlage – Fail Safe Security Solution

Description

Schlage L9492ELP 17A 605 Grade 1 Electric Lock with Fail Safe Instructions

Schlage L9492ELP 17A 605 Grade 1 Electric Mortise Lock combines robust security with cutting-edge technology, making it an ideal choice for commercial applications. This Grade 1 Fail Safe lock features a conventional cylinder and a polished brass finish, ensuring both durability and a touch of elegance. The lock is field reversible, allowing for easy installation on doors with a thickness of 1-3/4 inches. Designed for versatility, the L9492ELP accepts a universal input voltage of 12 or 24VDC, with fail safe and fail secure functions that can be effortlessly switched in the field. The innovative RX switch enhances security through improved detection of the inside lever while maintaining sensitivity, and it can be added without opening the lock case. With a 3/4-inch bolt projection, this electric mortise lock not only meets fire ratings of up to three hours but also complies with ADA accessibility standards. The package includes two keys, and the unit is hard-wired for reliability. Backed by a one-year limited warranty, the Schlage L9492ELP is engineered to provide long-lasting performance and peace of mind for building professionals and discerning homeowners alike.

Grade 1 Elec wDB, Fail Safe

Grade 1 Fail Safe Electric Mortise Lock, Conventional Cylinder, 17 Lever, A Rose, Bright Brass Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 400mA

Base Material: Brass

Bolt Projection: 3/4″

Commercial Residential: Commercial

Cylinder Type: Conventional Cylinder

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: 605/US3

Finish Family: Polished Brass

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9492EL-Fail Safe

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Keying: Keyed Different

Keys: Included

Leverknob Design: 17 Lever

Limited Warranty: 1 Year

Lock Face Size: 8″ x 1-1/4″

Of Keys: 2

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Pins: 6

Power: Hard Wired

Roseescutcheon Design: A Rose

Screws: Combination

Series: L9090 Series Electrified Mortise Lock

Std Keyway: C

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Electric Mortise Lock

Type: Electric Locks

Unit of Measure: Each
