Grade 1 Elec wDB, Fail Safe – Schlage Electric Mortise Lock

Description

Schlage L9492ELP 02A 626 Grade 1 Electric Fail Safe Door Hardware

Schlage L9492ELP 02A 626 Grade 1 Electric Mortise Lock offers robust security with advanced electrified technology, making it ideal for commercial applications. This Grade 1 Fail Safe lock features a conventional cylinder and a sleek satin chromium plated finish that enhances both aesthetics and durability. Its field-reversible handing ensures versatile installation, accommodating various door configurations. Designed for functionality, this electric mortise lock operates on a universal input voltage of 12 or 24VDC, allowing for easy adjustments to fail safe or fail secure modes with a simple switch flip within the lock case. The innovative RX switch enhances security by monitoring lever usage, providing an improved detection level that balances security and user convenience.With a bolt projection of ¾ inch and a fire rating of 3 hours, the Schlage L9492ELP is built to withstand demanding environments while ensuring safety. Installation requires a door thickness of 1-3/4 inches, making it suitable for most commercial doors. This lock includes 2 keys and features a keyed different system, ensuring unique access for each lock. Backed by a 1-year limited warranty, it combines reliability with cutting-edge technology for peace of mind in any setting.

Grade 1 Elec wDB, Fail Safe

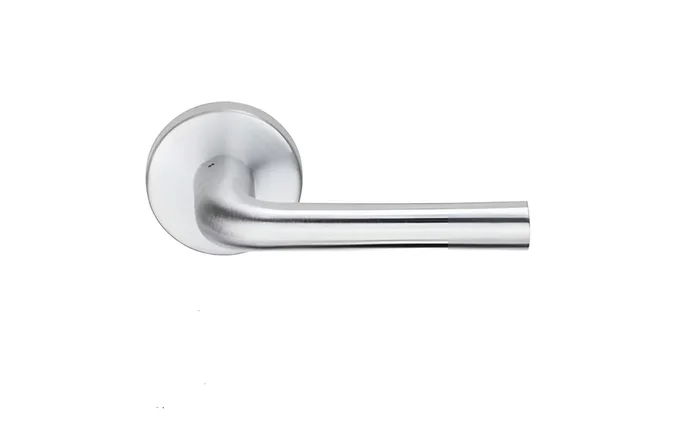

Grade 1 Fail Safe Electric Mortise Lock, Conventional Cylinder, 02 Lever, A Rose, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 400mA

Base Material: Brass or Bronze

Bolt Projection: 3/4″

Commercial Residential: Commercial

Cylinder Type: Conventional Cylinder

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9492EL-Fail Safe

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Keying: Keyed Different

Keys: Included

Leverknob Design: 02 Lever

Limited Warranty: 1 Year

Lock Face Size: 8″ x 1-1/4″

Of Keys: 2

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Pins: 6

Power: Hard Wired

Roseescutcheon Design: A Rose

Screws: Combination

Series: L9090 Series Electrified Mortise Lock

Std Keyway: C

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Electric Mortise Lock

Type: Electric Locks

Unit of Measure: Each
