Grade 1 Elec noDB Fail Safe Electric Mortise Lock by Schlage

Description

Schlage L9092ELJ 02A 626 RX Grade 1 Electric NoDB Fail Safe Lock

Schlage L9092ELJ 02A 626 RX Grade 1 Elec noDB, Fail Safe is a Grade 1 Fail Safe Electric Mortise Lock designed for commercial applications where security meets convenience. Featuring a satin chromium plated finish, this lock not only offers durability but also aesthetic appeal. The lock is equipped with a Schlage FSIC Prep Less Core, making it user-friendly for future keying changes. This innovative lock utilizes universal input voltage, accepting both 12VDC and 24VDC, with fail safe and fail secure functions easily selectable in the field. The advanced RX switch enhances the monitoring of the inside lever, balancing robust security with a high sensitivity to user interaction. Installation is straightforward, and with field-reversible handing, adapting to different door configurations is effortless. Boasting a bolt projection of 3/4″ and compatible with doors of 1-3/4″ thickness, the L9092ELJ is built for high-traffic environments. It also meets ADA compliance standards, ensuring accessibility for all users. With a fire rating of up to 3 hours, this lock enhances safety without compromising performance. Backed by a limited 1-year warranty, the Schlage L9092ELJ is a reliable choice for securing your premises effectively.

Grade 1 Elec noDB, Fail Safe

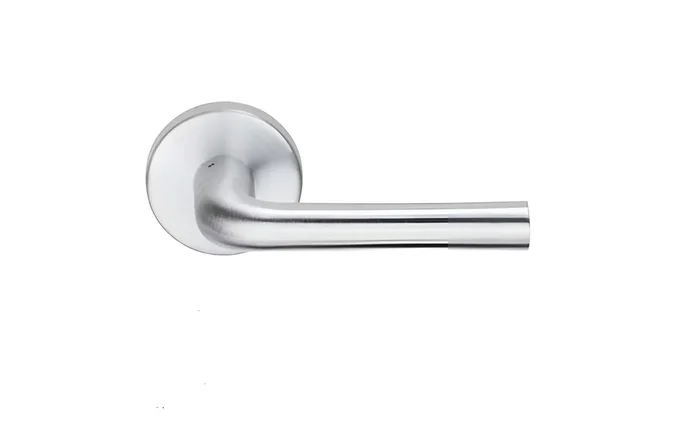

Grade 1 Fail Safe Electric Mortise Lock, Schlage FSIC Prep Less Core, 02 Lever, A Rose, Request to Exit, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 400mA

Base Material: Brass or Bronze

Bolt Projection: 3/4″

Commercial Residential: Commercial

Cylinder Type: Schlage FSIC Prep Less Core

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9092EL-Fail Safe

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Leverknob Design: 02 Lever

Limited Warranty: 1 Year

Lock Face Size: 8″ x 1-1/4″

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Power: Hard Wired

Roseescutcheon Design: A Rose

Screws: Combination

Series: L9090 Series Electrified Mortise Lock

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Electric Mortise Lock

Switch Type: Request to Exit

Type: Electric Locks

Unit of Measure: Each
