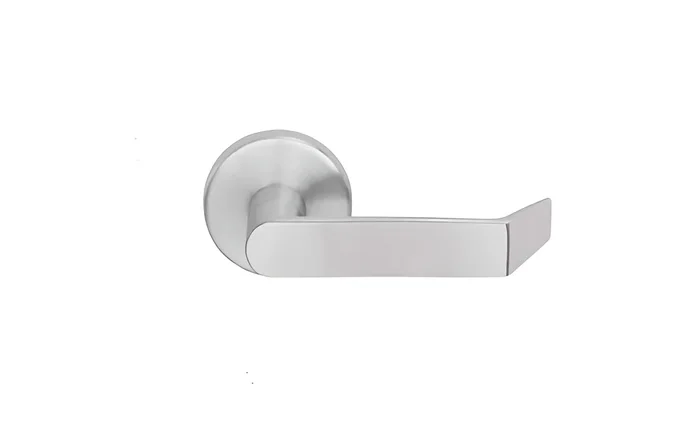

Grade 1 Elec Both Lvrs wDB – Schlage Electric Mortise Lock

Description

Schlage L9495ELL 06A 626 Grade 1 Electric Dual Levers with DB Instructions

Schlage L9495ELL 06A 626 Grade 1 Elec Both Lvrs, wDB is a premium fail-safe electric mortise lock designed to provide exceptional security and convenience for commercial properties. This Grade 1 lock features a satin chromium plated finish, offering a sleek, matte silver appearance that integrates seamlessly into modern architectural designs.Equipped with a field-reversible handing, the L9495ELL allows for easy installation regardless of door orientation. The universal input voltage supports both 12VDC and 24VDC, ensuring flexibility in various applications. Users can easily switch between fail safe and fail secure functions directly within the lock case, enhancing operational versatility.The innovative RX switch monitors the inside lever with heightened detection sensitivity, balancing robust security with user-friendly access. With a bolt projection of ¾ inch and an installation depth suitable for 1-3/4 inch doors, this lock is engineered for reliability. Additionally, it is ADA compliant and accessible, meeting essential regulatory standards.With a fire rating of up to 3 hours, the Schlage L9495ELL ensures safety without compromising on style. Backed by a limited 1-year warranty, this electric mortise lock stands as a durable solution for any commercial space, providing peace of mind and ease of use.

Grade 1 Elec Both Lvrs, wDB

Grade 1 Fail Safe Electric Mortise Lock, Less Cylinder, 06 Lever, A Rose, Satin Chromium Plated Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 400mA

Base Material: Brass or Bronze

Bolt Projection: 3/4″

Commercial Residential: Commercial

Cylinder Type: Less Cylinder

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9495EL-Fail Safe

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Leverknob Design: 06 Lever

Limited Warranty: 1 Year

Lock Face Size: 8″ x 1-1/4″

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Power: Hard Wired

Roseescutcheon Design: A Rose

Screws: Combination

Series: L9090 Series Electrified Mortise Lock

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Electric Mortise Lock

Type: Electric Locks

Unit of Measure: Each
