Grade 1 Elec Both Lvrs – Schlage Electric Mortise Lock

Description

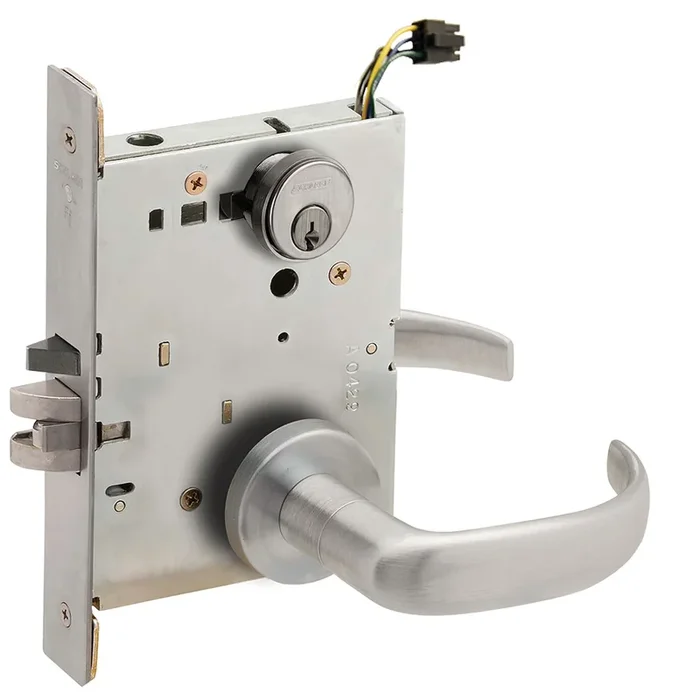

Schlage L9093ELP 17A 630 Grade 1 Electric Dual Levers, No DB

Schlage L9093ELP 17A 630 Grade 1 Elec Both Lvrs, noDB is a top-tier electric mortise lock designed for commercial applications, delivering both security and convenience. This Grade 1 fail-safe lock features a durable satin stainless steel finish that not only looks professional but also stands up to the rigors of daily use. The 17 lever design, combined with a field-reversible handing, ensures versatility in various installations. With universal input voltage compatibility of 12 or 24VDC, this lock allows for easy adaptability to existing systems. The user-selectable fail safe/fail secure functions can be configured in the field, offering enhanced flexibility. The innovative RX switch monitors the inside lever, providing improved detection levels while balancing security and ease of use.Built to last, the L9093ELP boasts a robust 3/4″ bolt projection and is fire-rated for up to 3 hours, ensuring maximum safety in emergencies. Additionally, it comes with two keys, a conventional cylinder, and is ADA compliant, making it accessible to all. With a limited warranty of one year, this electric mortise lock is an exceptional choice for those seeking reliable and advanced door hardware solutions.

Grade 1 Elec Both Lvrs, noDB

Grade 1 Fail Safe Electric Mortise Lock, Conventional Cylinder, 17 Lever, A Rose, Satin Stainless Steel Finish, Field Reversible

The Schlage L909x Series is the next generation of electrified mortise lock. The series utilizes the latest technology to offer tremendous utility and flexibility. The universal input voltage will accept 12 or 24VDC and fail safe/fail secure functions are user selectable in the field by flipping a switch in the lock case. The all new RX switch monitors the inside lever with enhanced detection level that balances security with lever sensitivity, and can be added in the field without opening the lock case.

Attributes

Manufacturer surcharge: 4.5%

Accessible: Yes

Ada Compliance: Yes

Amp Draw: 400mA

Base Material: Stainless Steel

Bolt Projection: 3/4″

Commercial Residential: Commercial

Cylinder Type: Conventional Cylinder

Door Thickness: 1-3/4″

Dust Box: Plastic

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 9093EL-Fail Safe

Grade: Grade 1

Handing: Field Reversible

Installation: Commercial

Keying: Keyed Different

Keys: Included

Leverknob Design: 17 Lever

Limited Warranty: 1 Year

Lock Face Size: 8″ x 1-1/4″

Of Keys: 2

Operating Voltage: 12VDC/24VDC

Pack Qty: 1

Pins: 6

Power: Hard Wired

Roseescutcheon Design: A Rose

Screws: Combination

Series: L9090 Series Electrified Mortise Lock

Std Keyway: C

Std Strike Height: 4-7/8″

Std Strike Number: 10-072

Std Strike Type: ASA

Std Strike Width: 1-1/4″

Subtype: Electric Mortise Lock

Type: Electric Locks

Unit of Measure: Each
