Grade 1 Dormitory Lock – BEST Electrical and Mechanical Door Hardware

Description

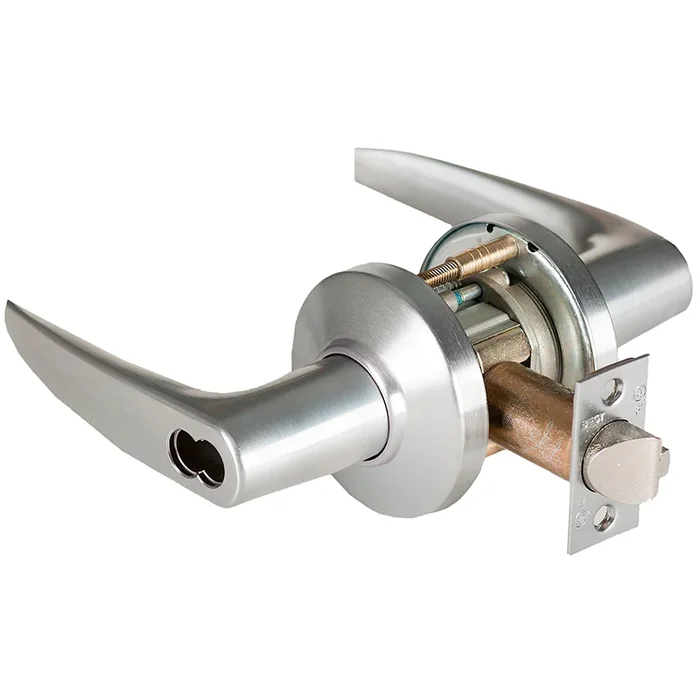

Best 9K37T16CS3626 Best Cylindrical Lock

Stanley Best 9K37T16CS3626 9K Series 2-3/4″ Backset 7 Pin Dormitory 16 Lever and C Rose with ANSI Strike Less Core Satin Chrome Finish

• Built To Tight Tolerances, To Provide The Highest Level Of Mechanical Security And Enhance The Integrity Of The Lock
• Strong Through-Bolt Mounting Studs Provide For Great Torque Resistance
• Strong Retractor Springs Provide Resistance To Lever Sag
• Quick And Easy Rekeying With Best Interchangeable Cores
• Ansi A156.2 Grade 1

Attributes

Manufacturer surcharge: 7.0%

Ansi: F90

Ansi Function: F90 – Dormitory

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Base Material: Brass, Bronze

Bolt Projection: 9/16″

Bolt Protection: 9/16″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 8-1/8″

Box Height Fraction: 4″

Box Width Fraction: 6-5/8″

Burglar Rated: No

Commercial Residential: Commercial

Country of Origin: Usa

Country of origin: USA

Cylinder Type: SFIC Prep Less Core

Cylinders Present: Single Cylinder

Design: 16C

Door Thickness: 1-3/4″ – 2-1/4″

Finish: Satin Chrome

Finish : Satin Chrome

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: T-Dormitory

Function Family: Dormitory

Grade: Grade 1

Hand: Not Handed

Handing: Non-handed

Installation: Commercial

Latch Backset Dim: 2-3/4″

Latch Bore Diameter: 1″

Latch Number: 8KL3DL

Latch Type: Dead Latch (Guarded)

Lever Knob: Lever

Lever Knob Design: 16 – Lever

Lever Knob Design Name: 16

Leverknob Design: 16 Lever

Leverknob Design Family: Curved Lever

Limited Warranty: 10 Year Warranty

Lock Face Size: 2-1/4″ x 1-1/8″

Manufacturer Function: Dormitory

Maximum Door Thickness: 2-1/4″

Minimum Door Thickness: 1-3/4″

Origin: USA

Pack Height: 4″

Pack Height 2: 8.75″

Pack Length: 8.13″

Pack Length 2: 20.5″

Pack Qty: 1

Pack Volume: 215.31 in³

Pack Volume 2: 2242.19 in³

Pack Width: 6.63″

Pack Width 2: 12.5″

Pins: 6 to 7

Product Height: 4″

Product Length: 8.13″

Product Width: 6.63″

Projection: 2-3/4″

Rose Escutcheon: Rose

Rose Escutcheon Design: C – Rose

Roseescutcheon Design: C Rose

Roseescutcheon Dimensions: 3″

Screws: Combination

Series: 9K Series

Ship Weight: 4.3 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 9K3

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: S3

Std Strike Type: ANSI Curved Lip Strike

Std Strike Width: 1-1/4″

Strike: S3 ANSI Strike

Strike Dimensions: 1-1/4″ x 4-7/8″

Strike Height: 4-7/8″

Strike Number: 8KS3

Strike Type: ASA

Strike Width: 1-1/4″

Subtype: Cylindrical

Type: Mechanical Commercial Locksets

Ul Listing: BHMA A156.2, Series 4000, Grade 1, UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 9

Upc: 887838264541
