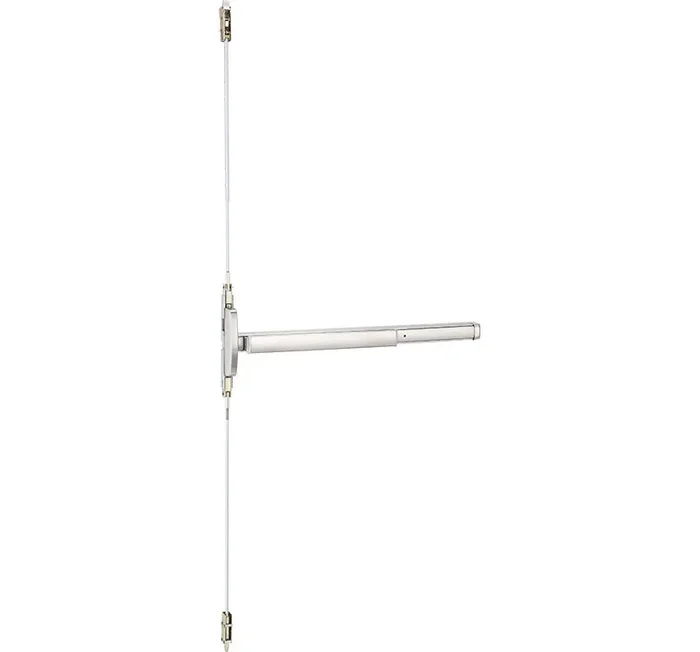

Grade 1 CVR Exit Device by PHI – Concealed Vertical Rod Solution

Description

PHI 2803CD 630 36 Grade 1 CVR Exit Device Instructions

PHI 2803CD 630 36 Grade 1 CVR Exit Device combines robust engineering with refined aesthetics, making it a top choice for commercial applications. This Grade 1 Concealed Vertical Rod Exit Device features a wide stile pushpad design, ensuring ease of use while maintaining an elegant appearance. Designed for storeroom functionality, it includes cylinder dogging for added security. With a length of 36 inches, the device is suitable for metal single and double door applications, accommodating door thicknesses from 1-3/4 inches to 2-1/4 inches and heights ranging from 6′-8″ to 8′-0″. Its heavy wrought brass, bronze, or stainless steel construction ensures durability, while the satin stainless steel finish offers a sleek, modern look. The top latchbolt is deadlocking with a ¾” throw, and the device is UL listed for panic and fire exit hardware, conforming to UL10C and UBC 7-2 standards. It is also BHMA certified to ANSI A156.3 Grade 1. The PHI 2803CD is field reversible, making installation straightforward. With a limited 5-year warranty, this exit device is an excellent solution for enhancing security and accessibility in high-traffic environments.

Grade 1 CVR Exit Device

Grade 1 Concealed Vertical Rod Exit Device, Wide Stile Pushpad, 36″ Device, Storeroom Function, Cylinder Dogging, Satin Stainless Steel Finish, Field Reversible

The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nation’s largest healthcare and educational facilities prefer the Apex for its aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.

For all types of metal single and double door applications.

Available for 1-3/4″ to 2-1/4″ thick, up to 4′-0″ wide by 10-0 high openings. For thicker doors, consult factory. Furnished standard for 1-3/4″ thick, 3′-0″ wide by 6′-8″ to 8′-0″ high openings.

• FUNCTIONS – Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
• BASE MATERIAL – The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
• CHASSIS – Lock Stile Assembly – Investment Cast Steel, Zinc Dichromated.
• VERTICAL RODS – Steel, plated. Top Rod is adjustable from 6′-8″ to 8′-0″ or from 8′-1″ to 10′-0″. Note: All vertical rod lengths are based on 39 15/16” exit device horizontal centerline.
• TOP LATCHBOLT – Stainless Steel, Deadlocking, 3 /4″ throw.
• TOP STRIKE – No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.
• BOTTOM STRIKE – No. S460 Flush mounted, Steel, Black Powder Coated.
• DOGGING – 1/4″ turn hex key dogging standard. NOT available on Fire Exit Hardware.
• TOUCHBAR HEIGHT – 39-15/16″ from floor standard. Specify required height if other than standard.
• REVERSIBLE – Reversible for all functions and trims. Standard packaging RHRB. UL LISTED – Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 33. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA – Devices are BHMA certified for ANSI 156.3, Grade 1.
• FINISHES – 605, 606, 612, 613, 625, 628, 630.
• CYLINDERS – Rim Type, not furnished standard. Specify when required.

Attributes

Manufacturer surcharge: 7.0%

Ansi: A156.3

Baa Qualified: Yes

Base Material: Stainless Steel

Commercial Residential: Commercial

Country of origin: USA

Device Length: 36″

Device Type: Concealed Vertical Rod

Dogging Options: Cylinder Dogging

Door Height: 6′-8″ to 8′

Door Material: Metal

Door Thickness: 1-3/4″

Door Width: 3′

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: No

Grade: Grade 1

Handing: Field Reversible

Includes Trim: No

Installation: Commercial

Limited Warranty: 5 Years

Mechanical Function: Storeroom

Origin: USA

Pack Qty: 1

Physical Appearance: Wide Stile Pushpad

Reversible: Yes

Series: 2800 Series Apex Concealed Vertical Rod Exit Devices

Strike Bottom: S460

Subtype: Concealed Vertical Rod Exit Devices

Top Strike: S519

Type: Exit Devices

Ul Listing: UL10C

Unit of Measure: Each
