Description

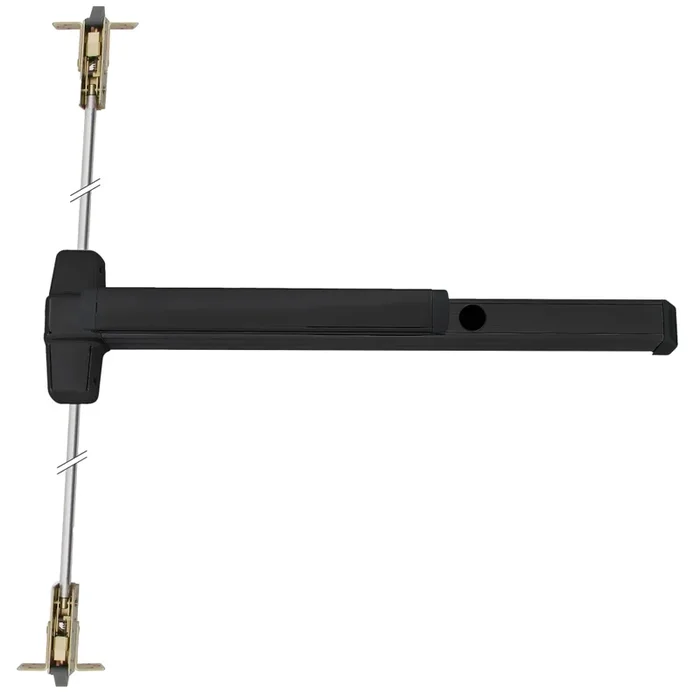

Von Duprin CDSI9947EO 3 315 Grade 1 CVR Exit Device 711
Von Duprin CDSI9947EO 3 315 Grade 1 CVR Exit Device 711 offers an exceptional solution for secure egress in commercial settings. This Grade 1 concealed vertical rod exit device features a wide stile pushpad and is designed for use on single or double metal doors. With a length of 36 inches, it is UL listed for panic exit hardware, ensuring reliable performance in emergency situations. The device includes classroom security functionality, allowing for controlled access without the need for trim. It is equipped with cylinder dogging and a security indicator for enhanced safety. The durable black anodized aluminum finish not only provides a sleek appearance but also ensures longevity in high-traffic areas. Installation flexibility is a hallmark of the CDSI9947EO, as it is non-handed and adjustable to fit door sizes ranging from 28 to 36 inches wide and 80 to 100 inches high. Its robust construction includes a deadlocking top and bottom bolt with a 5/8-inch throw and adjustable vertical rods designed for easy installation. With a 3-year limited warranty, the Von Duprin CDSI9947EO stands as a reliable choice for building professionals seeking durable and efficient exit solutions.
Grade 1 CVR Exit Device 711
Grade 1 Concealed Vertical Rod Exit Device, Wide Stile Pushpad, 36″, Classroom Security Less trim, Cylinder Dogging, Security Indicator, Black Anodized Aluminum Finish, Non-Handed
9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.
Grade 1 exit devices available in an array of finishes.
The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1 with a grooved case.
- Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths:
- 2′ — 2′ (610 mm) Door size
- 3′ — 2′ 4′ to 3′ (711 mm to 914 mm) door size
- 4′ — 2′ 10″ to 4′ (864 mm to 1219 mm) door size
- Device centerline from finished floor:
- 39-5/8″ (1006 mm) Standard
- Adjustable from 35-5/8″ (905 mm) to 49-5/8″ (1260 mm)
- Center case dimensions: 8″ x 2-3/4″ x 2-3/8″ (203 mm x 70 mm x 60 mm)
- Mechanism case dimensions: 2-1/4″ x 2-1/4″ (57 mm x 57 mm)
- Projection:
- Pushbar neutral — 3-13/16″ (97 mm)
- Pushbar depressed — 3-1/16″ (78 mm)
- Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16 mm) throw
- Door undercut: 1/4″ (7 mm) recommended
- Top & bottom Latch case: 4-1/2″ x 2-1/8″ x 1-1/2″ (114 mm x 54 mm x 38 mm)
- Vertical rods:
- Round 2-piece adjustable rods
- Top rod adjustable from 6′ 8″ (2027 mm) to 8’4″ (2533 mm).
- Bottom rod adjustable 35-5/8″ (905 mm) to 49-5/8″ (1260 mm).
- Extension rod kits available for doors over 8′ 4″ (2533 mm).
- Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4″ (44 mm) to 2-1/4″ (57 mm) thick metal doors. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Base Material: Aluminum
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Concealed Vertical Rod
Dogging Options: Cylinder Dogging
Door Height: 80″ to 100″
Door Material: Hollow Metal
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 28″ to 36″
Finish: 315/335
Finish Family: Black
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Classroom Security
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9947 Series Concealed Vertical Rod Exit Device
Ship Weight: 19 lbs.
Strike Bottom: 385A
Subtype: Concealed Vertical Rod Exit Devices
Top Strike: 338
Touch Bar Options: Security Indicator
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
