Von Duprin RXQEL9947EO 3 US28 Grade 1 CVR Exit Device 628

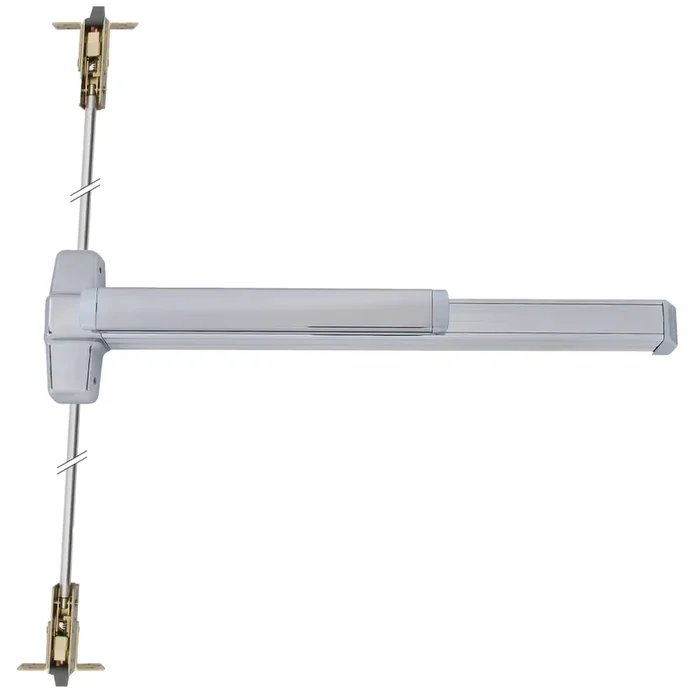

Von Duprin RXQEL9947EO 3 US28 Grade 1 CVR Exit Device 628 offers a robust solution for emergency exit needs, featuring a Grade 1 concealed vertical rod design. This exit device is specifically engineered for single or double metal doors, boasting a wide stile pushpad that enhances accessibility and ease of use. Suitable for doors ranging from 80″ to 100″ in height, the device measures 36″ in length and is UL listed for panic exit hardware, ensuring safety and reliability. The motorized latch retraction system simplifies exit procedures, while the request to exit switch provides added convenience. With its satin aluminum clear anodized finish, this exit device not only meets aesthetic demands but also withstands the rigors of high-traffic environments. The RXQEL9947EO is field reversible, allowing for flexible installation on various door styles. Key specifications include a deadlocking top and bottom bolt with a 5/8″ throw, and adjustable vertical rods accommodating door heights and sizes. Designed for commercial applications, the device is ANSI A156.3 – 2008 compliant, providing peace of mind in emergency situations. Elevate your building’s safety standards with the Von Duprin RXQEL9947EO exit device, a reliable choice for professionals seeking quality and durability.

Grade 1 CVR Exit Device 628

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Device, 80″ to 100″ Door Height, Exit Only, Motorized Latch Retraction, Request to Exit Switch, Less Dogging, Satin Aluminum Clear Anodized Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

Grade 1 exit devices available in an array of finishes.

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1 with a grooved case.

• Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths:
  • 2′ — 2′ (610 mm) Door size
  • 3′ — 2′ 4′ to 3′ (711 mm to 914 mm) door size
  • 4′ — 2′ 10″ to 4′ (864 mm to 1219 mm) door size
• Device centerline from finished floor:
  • 39-5/8″ (1006 mm) Standard
  • Adjustable from 35-5/8″ (905 mm) to 49-5/8″ (1260 mm)
• Center case dimensions: 8″ x 2-3/4″ x 2-3/8″ (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2-1/4″ x 2-1/4″ (57 mm x 57 mm)
• Projection:
  • Pushbar neutral — 3-13/16″ (97 mm)
  • Pushbar depressed — 3-1/16″ (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16 mm) throw
• Door undercut: 1/4″ (7 mm) recommended
• Top & bottom Latch case: 4-1/2″ x 2-1/8″ x 1-1/2″ (114 mm x 54 mm x 38 mm)
• Vertical rods:
  • Round 2-piece adjustable rods
  • Top rod adjustable from 6′ 8″ (2027 mm) to 8’4″ (2533 mm).
  • Bottom rod adjustable 35-5/8″ (905 mm) to 49-5/8″ (1260 mm).
  • Extension rod kits available for doors over 8′ 4″ (2533 mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4″ (44 mm) to 2-1/4″ (57 mm) thick metal doors. Optional 425 SNB available.

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Non-Keyed

Device Length: 36″

Device Type: Concealed Vertical Rod

Dogging Options: Less Dogging

Door Height: 80″ to 100″

Door Material: Hollow Metal

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 28″ to 36″

Electric Options: Motorized Latch Retraction

Finish: 628/US28

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Field Reversible

Includes Cylinders: No

Includes Trim: No

Installation: Commercial

Limited Warranty: 1 Year

Mechanical Function: Exit Only, Accepts Various Trim

Minimum Stile Size: 3-11/16″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 37″

Pack Length 2: 41″

Pack Qty: 1

Pack Volume: 1942.5 in³

Pack Volume 2: 7708 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Product Height: 8″

Product Length: 33″

Product Width: 3.75″

Restrictions: None

Reversible: Yes

Series: 9947 Series Concealed Vertical Rod Exit Device

Ship Weight: 17 lbs.

Strike Bottom: 385A

Subtype: Concealed Vertical Rod Exit Devices

Switch Type: Request to Exit

Top Strike: 338

Trim Type: Less trim

Type: Exit Devices

Ul Listing: UL 305

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
