Grade 1 CVR Exit Device 626 by Von Duprin – Durable Concealed Vertical Rod Exit Device

Description

Von Duprin 9947L-06 4 26D LHR Grade 1 CVR Exit Device 626

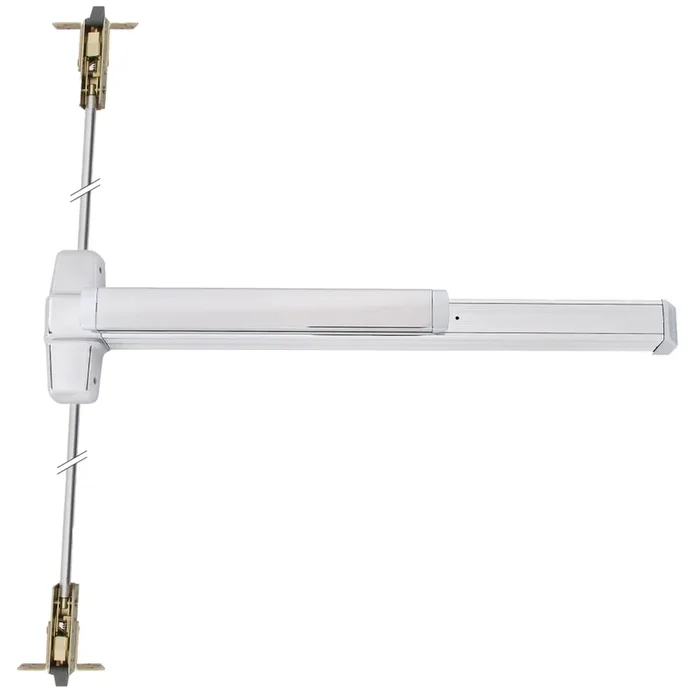

Von Duprin 9947L-06 4 26D LHR Grade 1 CVR Exit Device 626 offers a robust and reliable solution for emergency egress with its Grade 1 Concealed Vertical Rod design. Engineered for single or double metal doors, this exit device features a wide stile pushpad and is suitable for door heights ranging from 80″ to 100″. The device includes a hex key dogging mechanism and a sleek satin chrome finish, ensuring both functionality and aesthetic appeal. With a 48″ device length, the 9947L is UL listed for panic exit hardware, guaranteeing safety and compliance with ANSI A156.3 – 2008 Grade 1 standards. The deadlocking top and bottom bolts provide a secure latch, while the two-piece adjustable vertical rods accommodate various door sizes. The centerline from the finished floor is standard at 39-5/8″ but can be adjusted for flexibility. Installation is straightforward, with fasteners included for metal doors ranging from 1-3/4″ to 2-1/4″ thick. This device not only enhances security but also offers easy field reversibility, catering to different handing requirements. The Von Duprin 9947 Series combines durability with intuitive design, making it an excellent choice for commercial applications.

Grade 1 CVR Exit Device 626

Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 48″ Device, 80″ to 100″ Door Height, Classroom Function, 06 Lever with Escutcheon, Hex Key Dogging, Satin Chrome Finish, Field Reversible

9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.

Grade 1 exit devices available in an array of finishes.

The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1 with a grooved case.

• Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths:
  • 2′ — 2′ (610 mm) Door size
  • 3′ — 2′ 4′ to 3′ (711 mm to 914 mm) door size
  • 4′ — 2′ 10″ to 4′ (864 mm to 1219 mm) door size
• Device centerline from finished floor:
  • 39-5/8″ (1006 mm) Standard
  • Adjustable from 35-5/8″ (905 mm) to 49-5/8″ (1260 mm)
• Center case dimensions: 8″ x 2-3/4″ x 2-3/8″ (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2-1/4″ x 2-1/4″ (57 mm x 57 mm)
• Projection:
  • Pushbar neutral — 3-13/16″ (97 mm)
  • Pushbar depressed — 3-1/16″ (78 mm)
• Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16 mm) throw
• Door undercut: 1/4″ (7 mm) recommended
• Top & bottom Latch case: 4-1/2″ x 2-1/8″ x 1-1/2″ (114 mm x 54 mm x 38 mm)
• Vertical rods:
  • Round 2-piece adjustable rods
  • Top rod adjustable from 6′ 8″ (2027 mm) to 8’4″ (2533 mm).
  • Bottom rod adjustable 35-5/8″ (905 mm) to 49-5/8″ (1260 mm).
  • Extension rod kits available for doors over 8′ 4″ (2533 mm).
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4″ (44 mm) to 2-1/4″ (57 mm) thick metal doors. Optional 425 SNB available.

Attributes

Manufacturer surcharge: 4.5%

Accessible: No

Ada Compliance: No

Ansi: A156.3

Baa Qualified: Yes

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: USA

Cylinder Type: Rim

Device Length: 48″

Device Type: Concealed Vertical Rod

Dogging Options: Hex Key Dogging

Door Height: 80″ to 100″

Door Material: Hollow Metal

Door Thickness: 1-3/4″ – 2-1/4″

Door Width: 34″ to 48″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: No

Fire Rating: No

Grade: Grade 1

Handing: Field Reversible

Includes Cylinders: No

Includes Trim: Yes

Installation: Commercial

Limited Warranty: 3 Years

Mechanical Function: Classroom

Minimum Stile Size: 4-1/2″

Origin: USA

Pack Height: 10.5″

Pack Height 2: 11.75″

Pack Length: 49″

Pack Length 2: 50″

Pack Qty: 1

Pack Volume: 2572.5 in³

Pack Volume 2: 9400 in³

Pack Width: 5″

Pack Width 2: 16″

Physical Appearance: Wide Stile Pushpad

Product Height: 8″

Product Length: 45″

Product Width: 3.75″

Restrictions: None

Reversible: Yes

Series: 9947 Series Concealed Vertical Rod Exit Device

Ship Weight: 25 lbs.

Strike Bottom: 385A

Subtype: Concealed Vertical Rod Exit Devices

Top Strike: 338

Trim Design: Lever with Escutcheon

Trim Part No: 996L-06-R/V 26D LHR

Trim Type: Lever

Type: Exit Devices

Ul Listing: UL 305

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 3
