Description

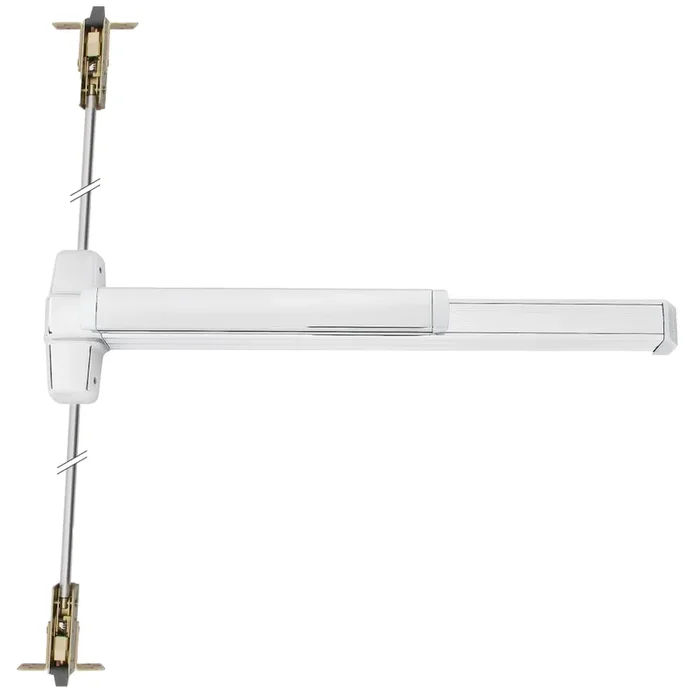

Von Duprin RXQEL9947EO 3 US26 Grade 1 CVR Exit Device 625
Von Duprin RXQEL9947EO 3 US26 Grade 1 CVR Exit Device 625 offers a reliable and sophisticated solution for emergency exits in commercial settings. This Grade 1 concealed vertical rod exit device features a wide stile pushpad and a 36″ device length, designed for doors measuring between 80″ and 100″ in height. With motorized latch retraction and a request-to-exit switch, it facilitates smooth and safe egress. Built to withstand rigorous use, the RXQEL9947EO is UL listed for panic exit hardware and complies with ANSI A156.3 – 2008 Grade 1 standards. Its durable bright chrome finish not only enhances aesthetics but also ensures longevity. The device is field reversible, allowing for flexible installation on single or double metal doors.Vertical rods are adjustable, accommodating door heights, while the deadlocking top and bottom bolts provide added security. The mechanism case dimensions are compact, and the device includes a complete screw pack for installation on 1-3/4″ to 2-1/4″ thick metal doors.Ideal for high-traffic environments, the Von Duprin RXQEL9947EO ensures safety and ease of access, making it an essential addition to any commercial facility.
Grade 1 CVR Exit Device 625
Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Device, 80″ to 100″ Door Height, Exit Only, Motorized Latch Retraction, Request to Exit Switch, Less Dogging, Bright Chrome Finish, Field Reversible
9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.
Grade 1 exit devices available in an array of finishes.
The 9947 Series by Von Duprin is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1 with a grooved case.
- Device functions:Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths:
- 2′ — 2′ (610 mm) Door size
- 3′ — 2′ 4′ to 3′ (711 mm to 914 mm) door size
- 4′ — 2′ 10″ to 4′ (864 mm to 1219 mm) door size
- Device centerline from finished floor:
- 39-5/8″ (1006 mm) Standard
- Adjustable from 35-5/8″ (905 mm) to 49-5/8″ (1260 mm)
- Center case dimensions: 8″ x 2-3/4″ x 2-3/8″ (203 mm x 70 mm x 60 mm)
- Mechanism case dimensions: 2-1/4″ x 2-1/4″ (57 mm x 57 mm)
- Projection:
- Pushbar neutral — 3-13/16″ (97 mm)
- Pushbar depressed — 3-1/16″ (78 mm)
- Latch bolt: Deadlocking top & bottom bolt, 5/8″ (16 mm) throw
- Door undercut: 1/4″ (7 mm) recommended
- Top & bottom Latch case: 4-1/2″ x 2-1/8″ x 1-1/2″ (114 mm x 54 mm x 38 mm)
- Vertical rods:
- Round 2-piece adjustable rods
- Top rod adjustable from 6′ 8″ (2027 mm) to 8’4″ (2533 mm).
- Bottom rod adjustable 35-5/8″ (905 mm) to 49-5/8″ (1260 mm).
- Extension rod kits available for doors over 8′ 4″ (2533 mm).
- Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4″ (44 mm) to 2-1/4″ (57 mm) thick metal doors. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Concealed Vertical Rod
Dogging Options: Less Dogging
Door Height: 80″ to 100″
Door Material: Hollow Metal
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ to 36″
Electric Options: Motorized Latch Retraction
Finish: 625/US26
Finish Family: Polished Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9947 Series Concealed Vertical Rod Exit Device
Ship Weight: 17 lbs.
Strike Bottom: 385A
Subtype: Concealed Vertical Rod Exit Devices
Switch Type: Request to Exit
Top Strike: 338
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
