Description

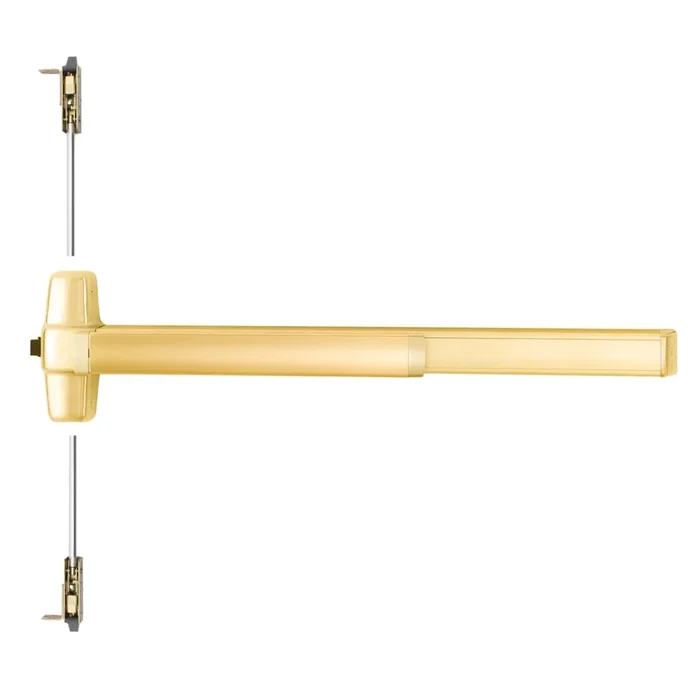

Von Duprin RXQEL9847EO 3 US3 Grade 1 CVR Exit Device 605
Von Duprin RXQEL9847EO 3 US3 Grade 1 CVR Exit Device 605 offers a robust and reliable solution for emergency egress in commercial settings. This Grade 1 concealed vertical rod exit bar features a wide stile pushpad and is designed for doors with heights ranging from 80″ to 100″. With its motorized latch retraction and a request to exit switch, it ensures quick and efficient exit functionality while maintaining a sleek appearance. Constructed for single or double metal doors, the RXQEL9847EO is UL listed for panic exit hardware, meeting ANSI A156.3 – 2008 Grade 1 standards. The device measures 36″ in length and is field reversible, accommodating various door configurations. It includes deadlocking top and bottom bolts with a 5/8″ throw for enhanced security. The adjustable vertical rods make it versatile for different door sizes, and extension rod kits are available for taller doors. With a polished brass finish (605/US3) and a smooth mechanism case, this exit device not only meets functional needs but also adds an aesthetic touch to any commercial environment. Installation is straightforward, and the device is suitable for metal doors ranging from 1-3/4″ to 2-1/4″ thick. Trust in Von Duprin’s commitment to safety and quality with the RXQEL9847EO.
Grade 1 CVR Exit Device 605
Grade 1 Concealed Vertical Rod Exit Bar, Wide Stile Pushpad, 36″ Device, 80″ to 100″ Door Height, Exit Only, Motorized Latch Retraction, Request to Exit Switch, Less Dogging, Bright Brass Finish, Field Reversible
9847/9947 Concealed vertical rod device for use on single or double metal doors, UL listed for panic exit hardware. The 9847 device has a smooth mechanism case and the 9947 device has a grooved case.
The 9847 device has a smooth mechanism case.
The 9847 Series is for use on single or double metal doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 2′ 2′ (610 mm) Door size 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 395 /8″ (1006 mm) Standard Adjustable from 355 /8″ (905mm) to 495 /8″ (1260mm) Center case dimensions 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking top & bottom bolt, 5 /8″ (16mm) throw
- Door undercut: 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: Round 2-piece adjustable rods – Top rod adjustable from 6’8″ (2027mm) to 8’4″(2533mm). Bottom rod adjustable 35 5/8″ (905 mm) to 49 5/8″ (1260 mm). Extension rod kits available for doors over 8’4″ (2533mm).
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal doors. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: Non-Keyed
Device Length: 36″
Device Type: Concealed Vertical Rod
Dogging Options: Less Dogging
Door Height: 80″ to 100″
Door Material: Hollow Metal
Door Thickness: 1-3/4″ – 2-1/4″
Door Width: 28″ to 36″
Electric Options: Motorized Latch Retraction
Finish: 605/US3
Finish Family: Polished Brass
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 3-11/16″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Qty: 1
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9847 Series Concealed Vertical Rod Exit Device
Ship Weight: 17 lbs.
Strike Bottom: 385A
Subtype: Concealed Vertical Rod Exit Devices
Switch Type: Request to Exit
Top Strike: 338
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
Resources
- 98/9947 Service Manual
- 98/9947F and 98/9948F Template
- 9847 Series Concealed Vertical Rod Exit Device Cut Sheet
- CX98/9947 and CX98/9948 Template
- CX98/9947WDC Installations Instructions
- Chexit (CX) Data Sheet
- EL, SS, CX9847WDC/9947WDC Series Device Hinge Stile Preparation Wood Door Template
- QEL 98/99 Baseplate Conversion Series Installation Instructions
- QEL Conversion Kit for 98/99 Series Installation Instructions
- QEL Data Sheet
- QEL Sell Sheet
- Quiet Electric Latch FAQ
- Von Duprin 33/35 and 98/99 ALK Alarm Kit Installation Instructions
- Von Duprin 33/35 and 98/99 End Cap Retrofit Kit Installation Instructions
- Von Duprin Exit Alarm Kit Sell Sheet
- Von Duprin Finishes Chart
- Von Duprin LD Cover Plate for 33/35 & 98/99 Exit Devices Installation Instruction
- Von Duprin Pneumatic Exit Device Installation Instructions
