Description

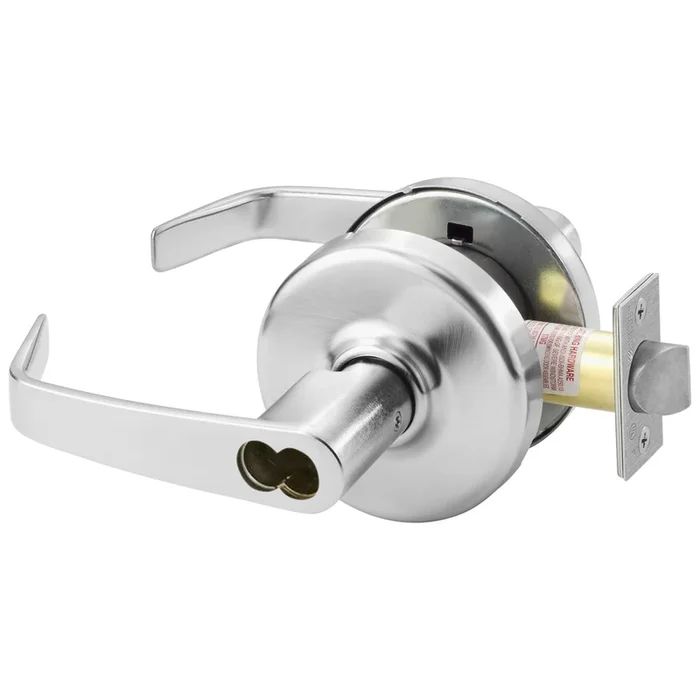

Corbin Russwin CL3162 NZD 626 CL6 Grade 1 Communicating Lock

Corbin Russwin CL3162 NZD 626 CL6 Grade 1 Communicating Lock combines durability and functionality for high-use environments. This Grade 1 lever lockset, featuring the stylish Newport lever design, is crafted from premium materials and finished in elegant satin chrome. The LFIC (Less Core) configuration allows for easy cylinder removal, making it simple to change out keying as necessary. Designed for commercial applications, the CL3100 series meets rigorous performance standards and is suitable for retrofitting most standard 161 cylindrical lock door preparations. It offers versatility with 18 functions, including Hospital Privacy, and is non-handed for flexible installation. The lockset integrates smoothly into existing key systems and accepts Schlage LFIC, ensuring compatibility across various settings. With a robust torque-resistant design, this lockset is built to endure, while its environmental credentials include being made from 68% post-consumer recycled content and boasting an Environmental Product Declaration (EPD) certification. The CL3162 also features a 10-year limited warranty, giving peace of mind in its reliability.Whether in institutional, industrial, or commercial spaces, the Corbin Russwin CL3162 is a trusted choice for security that doesn’t compromise on style or performance.

Grade 1 Communicating Lock

Grade 1 Communicating Cylindrical Lock, Newport Lever, D Rose, LFIC Less Core, Satin Chrome Finish, Non-handed

The CL3100 series is a Grade 1 lever lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes, the CL3100 series subtly complements any high-use commercial, industrial and institutional application.

Grade 1 lever lockset that is available in all standard architectural finishes.

The CL3100 Series interlocks the aligning and latch tubes, which form a ruggest torque resistant “T” in the critical twist area. It is manufactured with the highest quality materials to ensure strength.

• 18 functions available, including Hospital Privacy; most requiring only 2 parts to change function
• Simple cylinder removal provides easy change outs
• 10-year limited warranty
• Made from 68% post-consumer recycled content as per LEED MR credit 4
• Available in 11 hardware finishes and Microshield® antimicrobial coating
• Integrates into most existing facility’s key systems, and accepts Schlage® LFIC
• Retrofits most standard 161 cylindrical lock door preps and is non handed
• Environmental Product Declaration (EPD) certified

Attributes

Ansi: F80

Ansi Function: F80 – Communicating

Base Material: Brass, Bronze

Bolt Projection: 1/2″

Bore Hole Diameter: 2-1/8″

Box Depth Fraction: 10″

Box Height Fraction: 4-1/2″

Box Width Fraction: 8″

Burglar Rated: No

Commercial Residential: Commercial

Country of origin: United States

Cylinder Type: Corbin Russwin 6-Pin LFIC Less Core

Cylinders Present: Double Cylinder

Door Thickness: 1-3/4″ to 2″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 62-Communicating

Function Family: Communicating

Grade: Grade 1

Handing: Non-handed

Installation: Commercial

Latch Bore Diameter: 1″

Lever Knob: Lever

Lever Knob Design Name: Newport

Leverknob Design: NZ – Newport Lever

Leverknob Design Family: Straight Return Lever

Limited Warranty: 10 Year Warranty

Lock Face Size: 1-1/8″ x 2-1/4″

Manufacturer Function: Communicating

Maximum Door Thickness: 2″

Minimum Door Thickness: 1-3/4″

Origin: United States

Pack Height: 4.5″

Pack Height 2: 10.5″

Pack Length: 10″

Pack Length 2: 15.5″

Pack Qty: 1

Pack Volume: 360 in³

Pack Volume 2: 2359.88 in³

Pack Width: 8″

Pack Width 2: 14.5″

Pins: 6

Product Height: 4.5″

Product Length: 10″

Product Width: 8″

Projection: 2-7/8″

Rose Escutcheon: Rose

Roseescutcheon Design: D Rose

Roseescutcheon Dimensions: 2-3/4″

Screws: Wood/Machine Screws

Series: CL3100 Series Grade 1 Cylindrical Lever Locks

Ship Weight: 7 lbs.

Std Latch Backset Dim: 2-3/4″

Std Latch Number: 780F82

Std Latch Type: Deadlatch

Std Strike Height: 4-7/8″

Std Strike Number: SA114

Std Strike Type: ANSI Curved Lip Strike

Std Strike Width: 1-1/4″

Strike Dimensions: 1-1/4″ x 4-7/8″

Subtype: Cylindrical Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: ANSI A156.2, Series 4000, Grade 1, UL Listed

Unit of Measure: Each

Unit of Measure 2: Case

Unit of Measure 2 Qty: 6
