Grade 1 Classroom No DB Lock – Sargent Electrical and Mechanical Door Hardware

Description

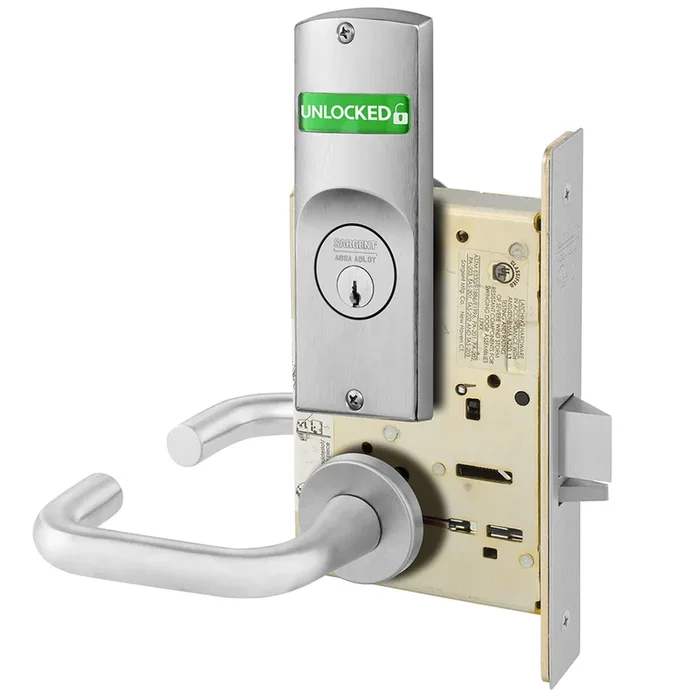

Sargent V10-8237 LNJ 26D Grade 1 Classroom Door Hardware, No DB Instruction

Sargent V10-8237 LNJ 26D Grade 1 Classroom No DB offers unmatched strength and durability, making it an ideal choice for high-traffic environments. This Grade 1 Classroom Mortise Lock features a conventional cylinder and a J lever design with an LN rose, ensuring both functionality and aesthetics. The visual single indicator outside provides clear communication with its green/red locked/unlocked text, enhancing user experience. Designed to exceed ANSI/BHMA A156.13 Series 1000 standards, the Sargent 8200 Mortise Lock is built for maximum security and performance. It is UL-cUL listed for three-hour fire doors and windstorm applications, ensuring safety in critical areas. The lock’s robust construction includes a thru-bolted lever trim and a strengthened cylinder retainer, offering added security against unauthorized access. With flexibility in design, the lock is available in various lever styles and architectural finishes, making it suitable for diverse applications such as offices, hospitals, and educational institutions. Additionally, its multifunctional lock body simplifies installation and maintenance, reducing inventory needs. Backed by a 10-year warranty, the Sargent V10-8237 exemplifies reliability. Whether you need a secure solution for a classroom or a commercial space, this mortise lock stands as a benchmark in the industry.

Grade 1 Classroom No DB

Grade 1 Classroom Mortise Lock, Conventional Cylinder, J Lever, LN Rose, Indicator with Text, Visual Single Indicator Outside, Unlocked/Locked, Green/Red, Satin Chrome Finish, Non-Handed

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability

Constructed with the highest quality components to provide maximum security, durability and performance.

Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

Features:

• ANSI/BHMA Grade 2 certified for cycle and strength requirements
• UL-cUL listed for three-hour fire doors and windstorm applications
• Thru-bolted lever trim and strengthened cylinder retainer
• Available with security key systems (Degree, Signature, KESO, and XC)
• Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
• 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
• Available with behavioral health trim
• 10-year warranty
• Patented design and construction

Benefits:

• Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
• Security: Security features provide resistance against unauthorized entry and vandalism.
• Flexibility & Aesthetics: Visual designwith a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
• Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.

Attributes

Accessible: Yes

Ada Compliance: Yes

Ansi: A156.13, Series 1000, Grade 1 Operational

Ansi Function: F05 – Classroom

Application: Indicator with Text

Baa Qualified: Yes

Bolt Projection: 3/4″ Latch

Burglar Rated: No

Cam Number: 13-0664

Cam Type: Sargent

Case Dimensions: 5-31/32″ x 4-3/32″

Commercial Residential: Commercial

Country of origin: USA

Cylinder Length: 1-1/8~

Cylinder Type: Conventional Cylinder

Door Thickness: 1-3/4″

Finish: 626/US26D

Finish Family: Matte Silver

Fire Rated: 3 Hours {A}

Fire Rating: 3 Hours {A}

Function: 37-Classroom

Grade: Grade 1

Handing: Non-Handed

Installation: Commercial

Keying: Keyed Different

Keys: Cut

Leverknob Design: J Lever

Leverknob Design Family: Curved Return Lever

Limited Warranty: 10 Years

Lock Face Size: 8 In. x 1-1/4 In.

Of Keys: 2

Origin: USA

Pack Height: 4.38″

Pack Length: 9.25″

Pack Qty: 1

Pack Volume: 227.64 in³

Pack Width: 5.63″

Pins: 6

Pocket Dimensions: 6-5/8″ x 4-1/2″

Projection: 2-3/16″

Roseescutcheon Design: LN Rose

Roseescutcheon Dimensions: 2-1/8″

Screws: Combination

Series: 8200 Line Lever Mortise Locks

Ship Weight: 6.1 lbs.

Std Keyway: LA

Std Latch Backset Dim: 2-3/4 In.

Std Latch Type: Dead Latch (Guarded)

Std Strike Height: 4-7/8 In.

Std Strike Number: 80-0110

Std Strike Type: ANSI Strike

Std Strike Width: 1-1/4 In.

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Ul Listing: UL 10C, cUL

Unit of Measure: Each

Resources

• 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
• 7800/8200 Series Mortise Locks Installation Instructions
• 7900/8200 Series Mortise Locks Installation Instructions
• 8200 Line Lever Mortise Locks Cut Sheet
• 8200 Mortise Sectional Indicator Trim Template
• Sargent 8200 Series Environmental Product Declaration (EPD)
• Sargent 8200 Series Mortise Locks Sell Sheet
• Video: 8200 Series Mortise Lock Installation
