Description

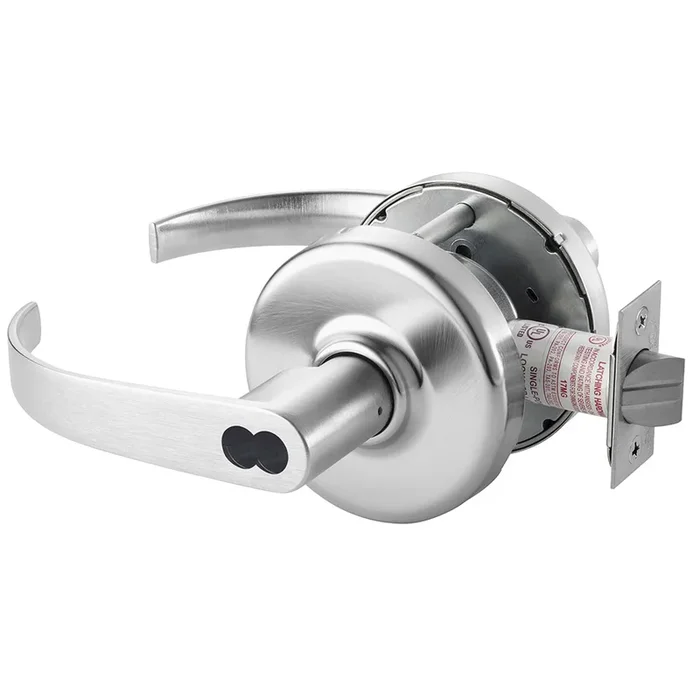

Corbin Russwin CLX3355 PZD 626 M08 Grade 1 Classroom Lock
Corbin Russwin CLX3355 PZD 626 M08 Grade 1 Classroom Lock is an exceptional choice for securing high-traffic spaces while maintaining a stylish aesthetic. This Grade 1 cylindrical lock features a Princeton lever design and is finished in a sleek satin chrome, ensuring both durability and elegance. Built to withstand the demands of commercial environments, it offers a non-handed installation, making it versatile for various door applications. The CLX3300 Series meets ANSI/BHMA Grade 1 standards, showcasing its strength and reliability. It supports SFIC (Small Format Interchangeable Core) preparation, allowing for easy rekeying and maintenance. With a bolt projection of 1/2″ and a latch bore diameter of 1″, this lock is designed for doors between 1-3/4″ and 2″ thick. Additionally, the lock is fire-rated for up to 3 hours, adding an extra layer of safety in emergencies. The large rose design complements modern decor, while its limited 10-year warranty ensures peace of mind. This lock is perfect for educational facilities, offices, and other commercial settings where both security and style are paramount. Choose the Corbin Russwin CLX3355 for a reliable locking solution that meets your needs.
Grade 1 Classroom Lock
Grade 1 Classroom Cylindrical Lock, Princeton Lever, D Rose, SFIC Less Core, Satin Chrome Finish, Non-handed
The CLX3300 Series ANSI/BHMA Grade 1 cylindrical lock is designedto secure high-traffic spaces where aesthetics are important. Manufactured of the highest-quality materials to provide durability, strength, and reliability, it is also available in all industry-standard finishes and a variety of decorative levers, so you’ll never have to sacrifice style for strength. It supports all cylinder formats – from fixed to interchangeable cores, and is the ideal choice for new construction and retrofit projects.
Grade 1 locks with the strength to secure high-traffic openings with design options to complement any decor.
Attributes
Ansi: F84
Ansi Function: F84 – Classroom
Base Material: Brass, Bronze
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 10″
Box Height Fraction: 4-1/2″
Box Width Fraction: 8″
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: United States
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4″ to 2″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 55-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: Princeton
Leverknob Design: PZ – Princeton Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Year Limited Warranty
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Classroom
Maximum Door Thickness: 2″
Minimum Door Thickness: 1-3/4″
Origin: United States
Pack Height: 4.5″
Pack Length: 10″
Pack Qty: 1
Pack Volume: 360 in³
Pack Width: 8″
Pins: 6 or 7
Product Height: 4.5″
Product Length: 10″
Product Width: 8″
Projection: 2-15/16″
Rose Escutcheon: Rose
Rose Escutcheon Design Family: Large Rose
Roseescutcheon Design: D Rose
Roseescutcheon Dimensions: 3-1/2″
Screws: Wood/Machine Screws
Series: CLX3300 Series Grade 1 Cylindrical Lever Locks
Ship Weight: 7 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 867F21
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: SA114
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed
Unit of Measure: Each
Resources
- CLX3300 Series Cylindrical Lock FAQ
- CLX3300 Series Cylindrical Lock Sell Sheet
- Video: ASSA ABLOY Premium Bored Lock Whiteboard
