Description

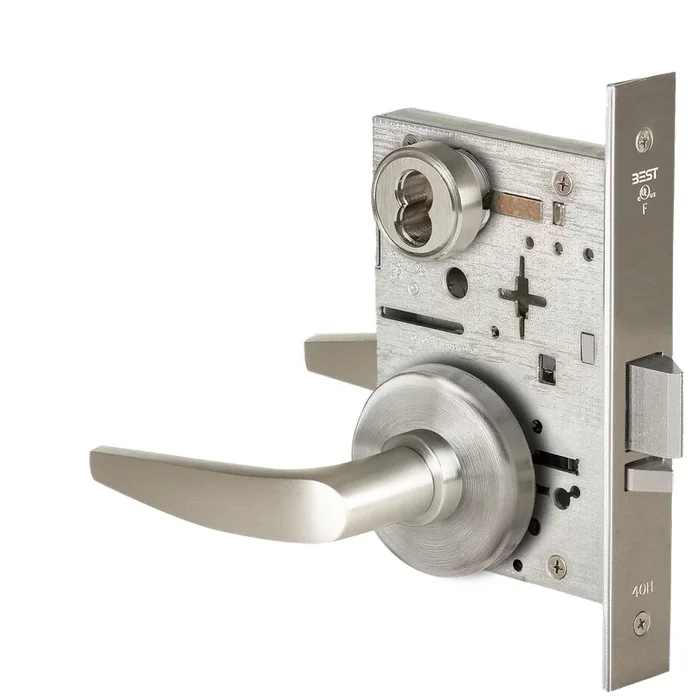

Best 45H7R16H619 Grade 1 Classroom Lock
BEST 45H7R16H619 Grade 1 Classroom Lock delivers advanced security with exceptional durability, making it an ideal choice for commercial environments. This Grade 1 mortise lock features a 16 lever design with an H rose, providing a sleek satin nickel finish that complements various architectural styles. Engineered for high-traffic areas, its robust construction includes a one-piece stainless steel latch that enhances strength by providing 50% more surface contact with the strike. Designed for reliability, the 45H series operates smoothly thanks to its roller bearing hub mechanism, minimizing wear and ensuring long-term functionality. Installation is straightforward, facilitated by a reversible latch that allows easy handing changes without opening the lock case, along with self-aligning trim for quick and accurate setup. Constructed from 0.095″ cold rolled steel with a corrosion-resistant coating, this lock is built to withstand the rigors of daily use. The 45H7R16H619 also incorporates a limited lifetime warranty, ensuring peace of mind for users. With a fire rating of 3 hours and compatibility with SFIC housing less core cylinders, this mortise lock is a versatile and dependable option for maintaining security in classrooms and other commercial spaces.
Grade 1 Classroom Lock
Grade 1 Classroom Mortise Lock, 16 Lever, H Rose, SFIC Housing Less Core, Satin Nickel Finish, Field Reversible
The BEST 45H Series Mortise Lock has advanced features, improved functionality and unique versatility. This durable mortise lock is reliable and flexible in any commercial or industrial setting. Heavy duty in both protection and performance, the 45H is the ideal security solution when strength and dependability are required. Free egress and overall security are never compromised. All the while, the 45H Series remains a low maintenance product that is easy to reconfigure and install.
Mortise locks and deadbolts delivering exceptional strength, security, and durability.
With precision-engineered components and robust design features, BEST’s 45H mortise lock series is ideal for high traffic applications. Installation is quicker and easier thanks to carefully designed features that simplify handing changes, alignment, and assembly.
- Superior strength and security. A solid one-piece stainless steel latch that provides 50% more surface contact with the strike to make the lock stronger and more secure.
- Reliable performance. The45H series locks deliver smooth, wear-resistant operationvia a roller bearing hub mechanism,
- Premium materials. Featuring a case,cover, and armored frontmanufactured from 0.095″ cold rolled steel with a corrosion-resistant coating.
- Varied aesthetics. The 45H series is visually compatible with different architectural styles and aesthetics due to itswide variety of lever styles and trims.
- Enhanced durability. The precision-engineered curve on the latch reduces wear to the strike andenhances cycle life.
- Easy to install. The reversible latch rotates 180 degrees, enabling easy handing changes without opening the 45H series case. The self-aligning trim makes installation easy, fast and accurate.
Attributes
Manufacturer surcharge: 7.0%
Ansi: F05
Ansi Function: F05 – Classroom
Baa Qualified: Yes
Base Material: Brass, Bronze
Bolt Projection: 3/4″ Latch
Box Depth Fraction: 11-1/2″
Box Height Fraction: 3″
Box Width Fraction: 9-3/4″
Burglar Rated: No
Case Dimensions: 5-7/8″ x 4-1/16″
Commercial Residential: Commercial
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Cylinders Present: Single Cylinder
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 619/US15
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: R-Classroom
Function Family: Classroom
Grade: Grade 1
Handing: Field Reversible
Installation: Commercial
Lever Knob: Lever
Lever Knob Design Name: 16
Leverknob Design: 16 Lever
Leverknob Design Family: Curved Lever
Limited Warranty: Limited Lifetime Warranty
Lock Face Size: 8″ x 1-1/4″
Manufacturer Function: Classroom
Maximum Door Thickness: 1-3/4″
Minimum Door Thickness: 1-3/4″
Origin: USA
Pack Height: 3″
Pack Height 2: 12.25″
Pack Length: 11.5″
Pack Length 2: 12.75″
Pack Qty: 1
Pack Volume: 336.38 in³
Pack Volume 2: 1639.97 in³
Pack Width: 9.75″
Pack Width 2: 10.5″
Pins: 7
Pocket Dimensions: 6-5/8″ x 4-1/4″
Product Height: 3″
Product Length: 11.5″
Product Width: 9.75″
Projection: 2-15/16″
Rose Escutcheon: Rose
Roseescutcheon Design: H Rose
Roseescutcheon Dimensions: 2-3/4″
Screws: Wood/Machine Screws
Series: 45H Series Mortise Locks
Ship Weight: 6.4 lbs.
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 45H
Std Latch Type: Faceplate
Std Strike Height: 4-7/8″
Std Strike Number: 40HST1
Std Strike Type: ANSI Curved Lip Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: ANSI A156.13, Series 1000, Grade 1, UL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 4
