Description

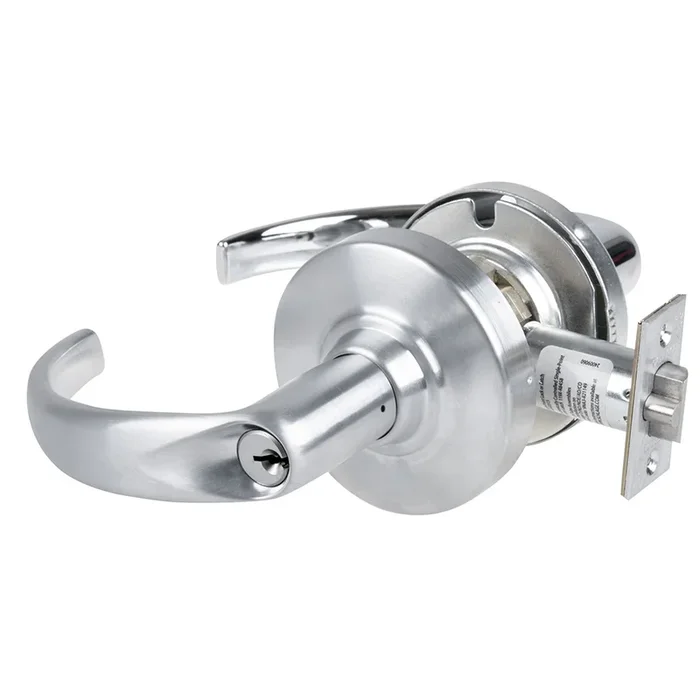

Schlage ND81PD SPA 626 14-028 Grade 1 Accessible Storeroom Lock
Schlage ND81PD SPA 626 14-028 Grade 1 Accessible Storeroom Lock combines security and accessibility with its robust design. This Grade 1 lock features the stylish Sparta lever and a non-handed configuration, making it suitable for various door types. Designed to fit doors with thicknesses ranging from 1-5/8 inches to 2-1/8 inches, the ND81PD offers a standard 3-3/4 inch backset for easy installation. Crafted with a satin chrome finish, this lock not only enhances aesthetic appeal but also boasts durability with a zinc-plated lock chassis for corrosion resistance. The 1/2-inch throw deadlocking latch bolt ensures enhanced security, while the ANSI curved lip strike complements its robust performance. With a fire rating of 3 hours, the ND81PD is suitable for high-demand environments like healthcare, education, and commercial spaces. This storeroom lock includes a 6-pin Everest 29 S123 keyway and comes with two nickel silver keys, offering multiple keying options such as interchangeable cores and master keying. Schlage’s ten-year limited warranty demonstrates confidence in the ND Series’ quality and longevity, ensuring reliable performance even after millions of cycles. For a secure and stylish solution, the Schlage ND81PD is the ideal choice for professionals and discerning homeowners alike.
Grade 1 Accessible Storeroom
Grade 1 Accessible Storeroom Lock, Sparta Lever, Standard Cylinder, 3-3/4″ Backset, Satin Chrome Finish, Non-Handed
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
Proven, easy-to-install lever locks with extensive function, keying, trim and finish capabilities.
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, hammer blow, lever torque,lever pull and other tests. This means confidence that the lock will last, whether the application calls for high abuse resistance or just operation over millions of cycles—without any degradation in performance.
- Handing:All ND-Series lever locksets are non-handed.
- Door Thickness:1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” – 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset:2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate:Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis:Zinc plated for corrosion resistance.
- Latch Bolt:Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim:Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike:ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys:6-pin Everest 29 S123keyway standard with two patented nickel silver keys per lock.
- Keying Options:Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty:Ten-year limited for all functions including Vandlgard.
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Ansi: ANSI A156.2 Series 4000, Grade 1
Ansi Function: F86 – Storeroom
Baa Qualified: Yes
Bolt Projection: 1/2″
Bore Hole Diameter: 2-1/8″
Box Depth Fraction: 9-1/2″
Box Height Fraction: 4-3/4″
Box Width Fraction: 8-1/4″
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Cylinder
Cylinders Present: Single Cylinder
Door Thickness: 1-5/8 In. to 2-1/8 In.
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: 3 Hours {A}
Fire Rating: 3 Hours {A}
Function: 81-Accessible Storeroom Lock
Function Family: Storeroom
Grade: Grade 1
Handing: Non-handed
Installation: Commercial
Keys: Cut
Latch Bore Diameter: 1″
Lever Knob: Lever
Lever Knob Design Name: Sparta
Leverknob Design: SPA – Sparta Lever
Leverknob Design Family: Curved Return Lever
Limited Warranty: 10 Years
Lock Face Size: 1-1/8″ x 2-1/4″
Manufacturer Function: Accessible Storeroom Lock
Maximum Door Thickness: 2-1/8″
Minimum Door Thickness: 1-5/8″
Of Keys: 2
Origin: Mexico
Pack Height: 4.75″
Pack Height 2: 10″
Pack Length: 9.5″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Volume: 372.28 in³
Pack Volume 2: 2394.84 in³
Pack Width: 8.25″
Pack Width 2: 14.63″
Pbs Options: ‘4541274,217718659,4541421
Pins: 6
Product Height: 3.44″
Product Length: 6.66″
Product Width: 3.5″
Projection: 3-1/2″
Rose Escutcheon: Rose
Roseescutcheon Design: 3-7/16″ Rose Diameter
Roseescutcheon Dimensions: 3-7/16″
Screws: Wood/Machine Screws
Series: ND Series Lever Locks
Ship Weight: 5 lbs.
Std Latch Backset Dim: 3-3/4 In.
Std Latch Number: 14-028
Std Latch Type: Deadlatch
Std Strike Height: 4-7/8″
Std Strike Number: 10-025
Std Strike Type: ANSI Strike
Std Strike Width: 1-1/4″
Strike Dimensions: 1-1/4″ x 4-7/8″
Subtype: Cylindrical Lock
Type: Locks, Cylinders, Cores, Keyblanks
Ul Listing: UL/cUL Listed
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 6
