Description

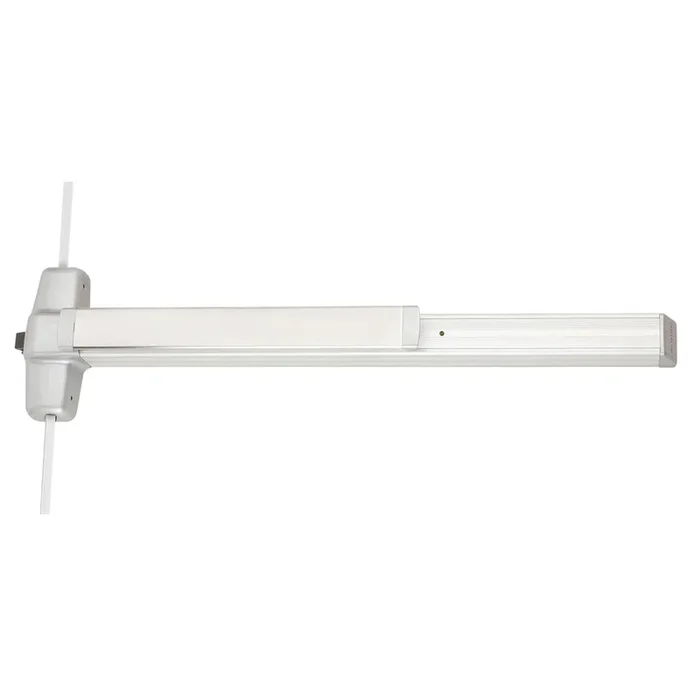

Von Duprin 9957L-NL-06 4 26D LHR Grade 1 3-Point Exit Device, Finish 626
Von Duprin 9957L-NL-06 4 26D LHR Grade 1 3Pt Exit Device is engineered for reliability and safety in commercial settings. This Grade 1 three-point exit device is designed for 48″ wide doors with an 84″ height, featuring a night latch function and hex dogging for added convenience. It is UL listed for panic exit hardware, ensuring compliance with safety standards. The 9957 series accommodates stock hollow metal doors with 86 or 161 cutouts and is field reversible, allowing for flexible installation. Its robust construction includes a deadlocking anti-friction top and bottom bolt, providing a secure closure with a 5/8″ throw. Additionally, the satin chrome finish (626) adds a touch of sophistication while ensuring durability. Designed to withstand the demands of high-traffic environments, the device includes vertical rods made from 1/2″ square tubing, suitable for doors up to 7′. Extension rods for taller doors are available, ensuring versatility. The wide stile pushpad design simplifies operation, making it user-friendly for all. With a limited 3-year warranty and easy installation, the Von Duprin 9957L-NL-06 is an ideal choice for professionals seeking a dependable and effective exit solution for their commercial properties.
Grade 1 3Pt Exit Device 626
Grade 1 Three-Point Exit Bar, 48″ Device, 84″ Door Height, Night Latch Function, 06 Lever with Escutcheon, Hex Dogging, Satin Chrome Finish, Field Reversible
9857/9957 Three-point latching device for all types of single or double doors, UL listed for panicexit hardware. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod andlatch guards are available to protect the bottom rod of the exit device from damage by impactsof carts or gurneys passing through doors.
The 9957 Series covers stock hollow metal doors with 86 or 161 cutouts.
The 9957 Series by Von Duprin has a grooved case and is UL listed for panic exit hardware.The three-point latching device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 3913/16″ (1011 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw Deadlocking rim bolt, 3 /4″ (19mm) throw
- Door undercut: 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2008
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 48″
Device Type: Three-Point Locking
Dogging Options: Hex Dogging
Door Height: 84″
Door Material: Wood or Metal
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 34″ to 48″
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Field Reversible
Includes Cylinders: No
Includes Trim: Yes
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Night Latch
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 49″
Pack Length 2: 50″
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 45″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9957 Series 3-Point Locking Exit Device
Ship Weight: 26 lbs.
Strike Bottom: 304L
Strike Standard: 299
Subtype: Three-Point Locking Exit Devices
Top Strike: 299
Trim Design: Lever with Escutcheon
Trim Part No: 996L-NL-06-R/V 26D LHR
Trim Type: Lever
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
