Description

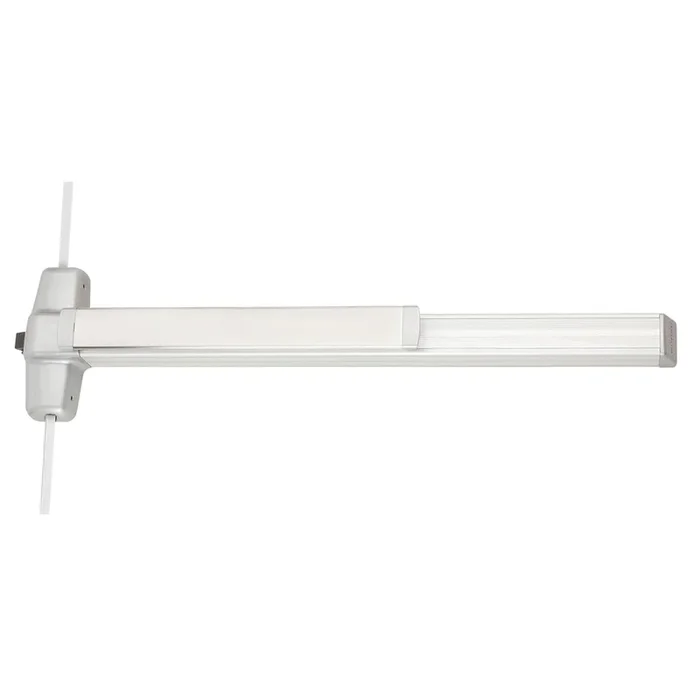

Von Duprin QEL9957EO 3 26D Grade 1 3-Point Exit Device, Finish 626
Von Duprin QEL9957EO 3 26D Grade 1 3Pt Exit Device 626 delivers robust security and reliable functionality for commercial environments. This Grade 1, 36-inch exit device is designed for doors with a height of 84 inches, featuring motorized latch retraction for enhanced ease of use. Engineered for exit-only applications, it is UL listed for panic exit hardware, ensuring safety compliance in emergency situations. The QEL9957EO utilizes a three-point latching mechanism suitable for both single and double doors, accommodating standard hollow metal doors with 86 or 161 cutouts. Its satin chrome finish not only enhances durability but also adds a sleek, modern appearance. This device is field reversible, allowing for flexible installation options to meet various building needs. Key specifications include a deadlocking anti-friction latch bolt with a 5/8″ throw and a 3/4″ deadlocking rim bolt, ensuring secure closure. The design incorporates vertical rods made from 1/2″ square tubing, suitable for doors up to 7 feet tall, with optional extension rods available for taller doors. Installation is straightforward, thanks to the included fasteners for both metal and wood doors. With a limited one-year warranty, the Von Duprin QEL9957EO is a robust solution for effective and efficient door security.
Grade 1 3Pt Exit Device 626
Grade 1 3 Point Exit Bar, 36″ Device, 84″ Door Height, Exit Only, Motorized Latch Retraction, Less Dogging, Satin Chrome Finish, Field Reversible
9857/9957 Three-point latching device for all types of single or double doors, UL listed for panicexit hardware. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod andlatch guards are available to protect the bottom rod of the exit device from damage by impactsof carts or gurneys passing through doors.
The 9957 Series covers stock hollow metal doors with 86 or 161 cutouts.
The 9957 Series by Von Duprin has a grooved case and is UL listed for panic exit hardware.The three-point latching device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 3913/16″ (1011 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw Deadlocking rim bolt, 3 /4″ (19mm) throw
- Door undercut: 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2008
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 36″
Device Type: 3 Point
Dogging Options: Less Dogging
Door Height: 84″
Door Material: Wood or Metal
Door Width: 28″ to 36″
Electric Options: Motorized Latch Retraction
Finish: 626/US26D
Finish Family: Matte Silver
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 1 Year
Mechanical Function: Exit Only, Accepts Various Trim
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 37″
Pack Length 2: 41″
Pack Volume: 1942.5 in³
Pack Volume 2: 7708 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 33″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9957 Series 3-Point Locking Exit Device
Ship Weight: 17 lbs.
Strike Bottom: 304L
Strike Standard: 299
Subtype: Motorized Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
