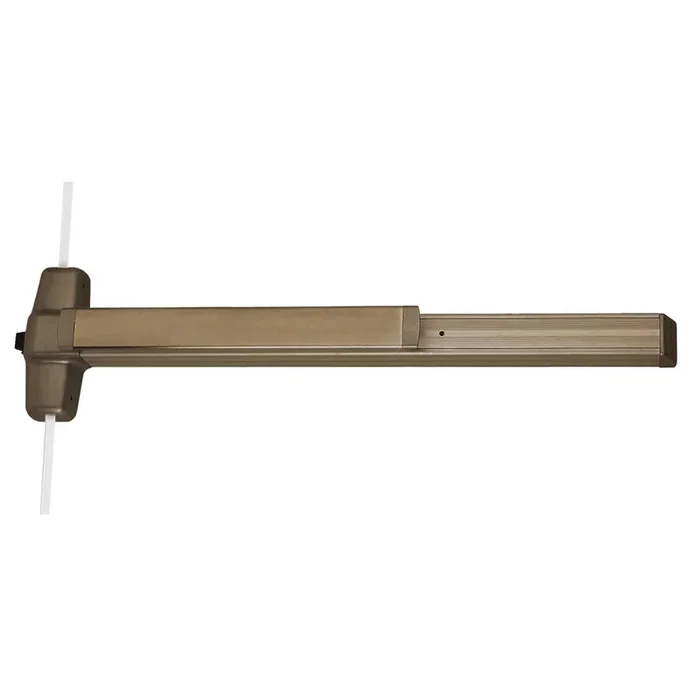

Von Duprin 9957EO 4 US10B Grade 1 3-Point Exit Device, Finish 613
Von Duprin 9957EO 4 US10B Grade 1 3Pt Exit Device 613 is a high-quality three-point exit bar designed to enhance safety and functionality for commercial applications. This Grade 1 exit device is suitable for 48″ door widths and accommodates doors up to 84″ in height, making it a versatile choice for various entry points. The device features a hex dogging mechanism and is finished in a dark oxidized satin bronze oil-rubbed finish, ensuring both durability and aesthetic appeal. Engineered for panic exit scenarios, the 9957EO is UL listed and equipped with a robust three-point latching system that secures single or double doors effectively. It is designed to cover stock hollow metal doors with 86 or 161 cutouts, and its non-handed design simplifies installation. The device includes options for field-selectable functions, accommodating diverse operational needs. Constructed with a deadlocking anti-friction top and bottom bolt, and with a throw of 5/8″ (16mm) for the latch bolt, this exit device ensures reliable security. Optional vertical rod and latch guards can be added for extra protection against impacts from carts or gurneys. With a limited three-year warranty and a robust build, the Von Duprin 9957EO is an ideal choice for maintaining safety and compliance in commercial environments.
Grade 1 3Pt Exit Device 613
Grade 1 Three-Point Exit Bar, 48″ Device, 84″ Door Height, Exit Only, Hex Dogging, Dark Oxidized Satin Bronze Oil Rubbed Finish, Field Reversible
9857/9957 Three-point latching device for all types of single or double doors, UL listed for panicexit hardware. Covers stock hollow metal doors with 86 or 161 cutouts. Vertical rod andlatch guards are available to protect the bottom rod of the exit device from damage by impactsof carts or gurneys passing through doors.
The 9957 Series covers stock hollow metal doors with 86 or 161 cutouts.
The 9957 Series by Von Duprin has a grooved case and is UL listed for panic exit hardware.The three-point latching device is non-handed except when the following device options are used: SD (special dogging), or SS (signal switch).
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3′ 2’4′ to 3′ (711mm to 914 mm) Door size 4′ 2’10” to 4′ (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 3913/16″ (1011 mm)
- Center case dimensions: 8″ x 2 3/4″ x2 3/8″ (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4″ x 2 1/4″ (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16″ (97 mm) Pushbar depressed – 3 1/16″ (78 mm)
- Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8″ (16mm) throw Deadlocking rim bolt, 3 /4″ (19mm) throw
- Door undercut: 1 /4″ (7mm) recommended
- Top & bottom Latch case: 4 1/2″ x 2 1/8″ x 1 1/2″ (114mm x 54mm x 38mm)
- Vertical rods: 1 /2″ square tubing, standard rods accommodate 7′ (2134mm) doors. Top rod length: 34 15/16″ (887mm); Bottom rod length: 31 1/2″ (794mm) Extension rods available in 1′ (205mm) or 3′ (914mm) for doors over 7′. One piece top rod is available for 8′ (2438mm) and 10′ (3048mm) doors.
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4″ (44mm) to 2 1/4″ (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
Attributes
Manufacturer surcharge: 4.5%
Accessible: No
Ada Compliance: No
Ansi: A156.3 2008
Baa Qualified: Yes
Burglar Rated: No
Commercial Residential: Commercial
Country of origin: USA
Device Length: 48″
Device Type: Three-Point Locking
Dogging Options: Hex Dogging
Door Height: 84″
Door Material: Wood or Metal
Door Thickness: 1-3/4″ to 2-1/4″
Door Width: 34″ to 48″
Finish: 613/US10B
Finish Family: Dark Bronze
Fire Rated: No
Fire Rating: No
Grade: Grade 1
Handing: Non-Handed
Includes Cylinders: No
Includes Trim: No
Installation: Commercial
Limited Warranty: 3 Years
Mechanical Function: Exit Only, Accepts Various Trim
Minimum Stile Size: 4-1/2″
Origin: USA
Pack Height: 10.5″
Pack Height 2: 11.75″
Pack Length: 49″
Pack Length 2: 50″
Pack Qty: 1
Pack Volume: 2572.5 in³
Pack Volume 2: 9400 in³
Pack Width: 5″
Pack Width 2: 16″
Physical Appearance: Wide Stile Pushpad
Product Height: 8″
Product Length: 45″
Product Width: 3.75″
Restrictions: None
Reversible: Yes
Series: 9957 Series 3-Point Locking Exit Device
Ship Weight: 20 lbs.
Strike Bottom: 304L
Strike Standard: 299
Subtype: Three-Point Locking Exit Devices
Top Strike: 299
Trim Type: Less trim
Type: Exit Devices
Ul Listing: UL 305
Unit of Measure: Each
Unit of Measure 2: Case
Unit of Measure 2 Qty: 3
