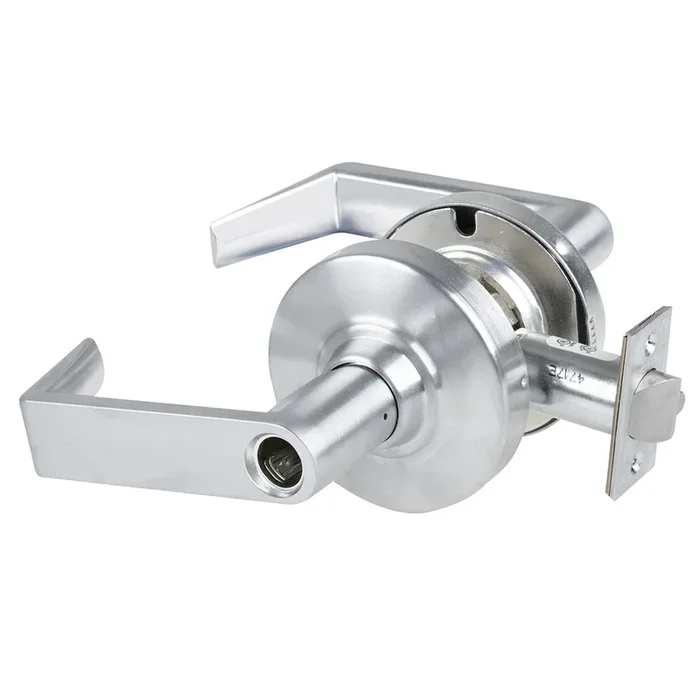

Schlage ND96LDEL RHO 626 Gr1 Vandlgard Storage Fail-Safe Instructions
Schlage ND96LDEL RHO 626 Gr1 Vandlgard Storerm, Fail Safe is a Grade 1 electrified cylindrical lock designed for storeroom applications, ensuring security without compromise. This lock operates on a 12-24V DC power supply and features a fail-safe mechanism, providing peace of mind in high-traffic environments where safety is paramount. Engineered for both high security and fire safety, the ND Series locks are UL Listed, making them suitable for labeled doors requiring reliable single-point locking. The Rhodes lever design not only adds an elegant touch but also enhances functionality, while the lock’s less cylinder configuration allows for versatile installation options. With a low maximum current draw of just 0.23 amps, this lock supports multiple units on a single power supply, making it energy efficient and cost-effective. Its auto-detecting input adapts seamlessly to either electrically locked (EL) or unlocked (EU) modes. The modular Request to Exit (RX) feature can be integrated at any time, enhancing security without the need for additional hardware. Ideal for new constructions or existing buildings, the Schlage ND96LDEL combines robust mechanical features with advanced electrical capabilities, ensuring optimal performance and durability for commercial applications.
Gr1 Vandlgard Storerm,Fail Saf
Grade 1 Electrified Cylindrical Lock, Storeroom Function with Vandlgard, 12-24V DC, Fail Safe, 2-3/4″ Backset, Rhodes Lever, Less Cylinder, Satin Chrome
ND Series locks are available for electrically locking and unlocking controls for high security and fire safety applications.They are UL Listed and rated for both fire and electrical single-point locking on labeled doors. RX feature is available on ND10, ND12, ND80 and ND96 families. Switch is ready to be used in a normally open or normally closed application.
Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.
Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.
Applications
The electrified ND is ideally used in:
- High traffic areas, where line power ensures continuous operation
- New construction, where electrified door prep, hinges and wiring can easily be incorporated into the building
Key Features
All mechanical features plus:
- Auto-detecting 12-24VDC input
- Selectable EL/EU operation
- Low 0.23 amp max current draw that allows multiple locks on a single power supply
- Low 0.010 amp holding current that eliminates “hot levers” in electrically locked applications
- Modular Request to Exit (RX) that can be added at any time
- Inventory friendly–one lock supports 12-24V, EL or EU, with or without RX
- Six electrified functions for application flexibility
Attributes
Manufacturer surcharge: 4.5%
Amp Draw: 0.23
Application: Storeroom Lever
Baa Qualified: Yes
Base Material: Brass or Bronze
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Cylinder
Door Thickness: 1-3/4″ to 2″
Dust Box: None
Finish: 626/US26D
Function: 96EL-Fail Safe
Grade: Grade 1
Installation: Commercial
Latch Backset Dim: 2-3/4″
Leverknob Design: RHO – Rhodes
Limited Warranty: 1 Year
Lock Face Size: 2-1/4″ X 1-1/8″
Operating Voltage: 12VDC/24VDC
Origin: Mexico
Pack Height 2: 10″
Pack Length 2: 16.38″
Pack Qty: 1
Pack Width 2: 14.63″
Pbs Options: ‘4541275,4541421
Power: Hard Wired
Product Height: 4.75″
Product Length: 9.5″
Product Width: 8.25″
Roseescutcheon Design: 3-7/16″ Diameter
Screws: Combination
Series: ND Series Electrified Lever Locks
Ship Weight: 5 lbs.
Std Latch Number: 14-047
Std Latch Type: Guarded Latch
Std Strike Height: 4-7/8″
Std Strike Number: 10-025
Std Strike Type: ASA
Std Strike Width: 1-1/4″
Subtype: Electric Cylindrical Lock
Switch Type: None
Type: Electric Locks
