Gr1 Store Door wDeadbolt by Sargent – Secure and Reliable Door Hardware

Description

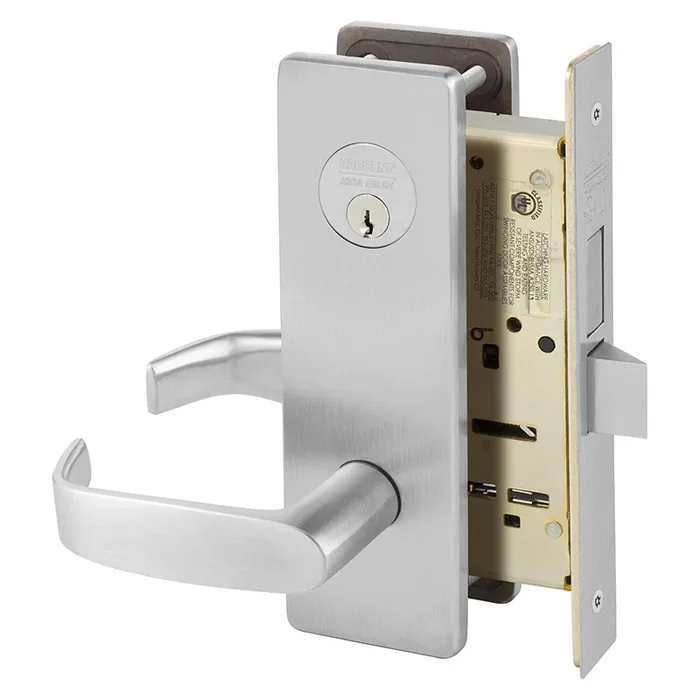

Sargent 8226 LSL 26D Manufacturing Mortise Lock

When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability

Attributes

Ansi Function: F14 – Store Door

Baa Qualified: Yes

Backset: 2-3/4″ Backset

Bolt Projection: 3/4 In. Latch, 1 in. Deadbolt

Bolt Protection: 3/4 In. Latch, 1 in. Deadbolt

Country of Origin: Usa

Country of origin: USA

Cylinder Type: Conventional Cylinder

Design: L Lever and LS Escutcheon

Door Thickness: 1-3/4 In.

Finish: 626/US26D

Finish : Satin Chrome

Fire Rated: 2 Hours {B}

Fire Rating: 2 Hours {B}

Function: 26-Store Door

Grade: Grade 1

Hand: Field Reversible

Handing: Field Reversible

Keying: Keyed Different

Keys: Cut

Keyway: LA

Latch Backset Dim: 2-3/4 In.

Latch Type: Combination Latch and Bolt

Lever Knob Design: L – Lever

Leverknob Design: L – Lever

Limited Warranty: 10 Years

Lock Face Size: 8 In. x 1-1/4 In.

Num Of Keys: 2

Num Pins: 6

Of Keys: 2

Origin: USA

Pack Height: 4.38″

Pack Length: 9.25″

Pack Qty: 1

Pack Volume: 227.64 in³

Pack Width: 5.63″

Pins: 6

Rose Escutcheon Design: LS – Escutcheon

Roseescutcheon Design: LS – Escutcheon

Screws: Combination

Series: 8200 Line Lever Mortise Locks

Ship Weight: 6.1 lbs.

Std Keyway: LA

Std Latch Backset Dim: 2-3/4 In.

Std Latch Type: Combination Latch and Bolt

Std Strike Height: 4-7/8 In.

Std Strike Number: 82-0110

Std Strike Type: ASA Strike

Std Strike Width: 1-1/4 In.

Strike: ASA Strike

Strike Height: 4-7/8 In.

Strike Number: 82-0110

Strike Type: ASA Strike

Strike Width: 1-1/4 In.

Subtype: Mortise Lock

Type: Locks, Cylinders, Cores, Keyblanks

Unit of Measure: Each
