Description

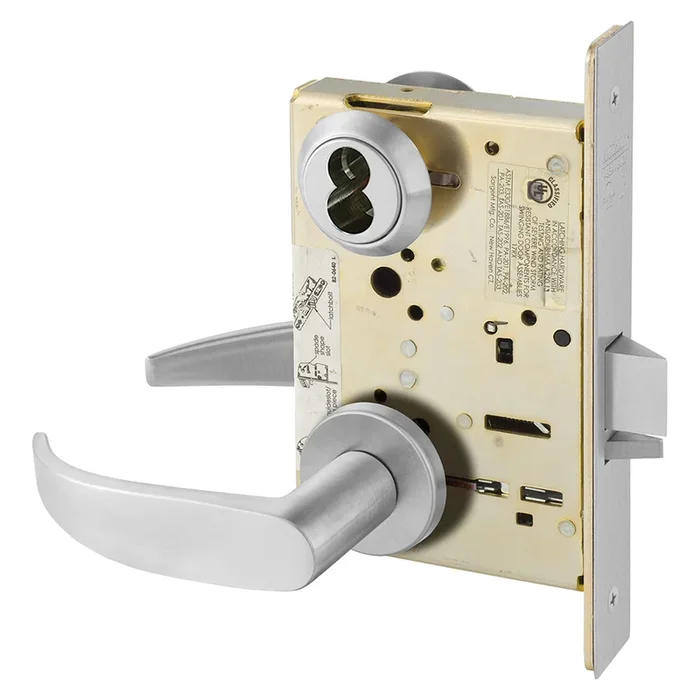

Sargent 70-8258 LNP 26D Gr1 Institutional Privacy Lock, No DB
Sargent 70-8258 LNP 26D Gr1 Institutional Privacy Mortise Lock is engineered for exceptional strength and durability, far exceeding the ANSI/BHMA A156.13 Series 1000 Grade 1 standards. This robust mortise lock, featuring a satin chrome finish, is designed to enhance security in various applications, including offices, hospitals, and schools. With a unique LN rose and P lever, this lock is prepared for an SFIC core, offering flexibility to accommodate various key systems, such as Degree, Signature, KESO, and XC. Its thru-bolted lever trim and reinforced cylinder retainer ensure reliable performance. The lock is UL-cUL listed for three-hour fire doors and windstorm applications, making it suitable for demanding environments. The Sargent 70-8258 boasts a multitude of options, with 58 different functions, six lever designs, and 14 architectural finishes, allowing for seamless integration into any design scheme. Notably, it comes with a 10-year warranty, attesting to its long-lasting reliability.Installation is straightforward thanks to its multifunctional lock body, which simplifies switching functions and minimizes inventory needs. Choose the Sargent 70-8258 for a perfect blend of security, performance, and aesthetic appeal.
Gr1 Institutional Priv, No DB
Institutional Privacy Mortise Lock, LN Rose, P Lever, SFIC Prep Less Core, Satin Chrome
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Constructed with the highest quality components to provide maximum security, durability and performance.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual designwith a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Attributes
Application: Complete Lock
Baa Qualified: Yes
Bolt Projection: 3/4 In.
Country of origin: USA
Cylinder Type: SFIC Prep Less Core
Door Thickness: 1-3/4 In.
Finish: 626/US26D
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 58-Institutional Privacy
Grade: Grade 1
Leverknob Design: P – Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Roseescutcheon Design: LN – Rose
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Locks Installation Instructions
- 7900/8200 Series Mortise Locks Installation Instructions
- 8200 Line Lever Mortise Locks Cut Sheet
- 8200 Mortise Sectional Indicator Trim Template
- Sargent 8200 Series Environmental Product Declaration (EPD)
- Sargent 8200 Series Mortise Locks Sell Sheet
- Video: 8200 Series Mortise Lock Installation
