Sargent 8255 LJ 4 Gr1 Entry Toggle, No DB Instructions

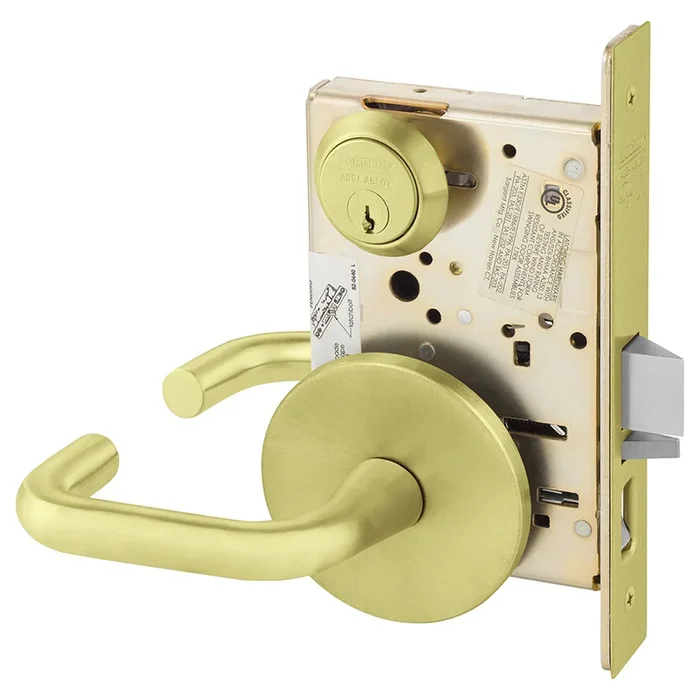

Sargent 8255 LJ 4 Gr1 Entry w/Toggle, No DB is a Grade 1 mortise lock designed for offices and entryways, exemplifying strength and reliability. Featuring a J lever and L rose, this lock is field reversible and utilizes a conventional cylinder for ease of use. The satin brass finish adds an elegant touch, making it suitable for various architectural styles. This robust lock surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, establishing itself as the industry’s benchmark for durability. With UL-cUL listings for three-hour fire doors and windstorm applications, it’s built to withstand the test of time. The thru-bolted lever trim and strengthened cylinder retainer enhance security, while the option for security key systems and multiple functions-including electromechanical-offer flexibility for diverse applications. Installation is simplified with a multifunctional lock body, reducing inventory requirements and ensuring ease of maintenance. Additionally, the Sargent 8255 is available in numerous lever designs, escutcheons, and architectural finishes, allowing customization to fit any project. Backed by a 10-year warranty, this mortise lock is a reliable choice for enhancing security without compromising on style or performance.
Gr1 Entry w/Toggle, No DB
Grade 1 Office or Entry Mortise Lock, J – Lever, L – Rose, Field Reversible, Conventional Cylinder, ASA Strike, Satin Brass
When it comes to strength and durability, SARGENT continues to set standards with the 8200 Mortise lock. The 8200 far surpasses ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry. SARGENT Mortise Locks are designed and constructed with high quality components to provide maximum security, performance and durability
Constructed with the highest quality components to provide maximum security, durability and performance.
Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.
Features:
- ANSI/BHMA Grade 2 certified for cycle and strength requirements
- UL-cUL listed for three-hour fire doors and windstorm applications
- Thru-bolted lever trim and strengthened cylinder retainer
- Available with security key systems (Degree, Signature, KESO, and XC)
- Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
- 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
- Available with behavioral health trim
- 10-year warranty
- Patented design and construction
Benefits:
- Strength & Reliability: Exceeds independent testing, making it the most durable mortise lock in the industry.
- Security: Security features provide resistance against unauthorized entry and vandalism.
- Flexibility & Aesthetics: Visual designwith a variety of functions, lever designs and architectural finishes match a wide range of styles and make it perfect for all types of applications (such as offices, hospitals, behavioral health environments, schools/universities).
- Ease of Installation & Maintenance: Multifunctional lockbody makes switching functions easy and reduces inventory requirements.
Attributes
Baa Qualified: Yes
Bolt Projection: 3/4 In. Latch
Country of origin: USA
Cylinder Type: Conventional Cylinder
Door Thickness: 1-3/4 In.
Finish: 606/US4
Fire Rated: 2 Hours {B}
Fire Rating: 2 Hours {B}
Function: 55-Office or Entry
Grade: Grade 1
Handing: Field Reversible
Keying: Keyed Different
Keys: Cut
Leverknob Design: J – Lever
Limited Warranty: 10 Years
Lock Face Size: 8 In. x 1-1/4 In.
Of Keys: 2
Origin: USA
Pack Height: 4.38″
Pack Length: 9.25″
Pack Qty: 1
Pack Volume: 227.64 in³
Pack Width: 5.63″
Pins: 6
Roseescutcheon Design: L – Rose
Screws: Combination
Series: 8200 Line Lever Mortise Locks
Ship Weight: 6.1 lbs.
Std Keyway: LA
Std Latch Backset Dim: 2-3/4 In.
Std Latch Type: Dead Latch (Guarded)
Std Strike Height: 4-7/8 In.
Std Strike Number: 82-0110
Std Strike Type: ASA Strike
Std Strike Width: 1-1/4 In.
Subtype: Mortise Lock
Type: Locks, Cylinders, Cores, Keyblanks
Unit of Measure: Each
Resources
- 7800/8200 Series Mortise Lock w/Sectional Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Lock w/VN1 Escutcheon Trim & V Series Indicators Installation Instructions
- 7800/8200 Series Mortise Locks Installation Instructions
- 7900/8200 Series Mortise Locks Installation Instructions
- 8200 Line Lever Mortise Locks Cut Sheet
- 8200 Mortise Sectional Indicator Trim Template
- Sargent 8200 Series Environmental Product Declaration (EPD)
- Sargent 8200 Series Mortise Locks Sell Sheet
- Video: 8200 Series Mortise Lock Installation
