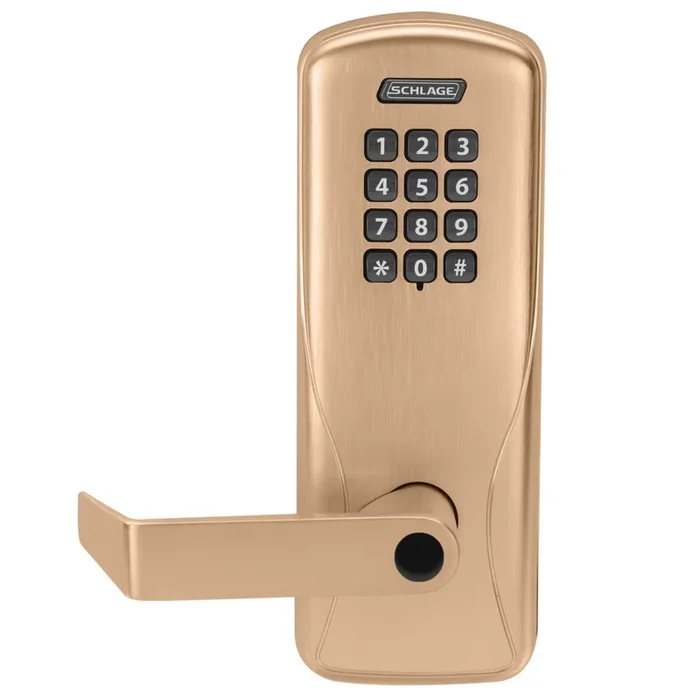

Schlage CO100MS70KPRHO612LR Grade 1 Mortise Lock with Manual Programming Instructions
Schlage Electronics CO100MS70KPRHO612LR Gr 1 Mortise Lock, Manual Prog delivers exceptional security and convenience for classroom and storeroom applications. This Grade 1 mortise lock features a user-friendly keypad and supports up to 500 unique users, making it ideal for environments with multiple personnel. The Rhodes lever design, coupled with a satin bronze clear coated finish, enhances both aesthetics and durability.This standalone electronic lock is manually programmable, storing user rights directly on the device. Each user can be assigned a unique PIN code, simplifying key management and enhancing security by minimizing the number of mechanical keys distributed. Adding or deleting PIN codes is straightforward and can be done right at the door, providing flexibility when managing access. Designed for commercial use, the CO100 is built to withstand extreme temperatures-operating efficiently in environments ranging from -31°F to 151°F. Battery life extends up to two years with four AA batteries, ensuring reliable performance.With its robust construction and advanced features, the Schlage CO100MS70KPRHO612LR Mortise Lock stands out as a reliable solution for enhancing access control in various facilities, offering peace of mind without the complexity of fully networked systems.
Gr 1 Mortise Lock, Manual Prog
Grade 1 Classroom/Storeroom Mortise Lock, Keypad, 500 Users, Less Conventional Cylinder, Rhodes Lever, Spring Latch, Satin Bronze Clear Coated Finish, Right-Handed
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
CO-200 offline lock offers credential reader module options, managing up to 2000 users and audits.
The CO Series offers ideal solutions for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system.
The CO-200 steps up significantly in functionality from CO-100 keypad programmable locks. It can be manually or computer programmed with downloads occurring at the lock via the SUS mobile app on a compatible Android device. Credential use can include 3-6 digit PIN, proximity and magnetic stripe cards; dual authentication card + PIN readers are available for extra security. More importantly, this lock offers up to 2000 users with audit capability to note the who, where and when of building or room access.
CO-200 can work in the same offline system as AD-200, CO-220 and CT5000. They can be manually programmed for basic use or managed with PC-based Schlage Express™ software. Select Software Alliance members also offer access control solutions for the CO-200 with added capability that can include lock schedules and audits. Features and capabilities will vary by system; please visit the Software Management tab for additional details.
Reader options
- Proximity reader (125 kHz)
- Proximity reader with keypad
- Magnetic stripe reader in swipe style (triple track, field configurable)
- Magnetic stripe reader with keypad in swipe style
- Keypad only
User verification
- Capable of credential verification <1 second
- Up to 2,000 users/audits depending on access control software
Programming interface
- Schlage Utility Software (SUS) with compatible Android device transfers programming information from computer to lock using the SUS-A cable connection
- Schlage Express PC-based software or Software Alliances member solutions provide access control management for users, audits and locks
Additional
- Battery life – up to 2 years with 4 AA batteries
- Exterior Temp: -31° to 151°F (-35° to 66°C)
- Interior Temp: 32° to 120°F (0° to 49°C) (battery)
- Humidity: 0 – 100% non-condensing
Chassis
- Cylindrical
- Mortise
- Mortise deadbolt
- Exit trim
- Each offered with LED indicator or push button depending on lock function choice
Cylinder and keys
- Standard keyway: Schlage 6-pin Everest 29 S123 with two patented keys
- Classic and restricted keyways, master keying and grand master keying options
- Key-in-lever, FSIC, and SFIC cylinder options
- Less cylinder options to fit common Sargent®, Corbin Russwin®, Medeco®, Yale®and Falcon®cylinders
Functions
- 70 Classroom/Storeroom (cylindrical and mortise only)
- 50 Office (cylindrical and mortise only)
- 40 Privacy with programmable occupancy indication option
Attributes
Manufacturer surcharge: 4.5%
Accessible: Yes
Ada Compliance: Yes
Amp Draw: 250 mA
Ansi: ANSI/BHMA A156.25 (full outdoor), A156.13 Series 1000 Grade 1
Base Material: Bronze
Battery Life: 2 Years
Bolt Projection: 3/4″
Bolt Throw: 3/4″
Commercial Residential: Commercial
Country of origin: Mexico
Cylinder Type: Less Conventional Cylinder
Design A: RHO – Rhodes Lever
Door Thickness: 1-3/4″
Dust Box: Plastic
Finish: 612/US10
Finish Family: Matte Bronze
Fire Rated: Yes
Fire Rating: 3 Hours {A}
Function: 70-Classroom/Storeroom
Function Family: Storeroom
Grade: Grade 1
Handing: Right-Handed
Installation: Commercial
Keypad Type: Pushbutton
Latch Backset Dim: 2-3/4″
Latch Backset Dimension: 2-3/4″
Leverknob Design: RHO – Rhodes Lever
Leverknob Design Family: Straight Return Lever
Limited Warranty: 2 Years
Lock Platform: Mortise Lock with Keypad
Operating Voltage: 4 to 7 VDC
Origin: Mexico
Pack Qty: 1
Pins: 6
Power: 4 AA Batteries
Projection: 2-15/16″
Reader Technology: Keypad Reader
Rose Number: 03-042 RHO 612
Roseescutcheon Design: RHO – Rhodes
Roseescutcheon Dimensions: 3-7/16″ Diameter
Screws: Combination
Series: CO Series Standalone Electronic Locks
Software Included: No
Std Latch Backset Dim: 2-3/4″
Std Latch Number: 14-049 612
Std Latch Type: Spring Latch (Unguarded)
Std Strike Height: 1-1/4″
Std Strike Number: 10-072 612
Std Strike Type: Mortise Strike
Std Strike Width: 4-7/8″
Subtype: Mortise Locks with Keypad Trim
Type: Integrated and Pushbutton
Ul Listing: UL 294, ULC S319, UL 10C Listed
Unit of Measure: Each
Users: 500
