Description

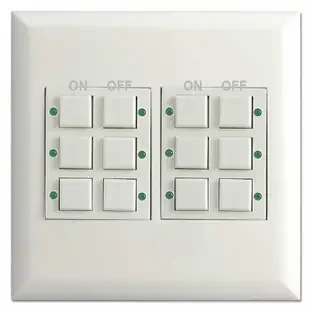

Swap out your older 6-pilot light GE low voltage light station with this Touchplate 12-button control unit for a fresh new look. These units are designed with six pairs of buttons that correspond to the two directions on the vintage GE teeter-totter switches or the more-recently discontinued double square pushbutton switches where one button/one direction was ON, the other button/direction was OFF. Two of these can also be used to replace the GE 12-switch dial-control units if you add another 2-gang box in the wall. Choose from white, almond or ivory for a stylish solution to refresh your existing low voltage set-up. Each switch station has six pairs of 1/2″ square button caps. NOTE: the buttons are NOT engraved – the faint ON/OFF words in the image are just for reference.
ALL COLORS ARE SPECIAL ORDER WITH A 3-WEEK LEAD TIME; NO RETURNS/EXCHANGES
Features
- this 12-button unit is an alternative solution to replace a control station with six GE low voltage pilot light switches on a 2-gang box
- can be installed vertically or horizontally per the direction of your wall box – if installed vertically pairs are left/right; if installed horizontally pairs are top/bottom
- use two of these units mounted in a pair of 2-gang boxes to replace one 2-gang 12-switch GE dial control station RMS-4A
- replaces six RS237P, RS232P, RS239P, RTS-8, RFS-8, RCS2PL, etc. switches in GE, Bryant, and Sierra systems
- note: RR9 pilot light relays are required to power the LED lights; please be sure you have the extra wiring and the RR9 pilot light relays installed
- note: all six relays connected to switch must be the same brand
- 2 wire switches easily adapted to a 3-wire system by doubling the number of buttons with pairs of ON/OFF buttons – one button in a pair is ON, the other button in a pair is OFF
- pilot lights with 6 green LED bulbs that light up when the connected fixtures are ON. (Other six LED’s on lower/OFF buttons will never light up.)
- 1 amp @ 28 volts switch contact rating – designed with reverse polarity for use with GE/Bryant/Sierra systems
- 12 momentary contact switches (6 pairs); dry contact
- easy to install with the free 3 wire to 2 wire low voltage conversion guide included
- 4-1/2″ x 4-1/2″ plastic screwless wall plate
- two 2″ x 1-9/16″ switch cutouts
- 3-9/32″ screw hole spacing center to center in metal yoke for installing to standard wall box (see 2-gang low voltage mounting ring if no box is used)
- back depth is 5/8″; overall depth is 15/16″ from front of button to back of terminal bar
- four 1″ mounting screws
- American made
- white units are stock, ivory and almond are special order with an estimated 2-3 week lead time
- note: The metal flanges on the cover post holes on vintage units are designed to be pinched with pliers to make a tighter fit for the tabs. Adjust them a little bit to get the right tightness to comfortably hold the covers on.
Click Low Voltage Light System Replacement Devices for relays, transformer power supplies, and more switch options.
