Full Mortise Swing Clear Hinge by Hager – Premium Door Hardware

Description

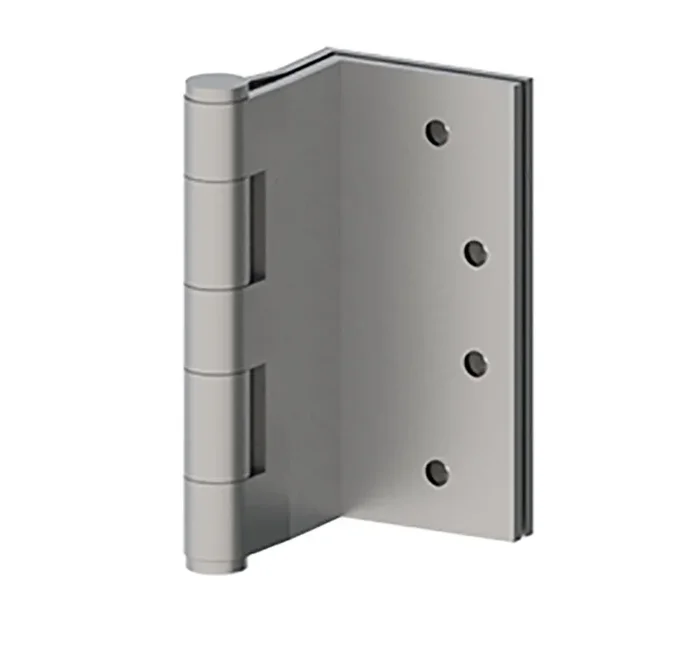

Hager BB1360 4-1/2 US32D Full Mortise Swing Clear Hinge

Hager BB1360 4-1/2 US32D Full Mortise Swing Clear Hinge is a robust solution designed for hollow metal or wood composite doors within medium frequency service settings. Crafted from high-quality stainless steel, this standard weight hinge features a five-knuckle design and boasts a sleek satin stainless steel finish, combining durability with an attractive aesthetic. This full mortise hinge is engineered to meet the stringent ANSI/BHMA A156.1 standards, making it a reliable choice for commercial applications. Its swing clear design ensures that the door swings completely clear of the opening, enhancing accessibility and ease of movement. With a fire rating of 3 hours, the Hager BB1360 is not only functional but also adds a layer of safety to your building. Installation is straightforward, as both leaves are mortised-one into the door and the other into the frame, allowing for seamless integration. The hinge is equipped with removable pins for easy maintenance. Additionally, it comes with a lifetime limited warranty, demonstrating Hager’s commitment to quality and longevity. Choose the Hager BB1360 for your next project and ensure the perfect blend of functionality, safety, and style.

FULL MORTISE, SWING CLEAR HNG

Full Mortise Ball Bearing Swing Clear Hinge, Standard Weight, 4-1/2″, Stainless Steel, 5 Knuckle, Satin Stainless Steel Finish

Ball bearing standard weight stainless steel hinge for use on hollow metal or wood composite doors with hollow metal frames requiring medium frequency service

There are three dimensions to know in order to determine the minimum width of the hinge: door thickness, backset, and clearance required.

Today, the Hager name is synonymous with architectural hinges. In fact, theyare the industry’s premiere designer and manufacturer of architectural hinges, with a product line that offers one of the widest varieties of sizes, shapes, and finishes–all of which meet or exceed ANSI standards.

• Hinges are manufactured in accordance with ANSI/BHMA A156.1. Self-closing hinges and pivots are in accordance with ANSI/BHMA A156.17 using three hinges per opening on a 3’0” x 7’0” x 1-3/4” (914 mm x 2134 mm x 44 mm) door.
• Round corners are available in 1/4” (6 mm) (standard) or 5/8” (16 mm) radius.
• Full Mortise Both leaves are mortised, one leaf in the door and one leaf in the frame (wood door or hollow metal door with wood frame or hollow metal frame). Example: BB1279, 4-1/2” x 4-1/2” (114 mm x 114 mm), US26D
• Half Mortise One leaf is mortised in the door and the other is surface applied to the frame (hollow metal door with channel iron frame). Example: BB1109, 4-1/2” (114 mm), US26D
• Full Surface Both leaves are applied to the surface, one to the door and the other to the frame (metal core door or hollow metal door with channel iron frame). Example: BB2171, 5” (127 mm), USP
• Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame)Example: BB1163, 5” (152 mm), US26D

Attributes

Manufacturer surcharge: 8.75%

Base Material: Stainless Steel

Bearing Type: Ball Bearing

Commercial Residential: Commercial

Finish: 630/US32D

Finish Family: Matte Silver

Fire Rated: 3 Hours

Fire Rating: 3 Hours

Hinge Type: Hinge, Swing Clear

Installation: Commercial

Knuckles: 5

Limited Warranty: Lifetime

Pack Qty: 1

Pin Type: Removable

Series: Hager Commercial Hinges

Subtype: Hinges

Type: Hinges and Pivots

Unit of Measure: Each

Weight: Standard Weight

Resources

• Hager Commercial Hinges Cut Sheet
