Front Load Depository Safe – Black Textured Finish – ESL10 Electronic Keypad by Amsec

Description

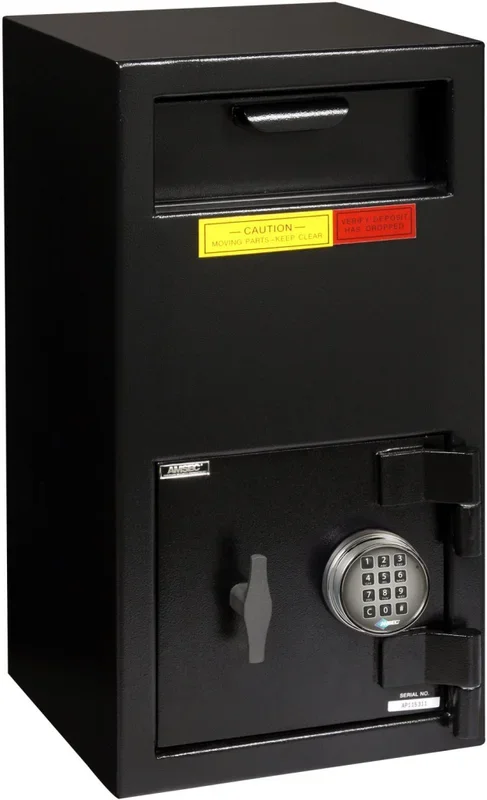

Amsec DSF2714-E1 Front Load Depository Safe, Black, ESL10 Electronic Keypad, 95lbs

Amsec DSF2714-E1 Front Load Depository Safe offers a robust solution for securely storing cash, jewelry, and other valuables. With a sleek black textured finish, this safe is constructed from strong A36 solid steel, ensuring both security and durability. Weighing in at 95 lbs, its “B” Rate construction and formed door jamb provide enhanced resistance against sledgehammer attacks. Designed for convenience, the DSF2714-E1 features a front-loading deposit door with a spacious clearance of 9.75″ x 9.75″, accommodating larger package sizes (4″ D x 2¾” W x 10½” L). The safe is equipped with a UL-listed ESL10 electronic keypad lock, enhancing access control while offering peace of mind with its dual anti-fish baffles. The internal dimensions measure 17.25″ x 13.75″ x 11″, giving you 2,609 cubic inches of storage space. Additional features include three 1″ diameter chromed steel locking bolts and an auxiliary spring-loaded relocking device, ensuring optimal security. The bolt detent system automatically engages the boltwork, providing an extra layer of protection. With four anchor bolt holes standard for secure mounting, the Amsec DSF2714-E1 is the ideal choice for both professionals and discerning homeowners seeking reliable security solutions.

Front Load Depository Safe, Black Textured Finish, ESL10 (UL Type 1) Electronic Keypad, 95lbs

Notice: The info below is not item specific.

DS Series Depository Safes are designed to provide immediate deposits and storage for cash, jewelry and miscellaneous valuables. Deposits can be made through a locked door via a top-loading rotary hopper, a reverse or a front-loading deposit door.

Features:

• Body:
• Strong, formed “B” Rate construction made of A36 solid steel plate for improved security and appearance.
• Formed door jamb for increased resistance to sledgehammer attack.
• Four anchor bolt holes are Standard.
• Door – Model Numbers 2014, 2714 and 3214:
• ½” thick A36 solid steel plate, recessed ½” to increase resistance to pry attack.
• U.L. Group II combo lock (C), U.L. listed dual nose keylock (K).
• Optional electronic locks available.
• Three 1″” diameter chromed steel locking bolts.
• Bolt detent system engages bolt work automatically.
• Auxiliary spring-loaded relocking device.
• Lock and relock protected by large carburized hard plate.
• Wide Body Model 2731:
• Door: (3) 1″ x ½” rectangular plated bolts.
• Unique space-efficient, side-by-side design creates full depth depository and large storage compartment.
• Accepts cash trays up to 13″ x 18″.
• Optional coin rack available on storage compartment door.
• Hopper:
• 2014 is available w/reverse hopper.
• Large package sizes:
• (Top Load Rotary): 4-¾”D x 4-¾”W x 10″L
• (Front/Reverse Load): 4″D x 2-¾”W x 10-½”L
• Recessed, heavy duty 3/16″ construction (1/4″ door).
• Protected by dual “anti-fish” baffles.

Specifications:

Model	Inside Dimensions	Outside Dimensions	Clear Door	Cubic Inches	Weight
DST2014K	11.5 x 13.75 x 11	20.25 x 14 x 14	9.75 x 9.75	1,739	87
DST2014C	11.5 x 13.75 x 11	20.25 x 14 x 14	9.75 x 9.75	1,739	90
DSF2014K	10 x 13.75 x 11	20.25 x 14 x 14	9.75 x 9.75	1513	79
DSF2014C	10 x 13.75 x 11	20.25 x 14 x 14	9.75 x 9.75	1513	82
DSR2014K	10 x 13.75 x 11	20.25 x 14 x 14	9.75 x 9.75	1513	94
DSR2014C	10 x 13.75 x 11	20.25 x 14 x 14	9.75 x 9.75	1513	82
DSC2014KC	Bot 10.25 x 13.75 x 11 Top 6.875 x 13.75 x 12.375	27.25 x 14 x 14	Bot 9.75 x 9.75 Top 6 x 10.375	1513 1127	104
DST2714K	18.5 x 13.75 x 11	27.25 x 14 x 14	9.75 x 9.75	2798	101
DST2714C	18.5 x 13.75 x 11	27.25 x 14 x 14	9.75 x 9.75	2798	104
DSF2714K	17.25 x 13.75 x 11	27.25 x 14 x 14	9.75 x 9.75	2609	108
DSF2714C	17.25 x 13.75 x 11	27.25 x 14 x 14	9.75 x 9.75	2609	95
DST2731CC	Left 18.5 x 14.375 x 18 Right 27 x 16x 18	27.25 x 30.75 x 21	Left 9 x 9.875 Right 22.5 x 14.375	4787 7776	285
DST2731KC	Left 18.5 x 14.375 x 18 Right 27 x 16 x 18	27.25 x 30.75 x 21	Left 9 x 9.875 Right 22.5 x 14.375	4787 7776	285
DSF2731CC	Left 16.75 x 14.375 x 18 Right 27 x 16 x 18	27.25 x 30.75 x 21	Left 9 x 9.875 Right 22.5 x 14.375	4399 7776	276
DSF2731KC	Left 16.75 x 14.375 x 18 Right 27 x 16 x 18	27.25 x 30.75 x 21	Left 9 x 9.875 Right 22.5 x 14.375	4399 7776	276
DST3214CK	Top 12.25 x 13.75 x 11 Bot 11.25 x 13.75 x 11	32.25 x 14 x 14	9.75 x 9.75	Top 1664 Bot 1890	152
DST3214CC	Top 12.25 x 13.75 x 11 Bot 11.25 x 13.75 x 11	32.25 x 14 x 14	9.75 x 9.75	Top 1664 Bot 1890	148
DST3214KK	Top 12.25 x 13.75 x 11 Bot 11.25 x 13.75 x 11	32.25 x 14 x 14	9.75 x 9.75	Top 1664 Bot 1890	152
DSF3214CK	Top 11.25 x 13.75 x 11 Bot 12.5 x 13.75 x 11	32.25 x 14 x 14	9.75 x 9.75	Top 1437 Bot 1890	144
DSF3214CC	Top 11.25 x 13.75 x 11 Bot 12.5 x 13.75 x 11	32.25 x 14 x 14	9.75 x 9.75	Top 1815 Bot 1702	144
DSF3214KK	Top 11.25 x 13.75 x 11 Bot 12.5 x 13.75 x 11	32.25 x 14 x 14	9.75 x 9.75	Top 1815 Bot 1702	144

Attributes

Alternate Codes: AMSDSF2714-ESL10, DSF2714-E1, DSF2714-ESL10

Body Thickness: 3/25″

Bolt Type: 3 1″ Diameter Locking Bolts

Burglary Rating: B Rated Insurance Classification, Burglary Resistant

Category: Burglary & Fire Safes, Depository Safes, Safes

Certifications: UL Listed

Door Application: Safes

Door Clearance: 9.75 IN X 9.75 IN

Door Thickness: 1/2″

Exterior Depth: 1′ 2″

Exterior Height: 2′ 3-1/4″

Finish: Textured Charcoal Gray

Interior Cubic Inches: 2, 609

Interior Depth: 11″

Interior Height: 1′ 5-1/4″

Interior Width: 1′ 1-3/4″

Keypad Type: Splash Proof Keypad, UL Type 1

Lock Type: Electric Keypad Lock

Manufacturer: Amsec

Material: A36 Solid Steel

Mounting: Four Anchor Bolt Holes

Safe Category: Depository Safe

Safe Parts: Auxiliary Spring-Loaded Relocking Devices, Bolt Detent System Engages Boltwork Automatically, Dual Anti-Fish Baffles, Front Load Depository Door, Front loading depository fits large package sizes: 4″D x 2¾”W x 10½”L, Pry-Resistant Recessed Door

Series: DSF2714

Weight: 93lbs
