Description

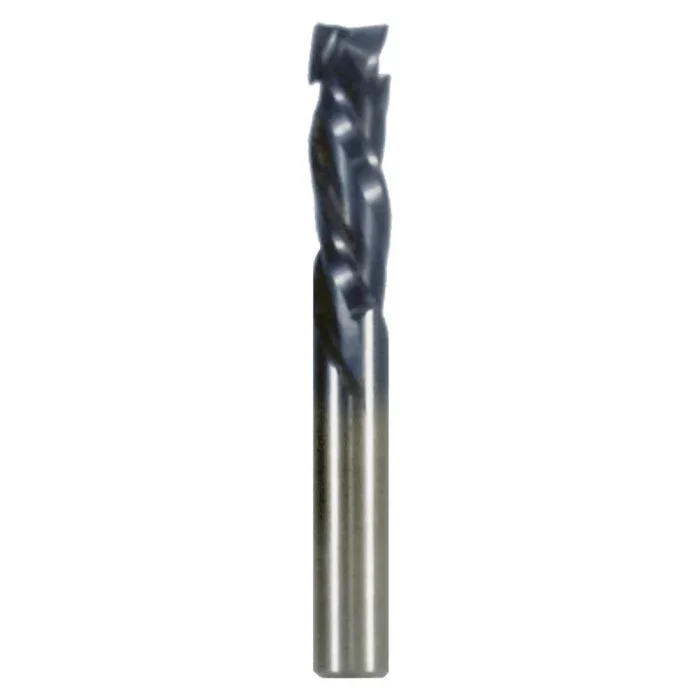

Mortise Compression Spiral Bits feature a shorter up shear length than other compression spiral bits, making them ideal for grooves and mortises, or for through-cuts in thin double sided material (5/8″ thick or less). Rout plywood, melamine and other double-sided materials, as well as hardwood and softwood. For use in CNC, hand-held or table-mounted routers.
More Information
| Manufacturer |
Freud |
| Condition |
New |
| Features |
- Perfect grooves and mortises in delicate materials
- Routs melamine, veneer plywood, hardwood and softwood
- Black I.C.E. coating for cool cutting edge and superior chip evacuation
- Freud Premier Solid Carbide
- Black I.C.E. + Freud TiCo Hi-Density Carbide = 2X increased life and performance vs. standard uncoated bits
- Ideal For: Through cuts in thin double-sided materials
|
| Application |
Veneered Plywood, Hardwoods, Softwoods, Melamine/Laminate, Composites |
| Diameter(D) |
3/8″ |
| Max. RPM |
24,000 RPM |
| # of Cutters Required |
3 |
| Overall Length(L) |
3″ |
| Shank(d) |
3/8″ |
| Suitable for Use With |
Hand Router, Table Router, CNC Machine |
| Type |
Router Bit |
| Carbide Height (H) |
1-1/4″ |
| Upcut Length |
1/4″ |
| Technologies |
Solid Carbide / Black ICE |
